How to Install the Hob
How to install the hob:
Overall dimensions of the hob: width 900mm depth 520mm
Worktop cut-out dimensions: width 870mm depth 490mm
1. Make the required hole in the
worktop. Before doing this, you must
check the instructions supplied with
any cooker hood to ensure that you
will have the required clearance. The

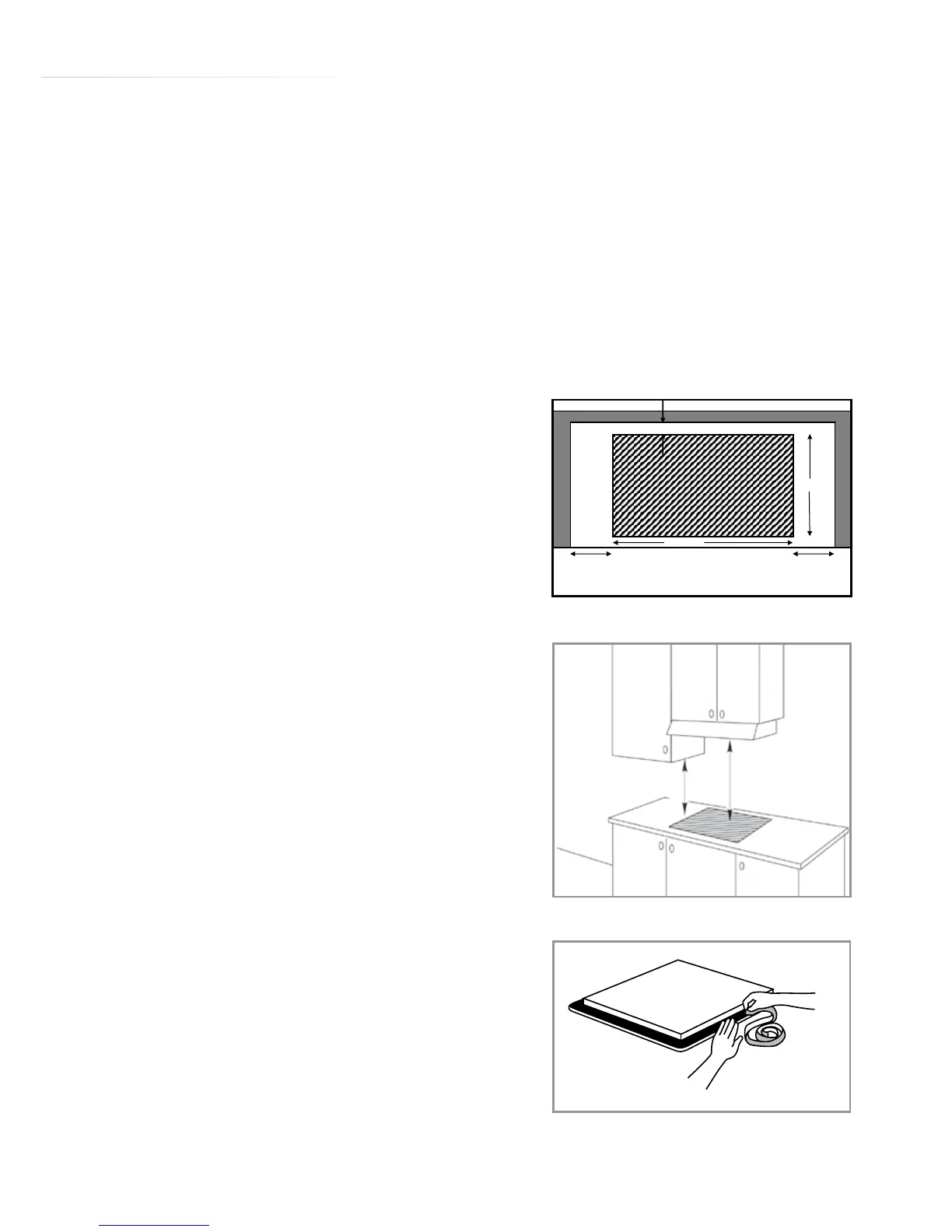

cut-out (Fig. 4) shows a 60mm gap
from the wall to the cut-out edge.
This makes the distance from the
hob, when fited, to the back wall
50mm. If a splashback/worktop
upstand is to be fitted, take this
into account when cutting the hole.
The minimum distance that the hob
should be positioned away from the
rear wall or splashback is 50mm.
2. Position the hob seal, as shown in
Fig. 6, ensuring that the ends meet
without overlapping. Do not use
silicone type sealant.
Fig. 5
400mm
650mm
Fig. 6
