CDA PC870 - Control Panel

11

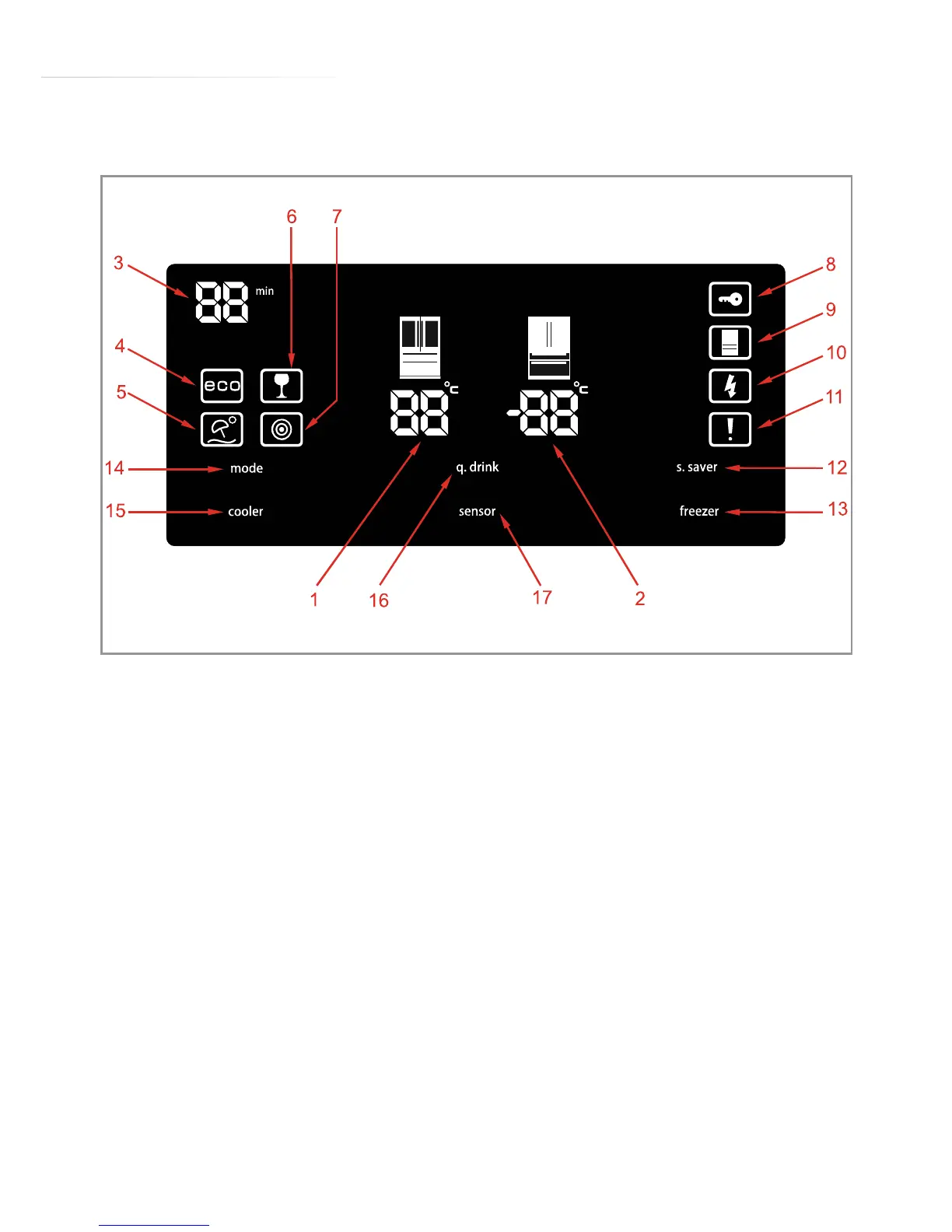

Control panel
1 - Fridge compartment temperature indicator
2 - Freezer compartment temperature indicator
3 - Quick-drink timer
4 - Eco mode indicator 11 - Alarm indicator
5 - Holiday mode indicator 12 - Screen saver sensor
6 - Quick-drink indicator 13 - Freezer sensor
7 - Eco light mode indicator 14 - Mode sensor
8 - Safety key lock indicator 15 - Fridge (cooler) sensor
9 - Demo mode indicator 16 - Quick-drink sensor
10 - Low voltage warning 17 - Eco light mode sensor
Fig. 3
