CDA RC9301 User Manual

36

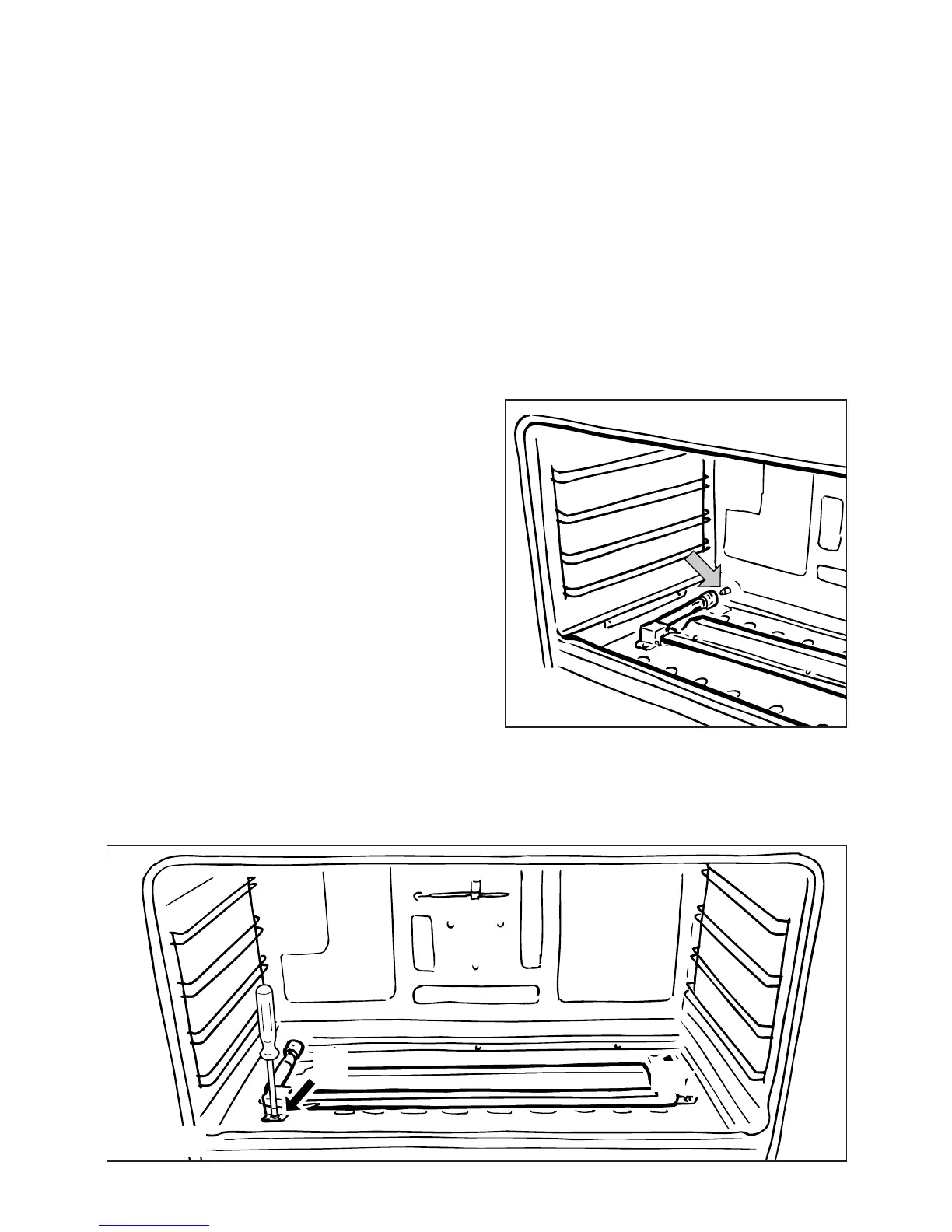

Replacement of the oven burner injector
According to the type of gas, the oven injector must be similarly replaced, as stated on
the “Table for the choice of the injectors”, operating as follows:
– remove the oven bottom.
– unscrew and remove the burner fixing screw A (fig. 40).
– slacken screw B (fig. 40).
– slip the burner itself from the oven (Fig. 41). Take care not to damage the wire to the
ignition electrode and the safety valve probe.
– remove the injector from the connection and replace it with the correct one (fig. 41).
Fig. 41
A
B
Fig. 40
