SETUP AND PROGRAMMING CHAPTER 3
CHAPTER 3
SETUP AND PROGRAMMING
CDI 5000-3 TORQUE CALIBRATION SYSTEM SETUP

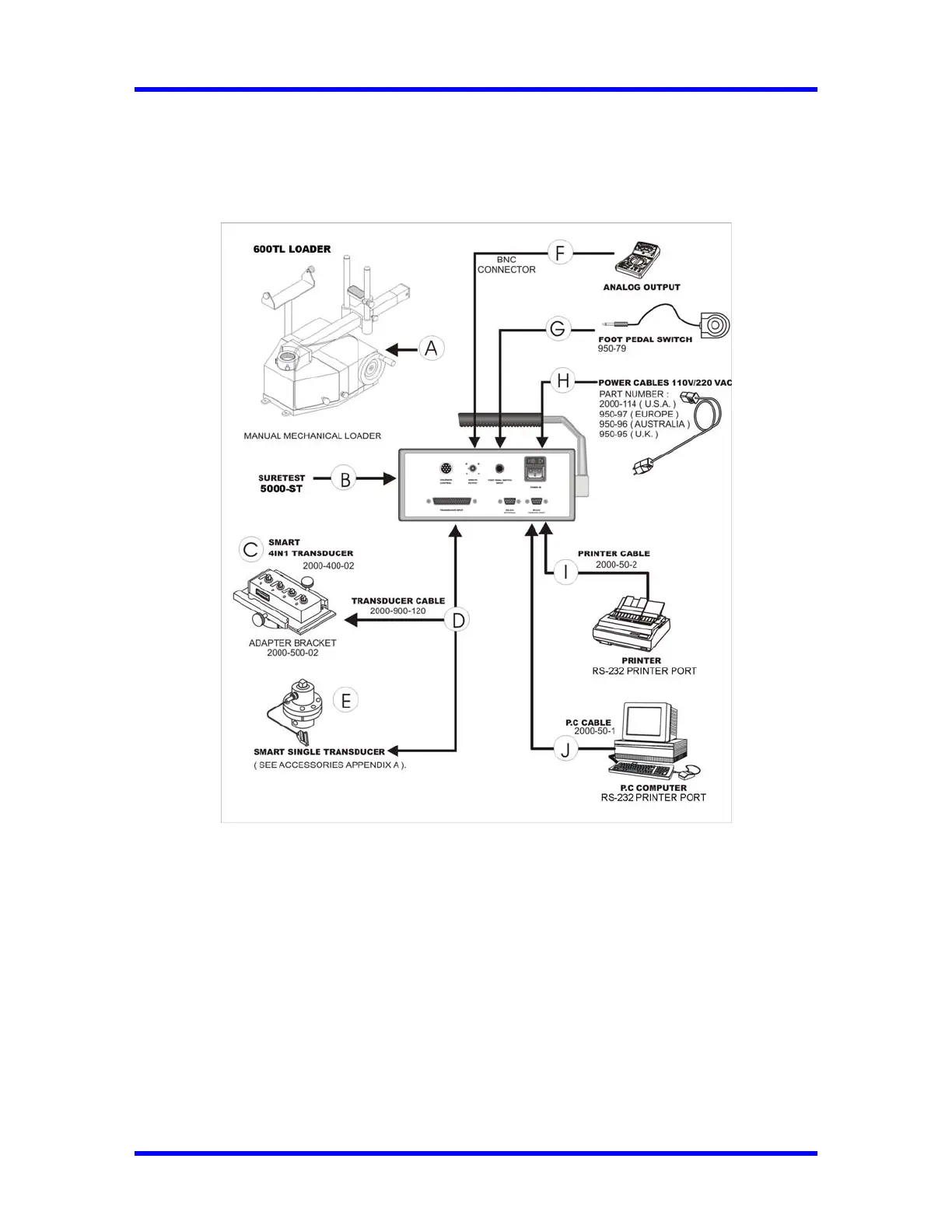

Figure 3-1: CDI 5000-3 Torque Tester/Calibrator/Loader Setup
Back panel connections
A - 600TL Manual Loader
B - SURETEST Base unit
C - Smart 4-in-1 Transducer & Bracket adaptor
D - Transducer cable
E - Smart Single Transducer
F - Analog Output
G - Foot pedal switch
H - Power cables (100/230 VAC)
I - Printer cable
J - Personal computer cable
Note: Cable (J) is connected to the Optional Port for software upgrades only.
3-1
