CALIBRATION CHAPTER 5

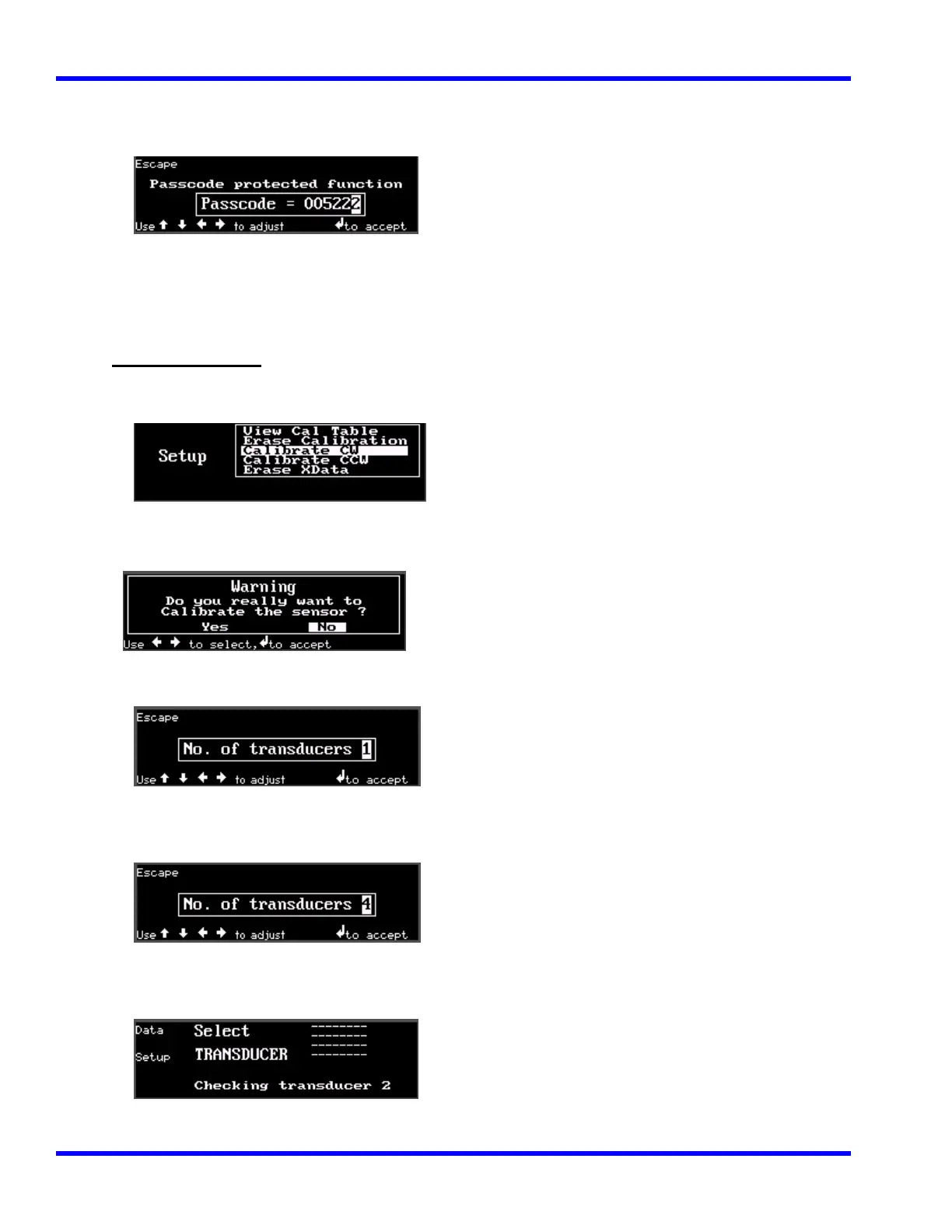

6. Enter the following code into the display using the Cursor Keys: 5222
( Left (←), Right (→) to select digit ; Up (↑), Down (↓) = increment/decrement value ; Enter (↵) to accept )
Calibration CW:
7. Select Calibrate CW. Press ENTER (↵).
A warning is displayed.
Select ‘
Yes’. Press Enter (↵) .
8. Using the Up (↑) or Down (↓) Cursor keys, enter “
1” for a single transducer,
or enter “4” for the 4-in-1 transducer.
9. Press ENTER (↵). The display reads:
Select transducer by applied torque on it, LED will lit.
5-8
