CDVI V3SR - Installation Guides; Outward Opening Door Installation

EN EN
V1SR - V3SR - V4SR - V5SR
Internal surface maglock
6 cdvigroup.com

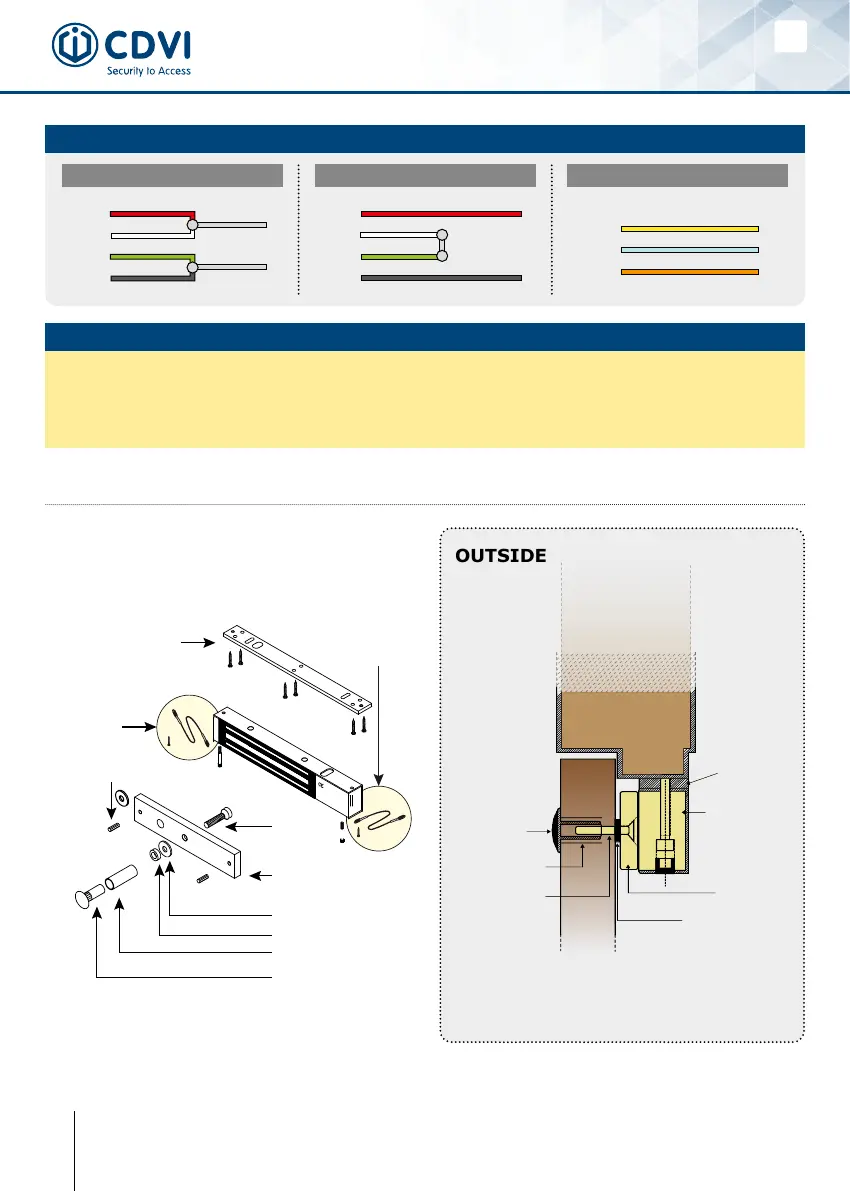

6] INSTALLATION (EXAMPLE: V3S SERIES)
DIRECT CONNECTION
12V DC 24V DC CONTACT
Red
Red
Yellow NC
Blue COM
Orange NO
+
+
White
White
-
-
Green
Green
Black Black
xing plate
Security
rope
Security
rope
Armature plate
M8
screw
Cap nut
Guide piece
Rubber washer
Roll pin
Steel washer
Rubber washer
Fixing plate
Door frame
Outwards opening
door (push door).
Electromagnetic
lock
Armature
plate
Cap nut
Guide piece
M8 screw
OUTSIDE
Door
Installation on an outward opening
door (Push door)
Check the jumper position before connecting the lock to the input current.
A wrong position could damage the lock. This type of damage is not covered
by the warranty.
IMPORTANT NOTE
