CDVI V3SR - Inward Opening Door Installation; Installation with Armature Housing

EN EN
V1SR - V3SR - V4SR - V5SR
Internal surface maglock
7cdvigroup.com
Electromagnetic lock
Armature plate
Adjustable

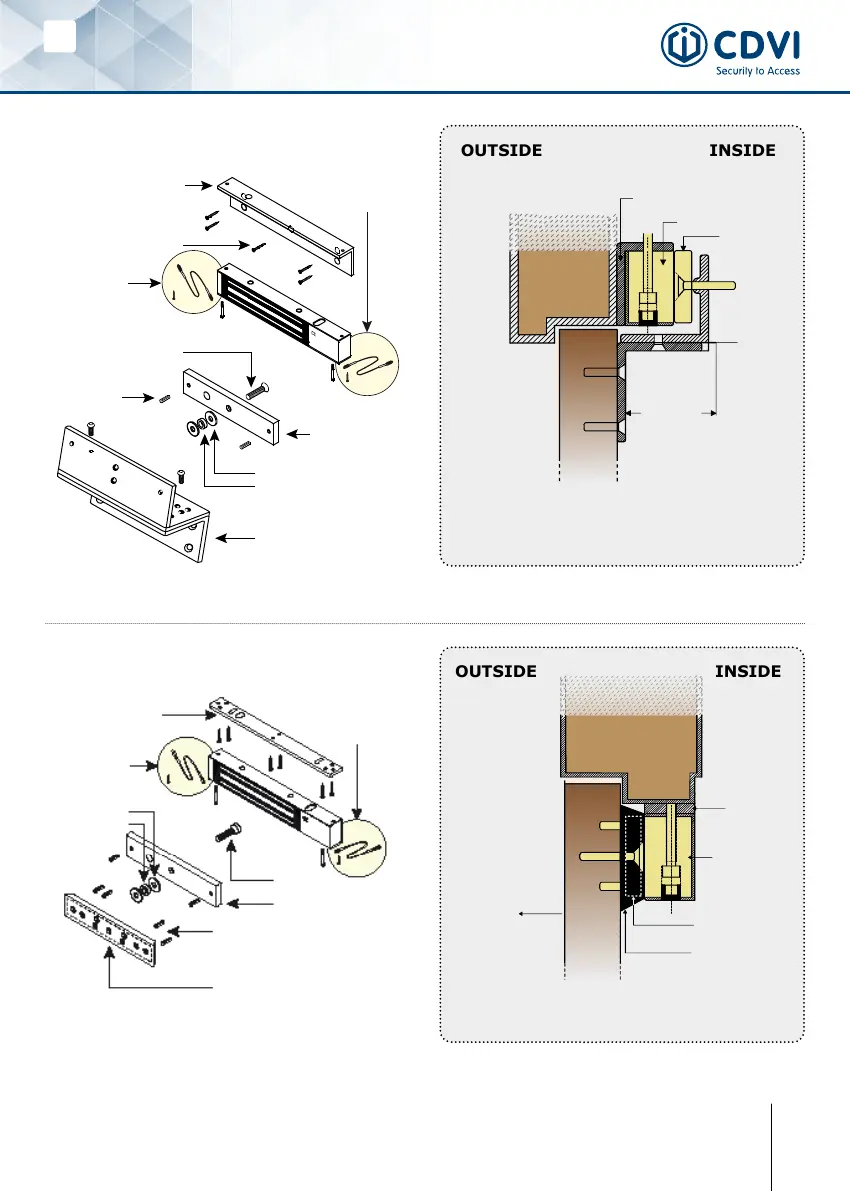

Inward opening door (Pull door)
(installed with “Z” and “L” brackets)
Z shaped bracket :
Z3Z4Z5
L shaped bracket :
- L3L4 (300 - 400 Kg),
- L5 (500kg).
L shaped bracket
Z shaped
bracket
Installation on an inward opening
door (Pull door)
Fixing screw
Rubber washer
Roll pin
Steel washer
Armature plate
M8 screw
DOOR FRAME
OUTSIDE
INSIDE
DOOR
7] INSTALLATION WITH ACCESSORIES
Fixing plate
Security
rope
Security
rope
Security
rope
Security
rope
Armature housing
Armature plate
Rubber washer
Roll pin
Steel washer
Armature
screw
Outwards opening door (push door).
(installed with armature housing)
OUTSIDE
INSIDE
Installation with an Armature
housing
Armature housing
AMA3 or AMA5
DOOR FRAME
Electromagnetic
lock
DOOR
EXT.
opening
