CDVI V3SR - Glass Door Installation with Brackets

EN EN
V1SR - V3SR - V4SR - V5SR
Internal surface maglock
8 cdvigroup.com
Fixing plate
Security
rope
Security
rope

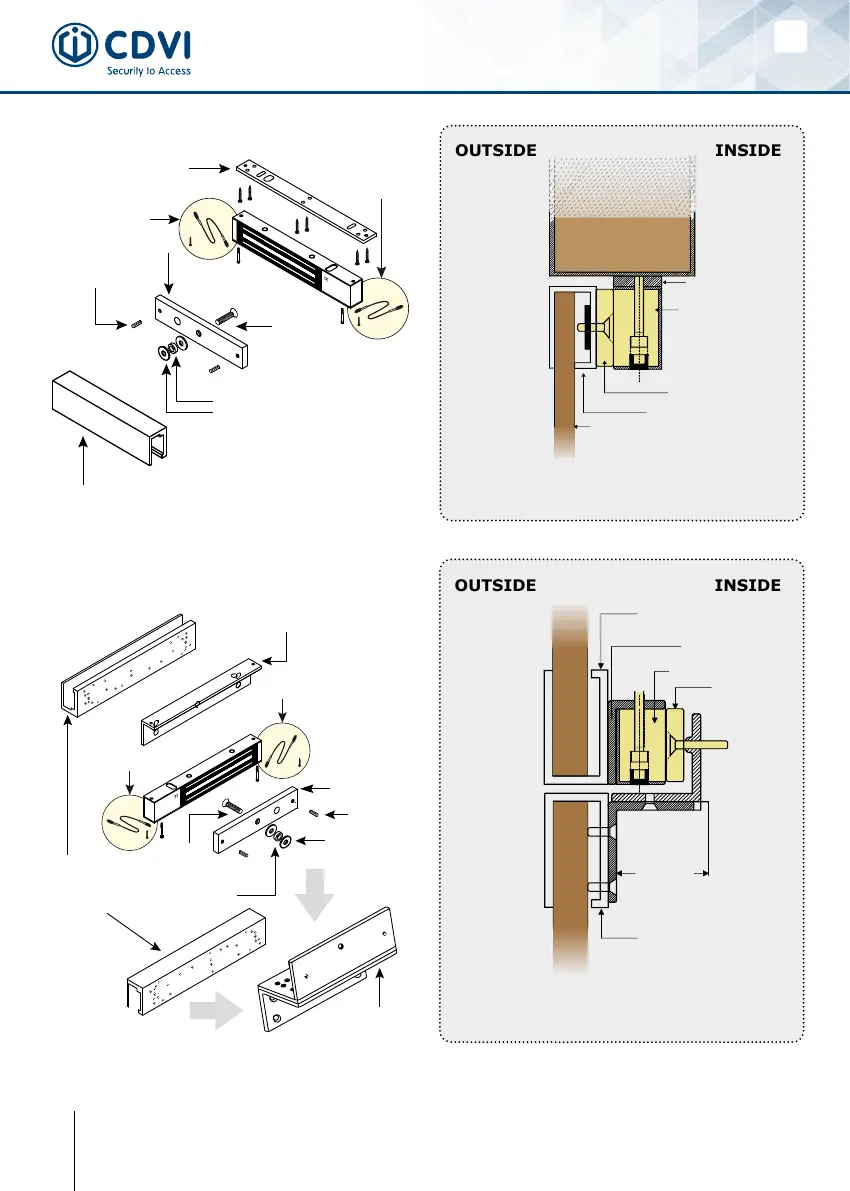

Armature housing for glass door
UBKU
Rubber washer
Roll pin
Steel washer
Armature
screw
Outward opening door (Push door)
(installed with UBKU brackets)
Installation with base for glass door
OUTSIDE
INSIDE
DOOR FRAME
Electromagnetic lock
Universal base for glass
door UBKU
DOOR
Fixing plate
Armature
plate
DOOR
GLASS
FRAME
Adjustable
UBKP
Inward opening door (Pull door)
(installed with “UBKP”, “L3L4L5”
and Z3Z4Z5 brackets)
Installation with base
for glass door
Universal
housing for
glass door
UBKP
Rubber washer
Steel washer
Armature
plate
Armature
screw
Security
rope
Security
rope
Roll pin
OUTSIDE
INSIDE
Z shaped
bracket Z3Z4Z5
L shaped bracket :
- L3L4 (300 - 400 Kg),
- L5 (500kg).
