X AC Line - Connection for the AC power cord.
Y Input - LINE IN (audio input) jacks, equipped with RCA connectors.
Input for any analog unit. No phono connection and no inlet for coaxial
digital outputs from CD-drives or other digital units.
Z Balanced CD - CD is using XLR connectors for balanced signal sources.
(1=Ground, 2=Hot, 3=Cold).
CD-Player with only RCA output connect to Aux1 or Aux2.
[ Tape rec . - LINE OUT (audio output) jacks. Recording-output for Cassette decks,
other tape recorder or MD-recorder.
\ Speaker - Power amplifier output terminals to connect 4-8 Ohm speaker.
All speaker terminals are active due to complete balanced circuit design.
Never connect any speaker terminal to ground.

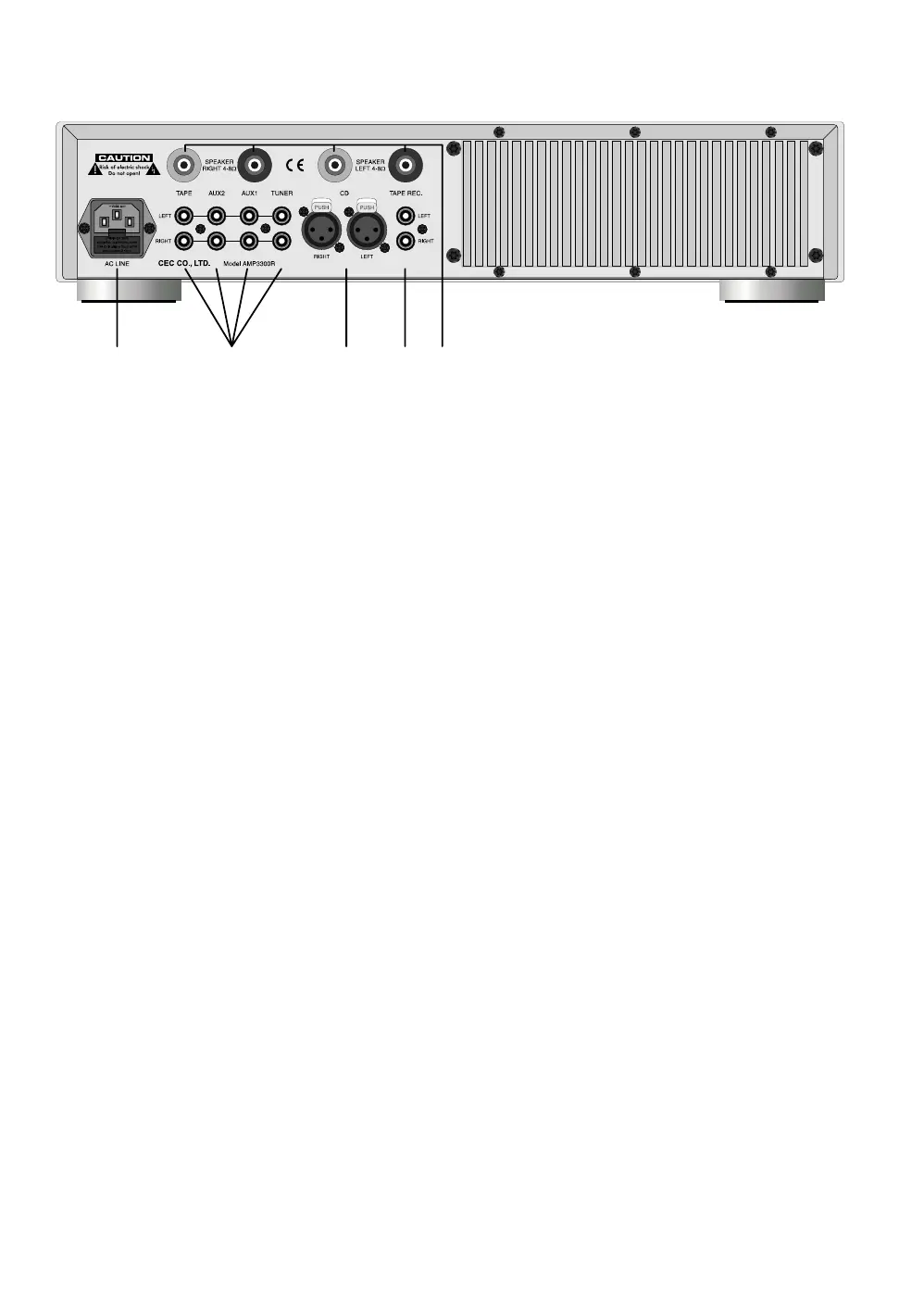

X Y Z[\
Rear Panel
