cec BD-2200 - Technical Specifications

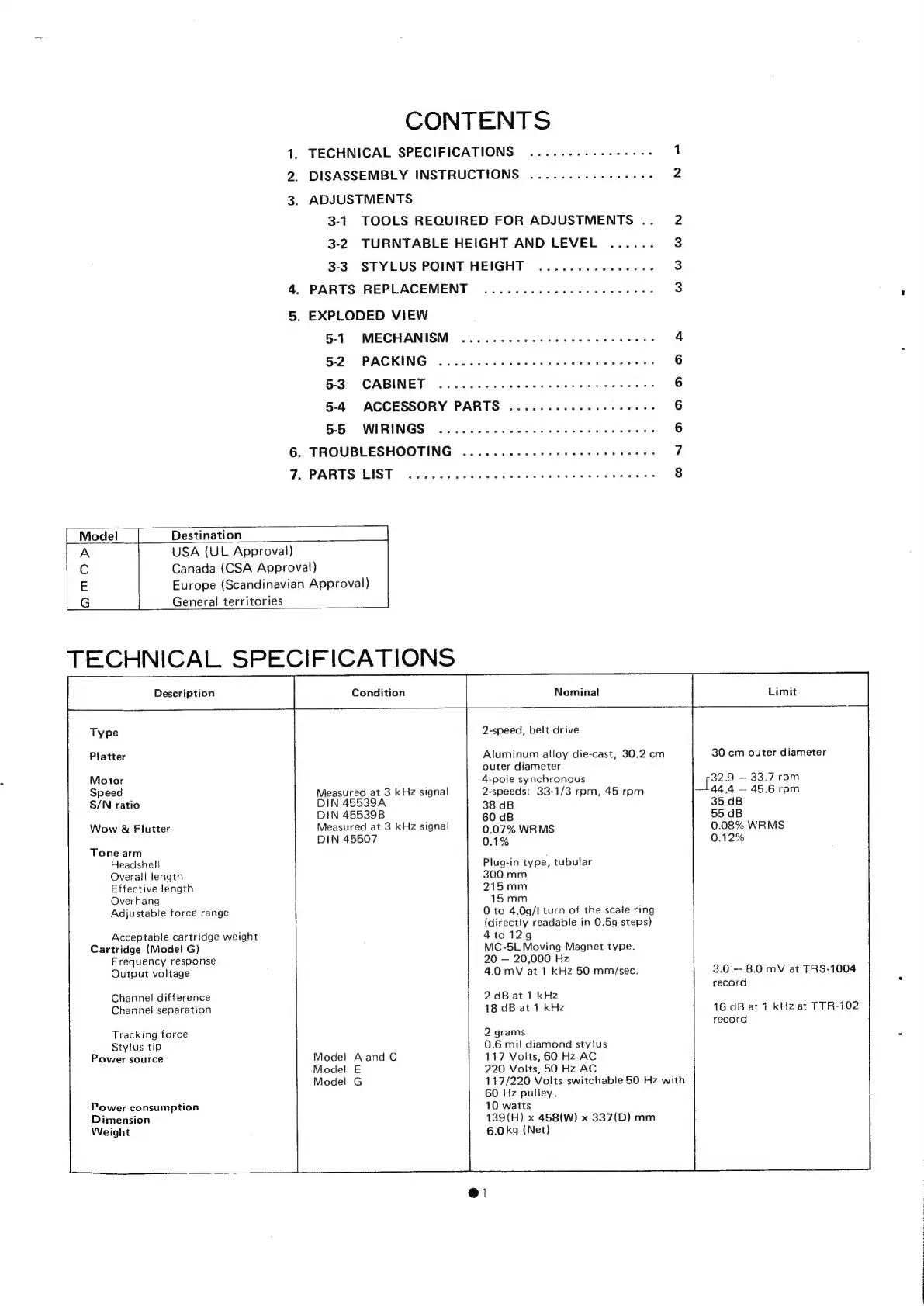

CONTENTS
1.
TECHNICAL
SPECIFICATIONS
.........--+-+--
1
DISASSEMBLY
INSTRUCTIONS
............----
2
ADJUSTMENTS
3-1 TOOLS REQUIRED FOR ADJUSTMENTS .. 2
3-2 TURNTABLE HEIGHT AND LEVEL ...... 3
3-3 STYLUS POINT HEIGHT ...............- 3
4. PARTS REPLACEMENT .........-00 ee eeeeueee 3
5. EXPLODED VIEW
5-1 MECHANISM ........... 00 eee eee eee eee 4
5-2 PACKING ....... eee cee eee eee 6
5-3 CABINET ........ ccc cece cece ee eeees 6
5-4 ACCESSORY PARTS ............-20005- 6
5-5 WIRINGS ....... 0. cee cece eee eens 6
6. TROUBLESHOOTING ......... 2... ee eee eee eens 7
7. PARTS LIST 2... cece cece eee eee teens 8
Destination
Type
Platter
Motor
Speed
S/N ratio
Wow & Flutter
Tone arm
Headshell
Overall length
Effective length
Overhang
Adjustable force range
Acceptable cartridge weight
Cartridge (Model G)
Frequency response
Output voltage
Channel difference
Channel separation
Tracking force
Stylus tip
Power source
Power consumption
Dimension
Weight
USA (UL Approval)
Canada (CSA Approval)
Europe (Scandinavian Approval)
General territories
TECHNICAL SPECIFICATIONS
Nominal
2-speed, belt drive
Aluminum alloy die-cast, 30.2 cm
outer diameter
4-pole synchronous
2-speeds: 33-1/3 rpm, 45 rpm
Measured at 3 kHz signal
DIN 45539A 38 dB
DIN 45539B 60 dB
Measured at 3 kHz signal 0.07% WRMS
DIN 45507 0.1%
Plug-in type, tubular
300 mm
215mm
15mm
0 to 4.0g/I turn of the scale ring
(directly readable in 0.5g steps)
4to12g
MC-5L Moving Magnet type.
20 — 20,000 Hz
4.0 mV at 1 kHz 50 mm/sec.
2 dB at 1 kHz
18 dB at 1 kHz
2 grams
0.6 mil diamond stylus
Model A and C 117 Volts, 60 Hz AC
Model E 220 Volts, 50 Hz AC
Model G 117/220 Volts switchable 50 Hz with
60 Hz pulley.
10 watts
139(H) x 458(W) x 337(D) mm
6.0 kg (Net)
@1
30 cm outer diameter
32.9 — 33.7 rpm
mbry ~— 45.6 rpm
35 dB
55 dB
0.08% WRMS
0.12%
3.0 — 8.0 mV at TRS-1004
record
16 dB at 1 kHz at TTR-102
record
