cec CD3300R - Rear Panel Connections and Outputs

5
ANALOG OUTPUT
X BALANCED - Balanced analog XLR output. Pinning: 1=Ground, 2=Hot, 3=Cold.
Y RCA - Unbalanced standard analog output for connecting an amplifier.
Balanced XLR connections are first choice!
DIGITAL OUTPUT

Z TOSLINK - Optical digital output for Toslink optical fibre connection
[ COAXIAL - Standard digital (SPDIF) output. The cable impedance should be 75 Ohm.
\ AES/EBU - Balanced digital output according to the AES/EBU standard. The highest
quality link to connect CD3300R with other compatible digital audio device.
The cable impedance should be 110 Ohm.
Pinning: 1=Ground, 2=Hot, 3=Cold.
AC-POWER

] AC-POWER - AC Power connector.

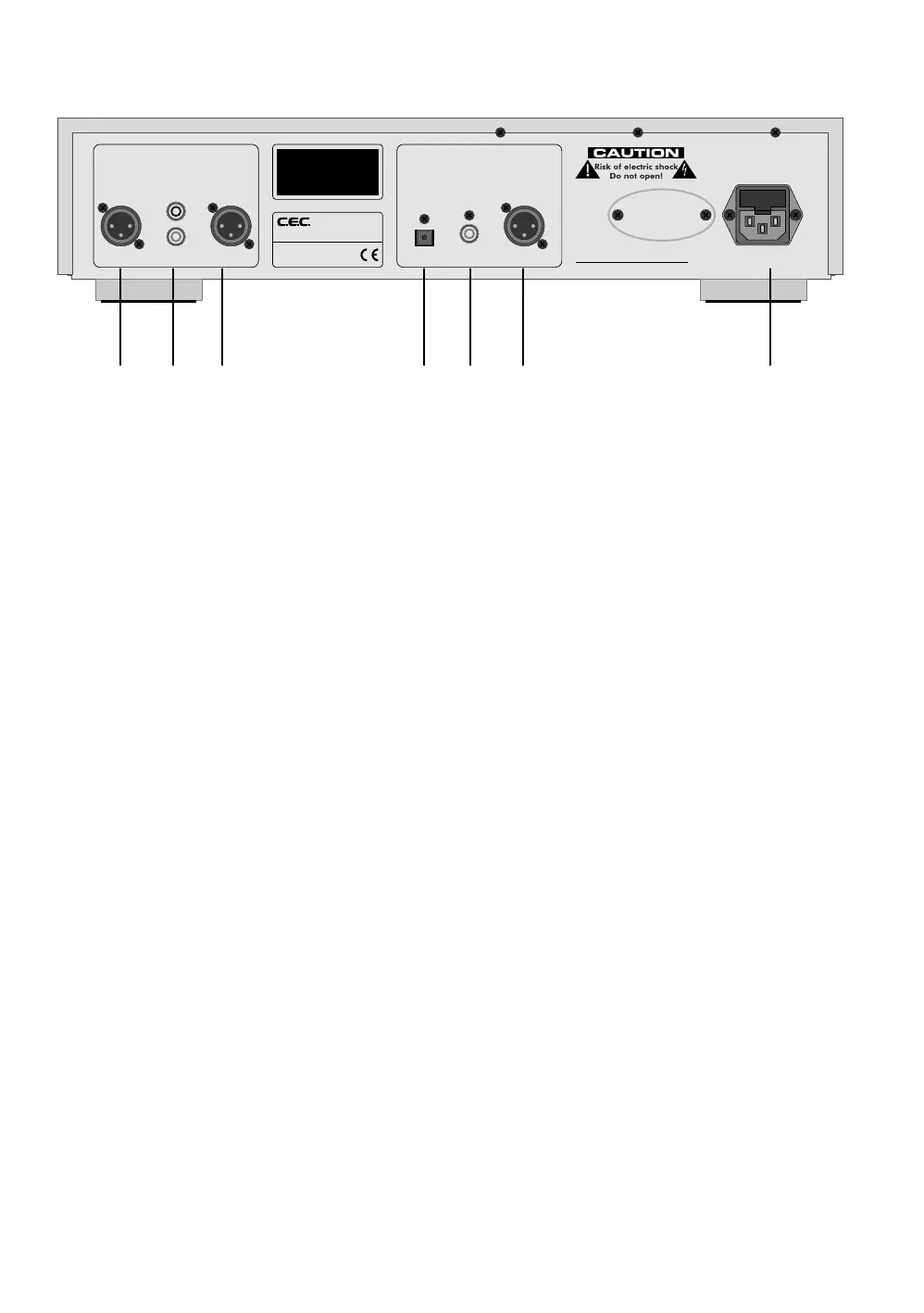

Rear Panel Functions
