9

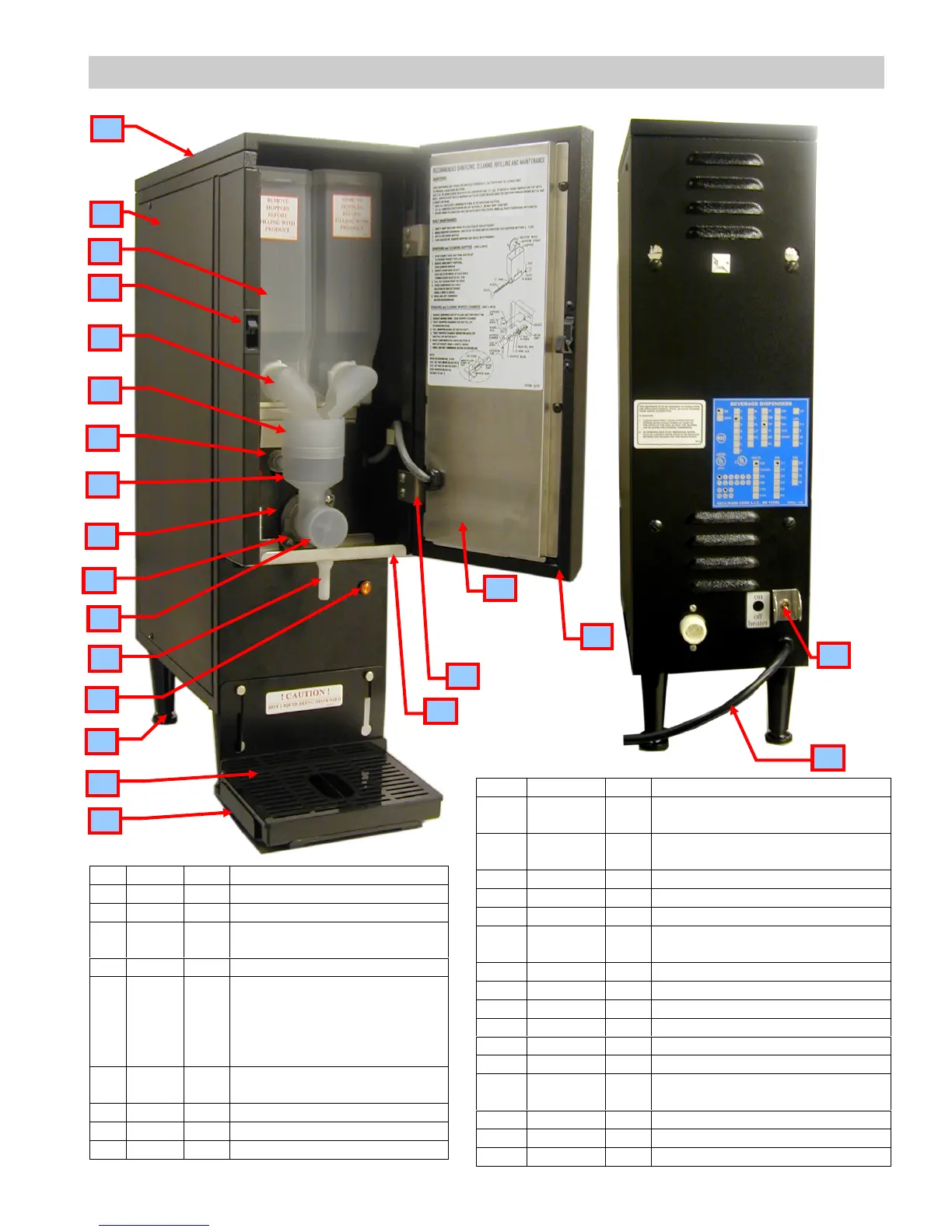

EXTERNAL COMPONENTS IDENTIFICATION
ITEM P/N QTY DESCRIPTION
10 CD65A
CD66A
1
2
Chamber Mount
Chamber Mount Grommet
11 CD63A
CD353
1
1
Whipping Chamber
Whip Blade W/2flats
12 M884A 1 Extension Tube
13 C002A 1 Pilot Light Amber, for heater
14 M172S 1 Legs 4"Adj (Set Of 4)
15 75014
75015
1
1
Molded Drip Tray
Grill
16 RE73A 1 Drip Tray Platform
17 SS46A 1 Facia Bottom Cap
18 K618A 2 Hidden Hinge S/S
19 SS49A 1 Inside Door Panel
20 SS48A 1 Door Housing
21 C032S 1 Line Cord
22 L069A 1
1
Heater Switch in Back of Machine
Power Sw. in Hopper Compartment
L735A 1/2/3 Dispense Switch, on Front Door
L299A 1 Rinse Switch in Hopper Compartment
K178A 1 Hose Nut Ass’y [not shown]
ITEM P/N QTY DESCRIPTION
1 SS42A 1 Top Cover
2 SS51A 2 Side Panels
3 CD161
CD155
1
2/3
Hopper 8lb GB1
Hopper 4lb GB2, GB3
4 M705A 1 Door Latch
5 CD70A
CD234
CD246
CD374
CD373
1
1
1
1
1
Product Guide GB1, GB3
Product Guide Right GB2
Product Guide Left GB2
Product Guide Right GB3
Product Guide Left GB3
6 CD61A
CD254
1
1
Steam Deflector GB1, GB2
Steam Deflector GB3
7 CD67A 1 Mix Bowl Socket
8 CD137 1 Mixing Chamber
9 CD124 1 Slinger Disk
1
2
4
5
7
6
8
9
1
0
1
1
1
2
1
3
1
4
1
5
1
6
2
2
2
1
3
18
19
17
20
