Cecilware GB1CP - Internal Components Identification

8

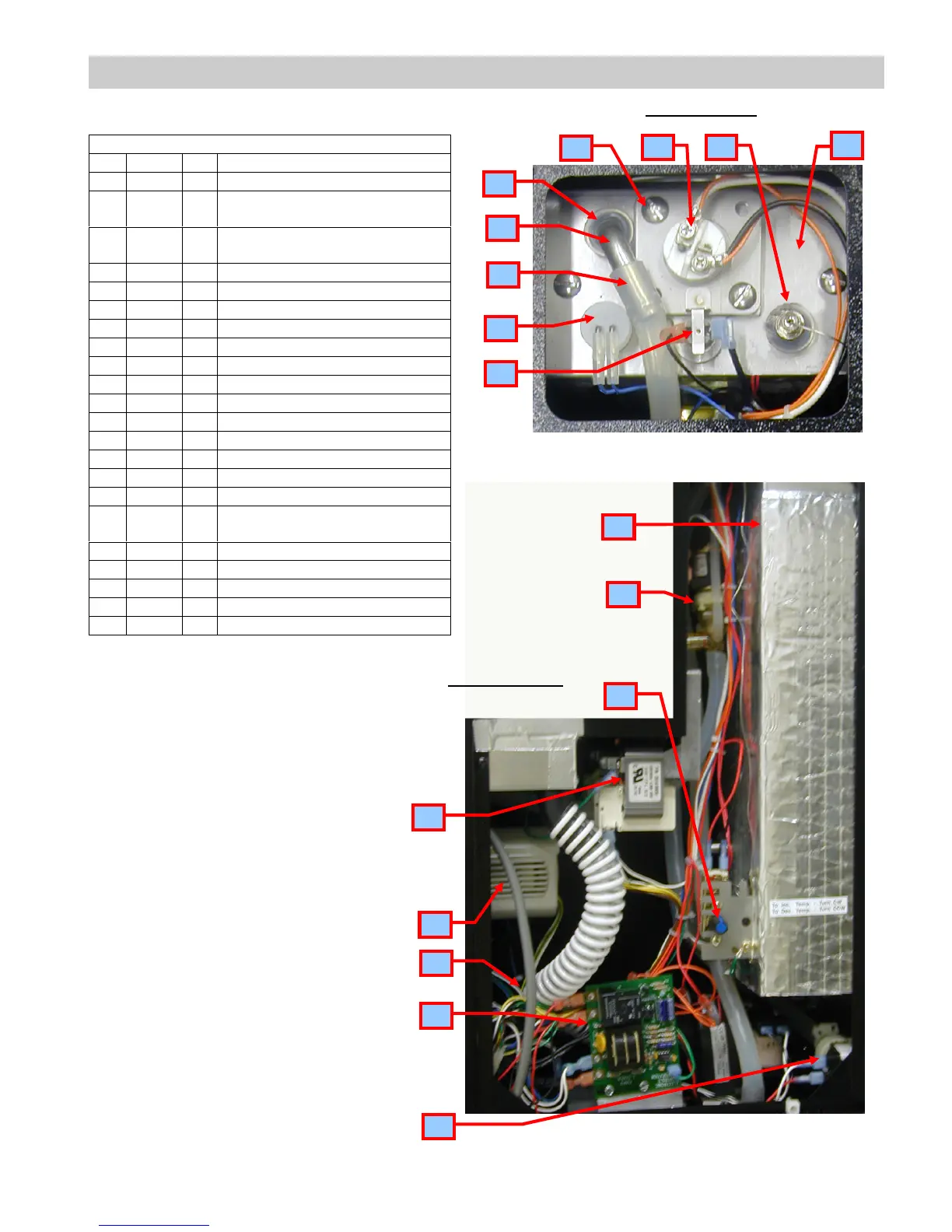

INTERNAL COMPONENTS IDENTIFICATION
TANK ASSEMBLY SK89Q
ITEM P/N QTY DESCRIPTION
1 SK88A 1 Tank Top
2 L681A
M008A
1
1
Thermostat & Probe
Thermostat Knob
3 G267A
MO18A
1
1
Heater 120v 1700w
Gasket, Tank Heater
4 P446A 4 1/4-20x5/8 SS SL Hex Washer Hd Scr
5 M461A 6 Silicone Seal (.466 Id)
6 K525A 3 Elbow 90° Ss
7 M326A 23” Hose - Overflow
8 K695Q 1 Dual Probe Sub-Assy
9 L573A 1 Hi-Limit 220° F
10 SK89A 1 Tank Weldment
11 L467A 1 Dispense Valve
12 M324A 6” Hose to Dispense Valve
13 CD175 1 Auger Motor
14 CD350 1 Whipper Motor
15 CD56A 1 Suction Fan
16 L690A 1 Dual Level Control Hi-Lo
17 CD257
K491B
1
1
Inlet Valve 110V
Water Inlet Connector
1
5
4
3
2
6
8
9
7
5
1
0
1
1
1
5
1
3
1
4
1
6
1
7
Tank
T
op
View
Open Side View
