3. PRODUCT ASSEMBLY
The fan is packed disassembled and must be properly assembled following the instructions in
this manual in order to ensure its correct operation.
WARNING:
• Do not operate the product unless it is completely assembled and always operate it in an
upright position to avoid injuries and accidents.
• Take the product out of the box and make sure all its components are in good conditions.
If there is any part missing or damaged, contact the Technical Support Service of Cecotec
immediately.

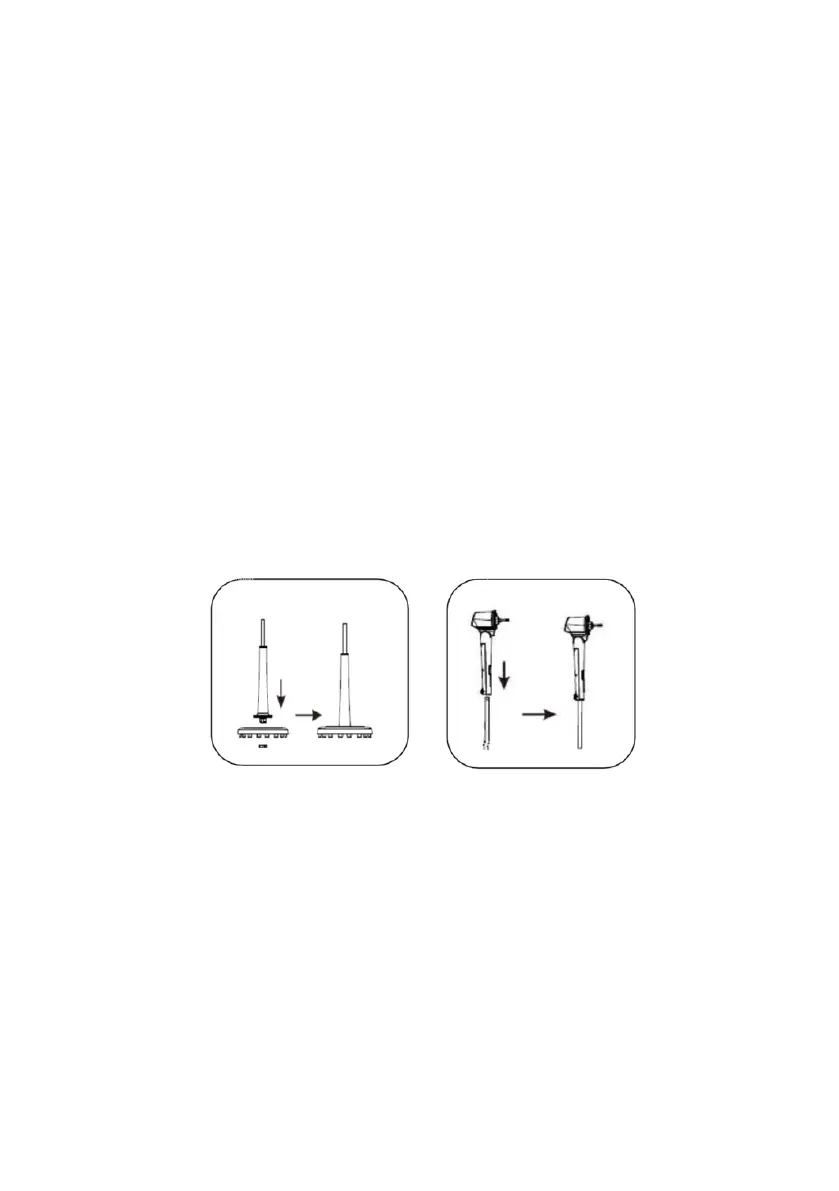

1. Use the screws and the Fixing plate to assemble the fan support to the base. Pull the height-
adjustment bar out from the fan’s support to the desired height and then use the height fixing
wing screw to lock it.
2. Place the fan body on top of the support element. The fan support must be introduced inside
the fan body in such way that the whole device is stable. Use the fastening wing screw to fix
tightly both parts.
3. Install the back grid on the motor shaft and use the back grid fixing nut to fix it tightly.
4. Place the large blades in their position making sure the grooves in its centre match the ones
on the back grid fixing nut. Then, place the smaller ones next and screw them anticlockwise to
fix them securely.
5. Lastly, install the front grid in its position and use the grid ring to hold both grids together.
Fasten the ring so that it is properly attached.
