Cedar Summit F25630 - Page 105

Step 30: Final Swing Post Assembly
Hardware
Pre-drill all holes using a 3/16” drill bit before installing the lag screws.
Note: Tighten all bolts from Step 28 series before installing lag screws.
A:Attach1(LS9)5/16x4-3/4”LagScrew(withatwasher)intoeach(282)SWPost,asshowning.30.1.
B:Attach1(LS9)5/16x4-3/4”LagScrew(withatwasher)intoremainingholeoftheHeavyG-Bracketinto
(270)EngineeredSWBeam.(g.30.1)
3 x 5/16 x 4-3/4” Lag Screw
(5/16” at washer)
LS9
282
270

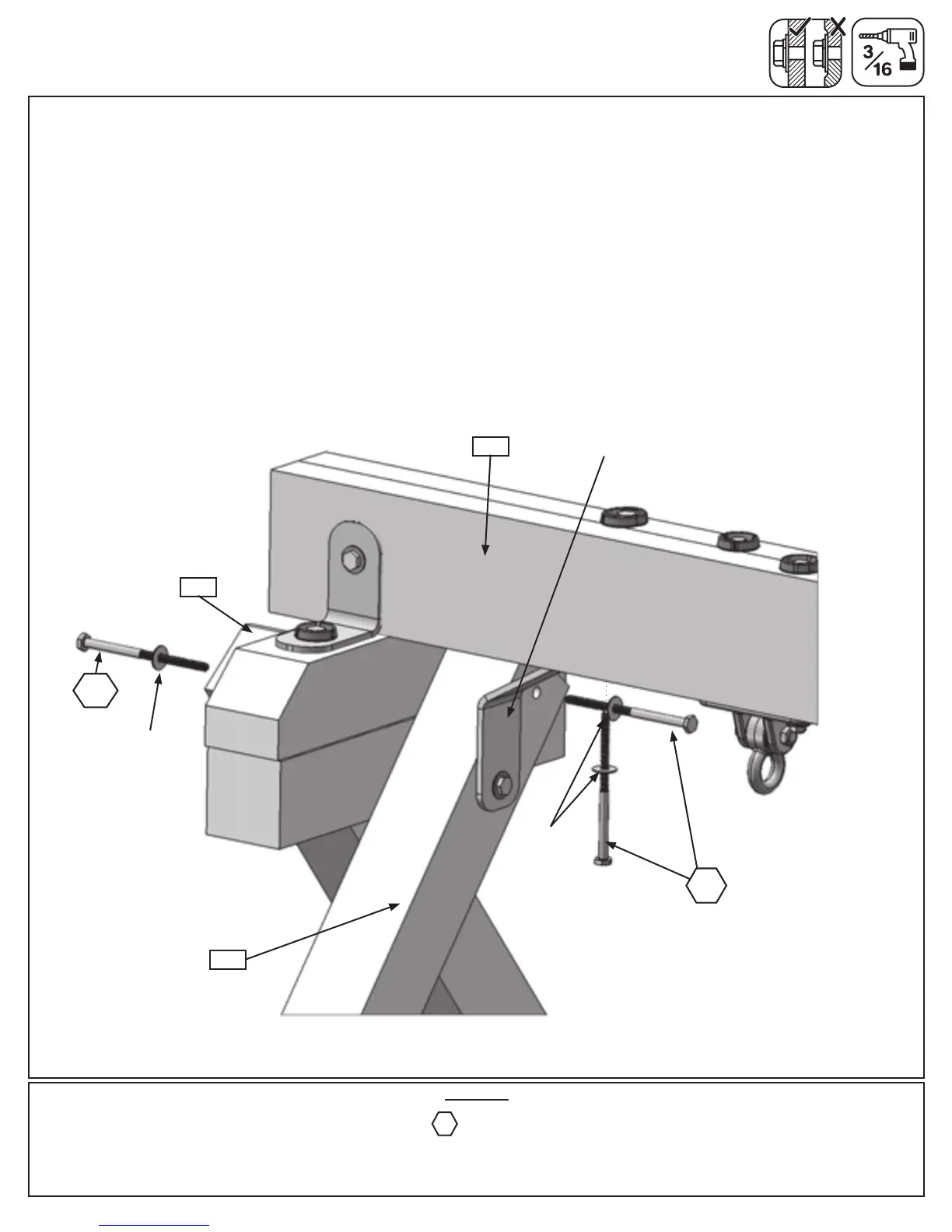

Fig. 30.1
5/16”Flat
Washer
282
Heavy
G-Bracket
LS9
5/16”Flat
Washer
LS9
