Step 1: Picnic Table Assembly
Part 7

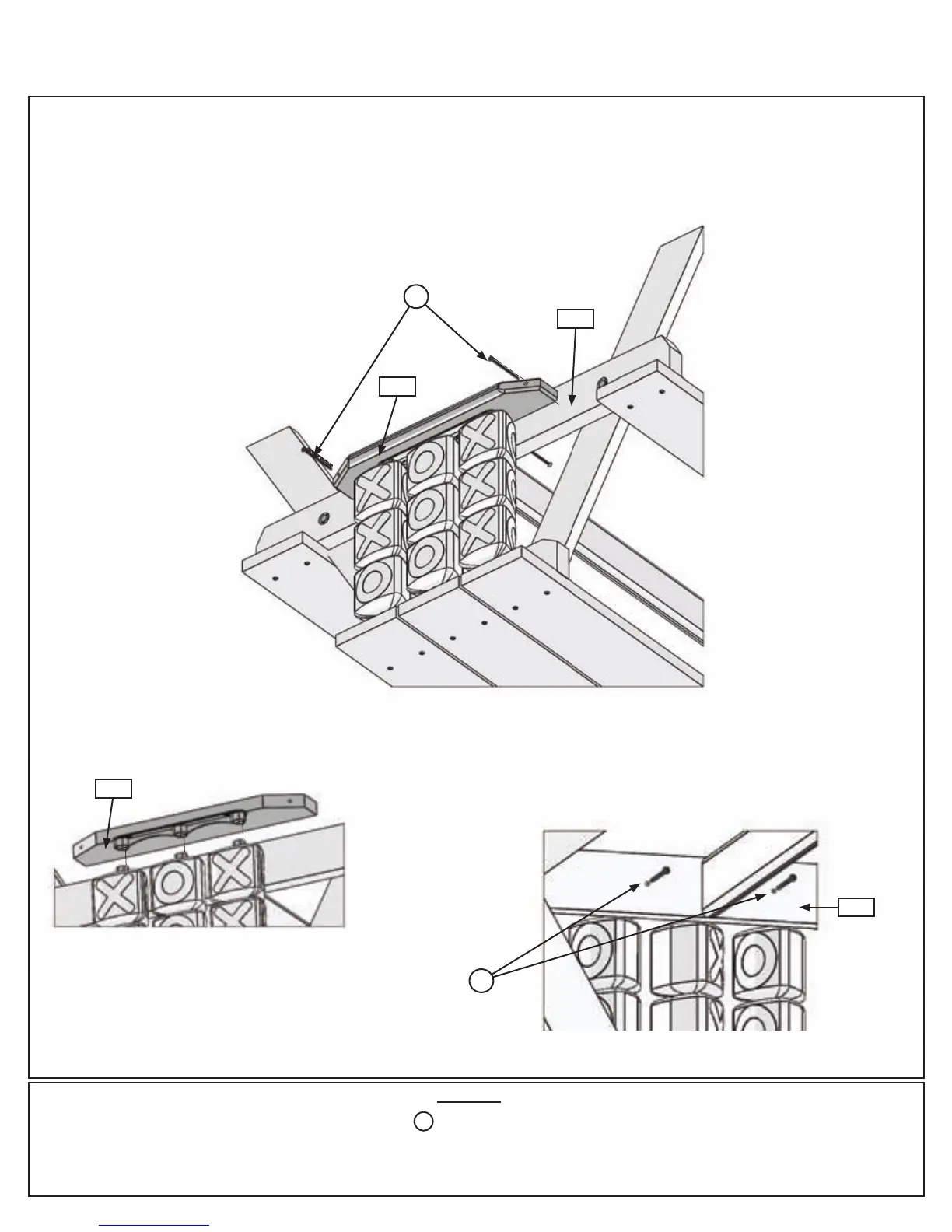

N: Tabletopshouldbeonaat,levelsurface.Place(017)TTTBottomwithTubeMountovertoptheTicTacToe
assembly(g.1.15)thenattach(017)TTTBottomto(012)SupportSeatwith4(S4)#8x3”WoodScrews,2from
theoutsideand2fromtheinsideasshowning.1.16and1.17.MakesureTicTacToePostsaresecureand
tightineachTubeMount.

Note: The Tic Tac Toe Drums should move with ease without any obstructions.
4 x #8 x 3” Wood Screw
Hardware
S4
017
Fig. 1.15
Outside View
S4
