Cedar Summit F25630 - Page 38

2 x Wall Tie FSC 5/4 x 4 x 67-1/2”
2 x Long Wall Tie FSC 5/4 x 4 x 68-3/4”
2 x Joist Side FSC 2 x 4 x 70-15/16”
Step 4: Swing Side Wall Panel Assembly
Part 4

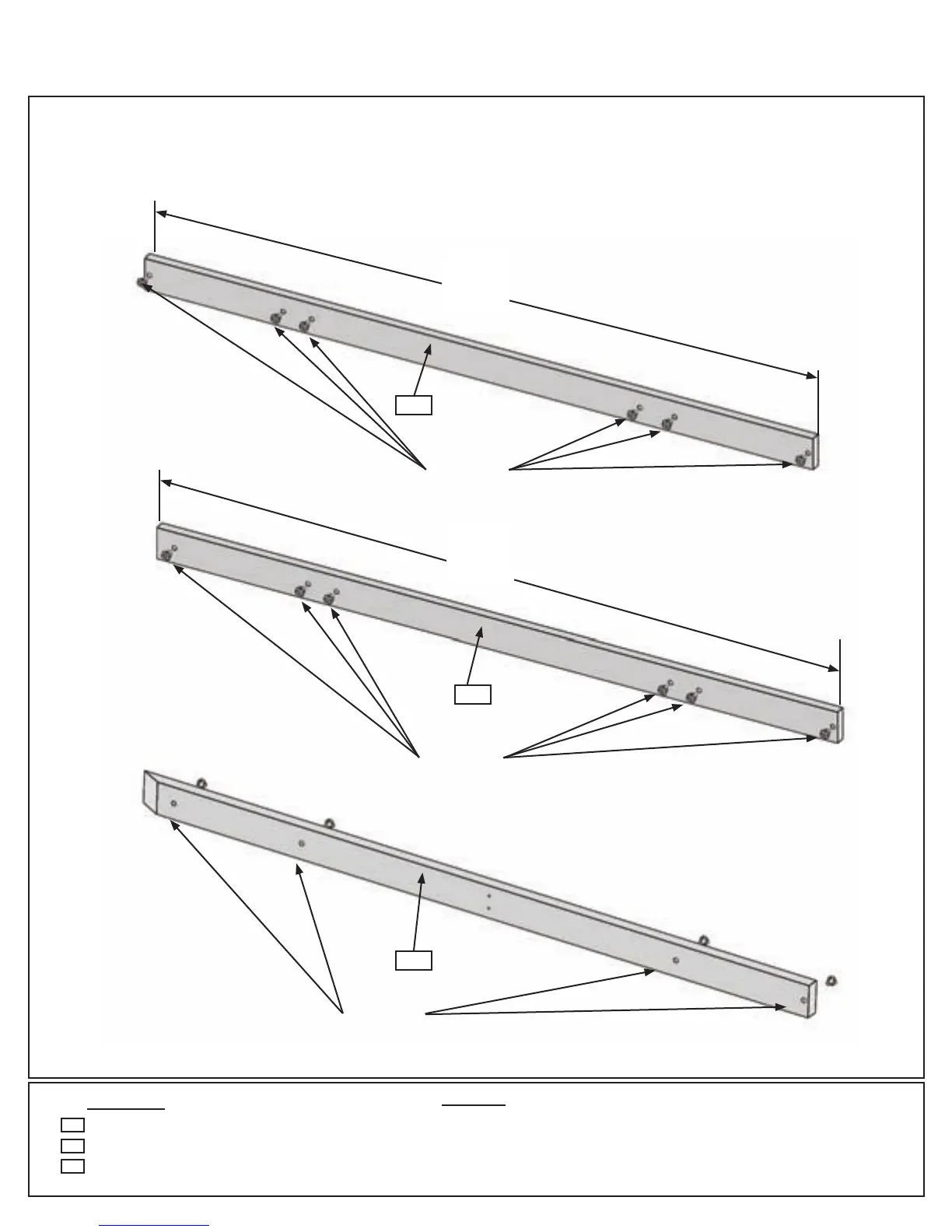

H:Install6-5/16”t-nutsinboth(041)WallTiesandboth(042)LongWallTiesasshowning.4.8and4.9.
I:Install4-5/16”t-nutsinboth(043)JoistSidesonthelongatsideasshowning.4.10.
Wood Parts
Hardware
043
042
041
Fig. 4.8
041
5/16”T-Nut
Fig. 4.9
Fig. 4.10
042
043
67-1/2”
68-3/4”
32 x 5/16 T-Nuts
5/16”T-Nut
5/16”T-Nut
