Cedar Summit F25630 - Page 42

2 x 5/16 x 2-1/8” Wafer Bolt
(5/16” at washer)
Hardware
Step 6: Front Wall Assembly
Part 1
1 x Half Panel FSC 1-1/4 x 26-7/16 x 36”
060
Fig. 6.3
030
Fig. 6.2
Wood Parts

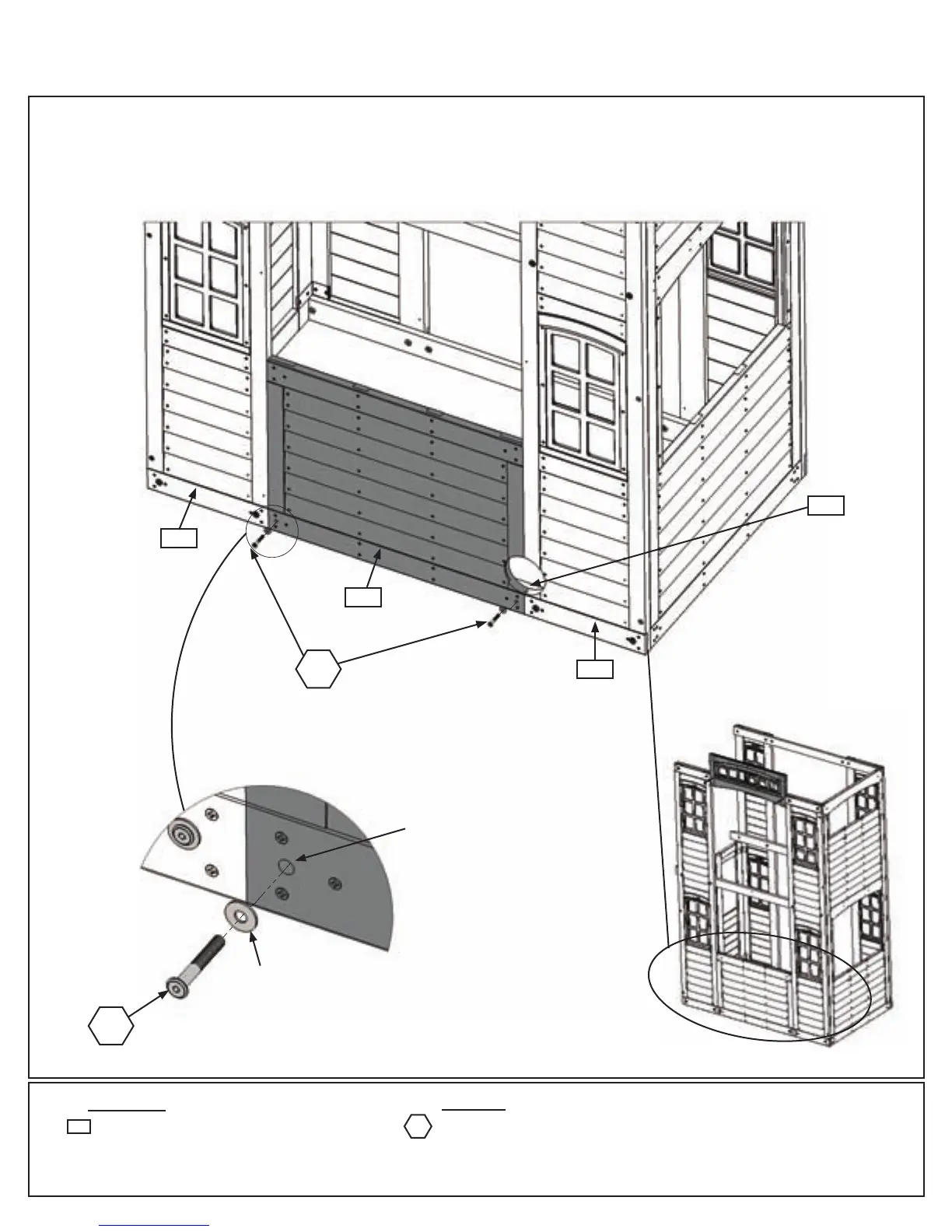

A:Fit1(060)HalfPanelinbetweentheSwingandDoorWallAssembliesonthefrontsidesotheopenbolt
holesareclosertotheground.Looselyfastentothe(060)HalfPanelto(041)WallTiewith2(WB9)5/16x
2-1/8”WaferBolts(with5/16”atwasher-t-nutspreviouslyinstalled).(g.6.1,6.2and6.3).
060
030
5/16”Flat
Washer
Door Wall
Swing Wall
Front
WB9
NoticeholeinHalfPanel
istowardsground.
Fig. 6.1
041
WB9
WB9
