Cedar Summit F25630

To Next Page

To Previous Page

Other Parts

2 x Flat Panel Bracket

030

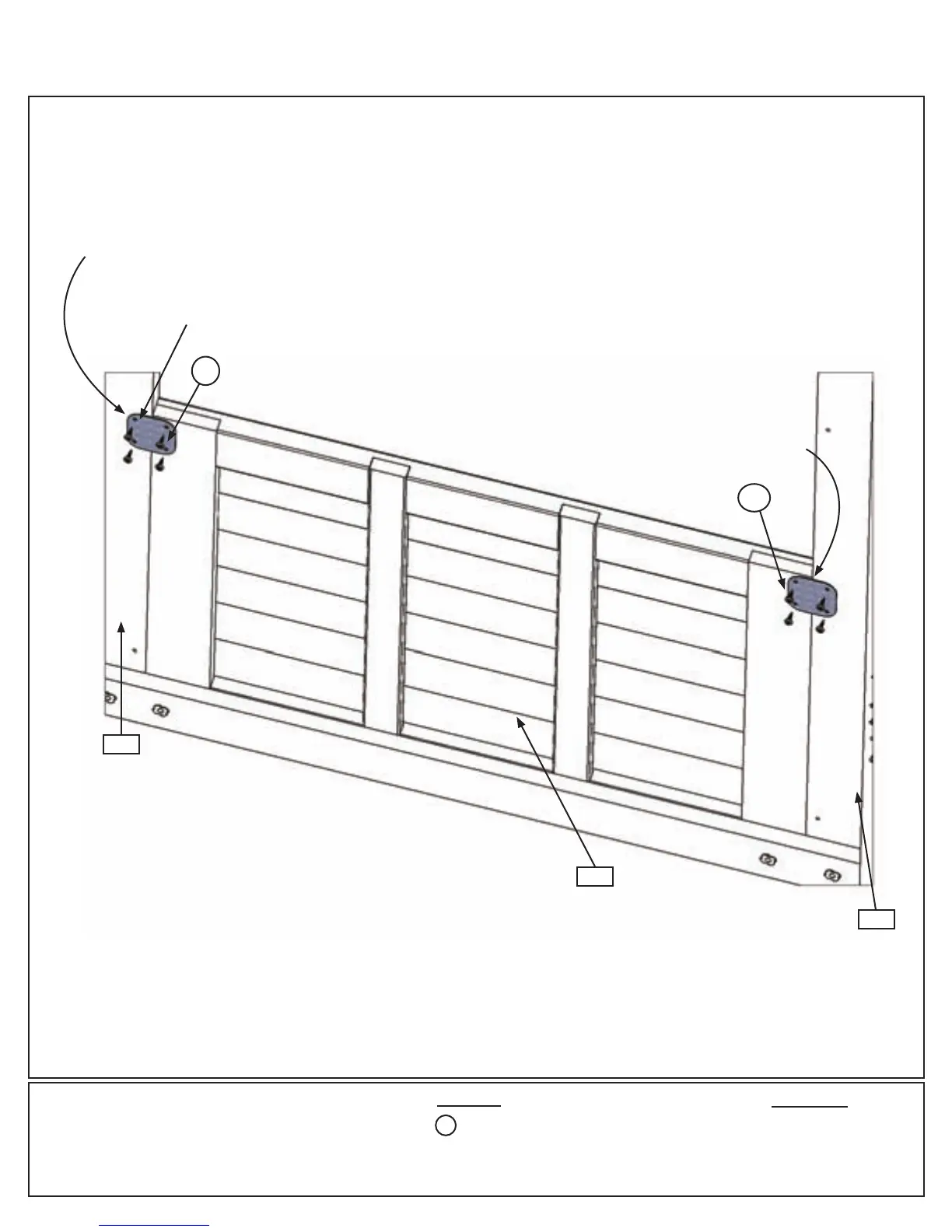

Fig. 6.7

Step 6: Front Wall Assembly

Part 4

E:Ontheinsideoftheassemblyattach(060)HalfPaneltoeach(030)NarrowWindowPanelusing2FlatPanel

Bracketswith4(S8)#12x3/4”PanScrewsperbracket.(g.6.7)

060

030

x4

Front Side

Inside View

FlatPanelBracket

BracketcannotberaisedabovethetopoftheHalfPanel.

Hardware

8 x #12 x 3/4” Pan Screw

 45  support@cedarsummitplay.com

Cedar Summit F25630 - Page 45
