Cedar Summit F25630 - Page 46

Hardware
Fig. 7.2
Fig. 7.3
030
030
WB9
2 x 5/16 x 2-1/8” Wafer Bolt (5/16” at washer)

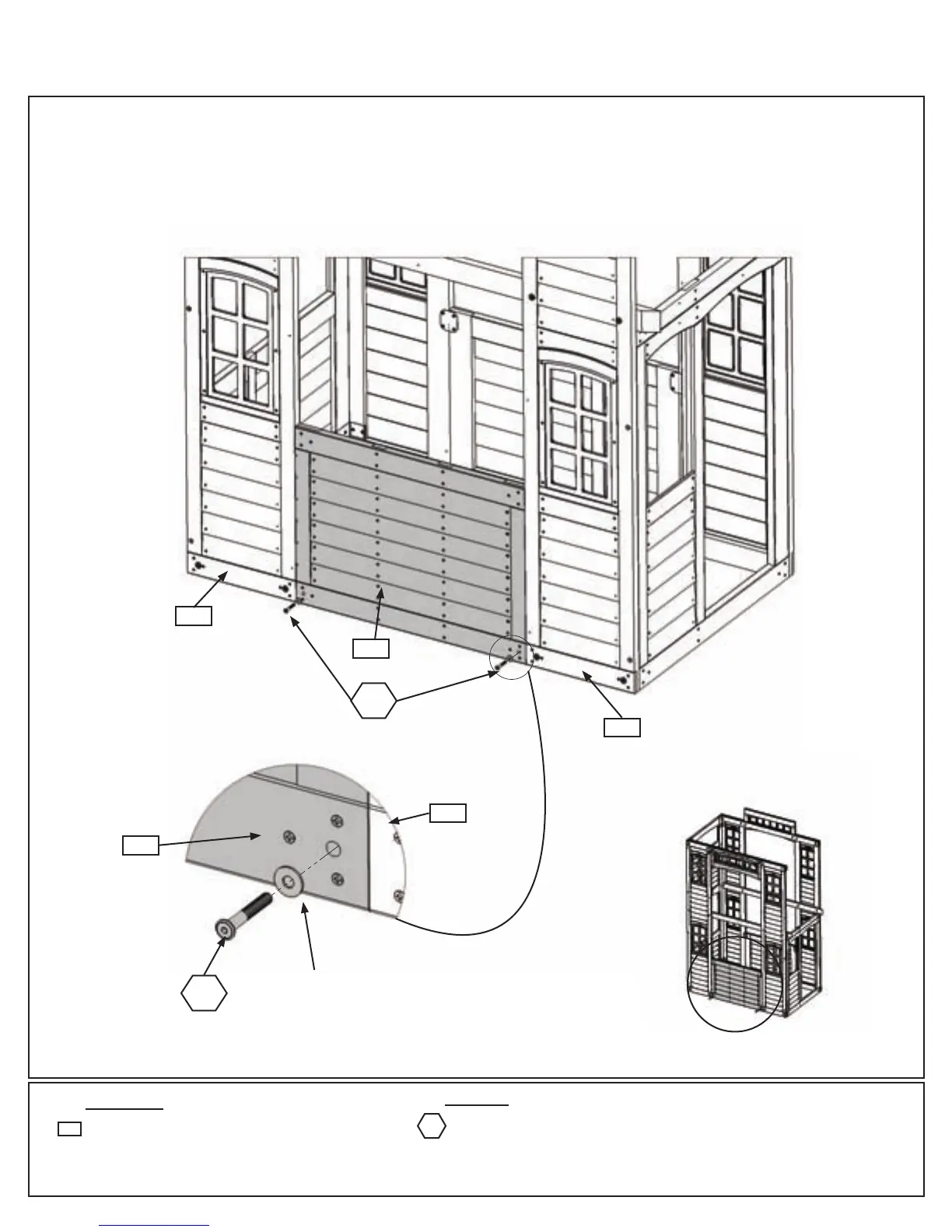

Step 7: Back Wall Assembly
Part 1
A:Place1(060)HalfPanelinbetweentheSwingandDoorWallAssembliesonthebacksidesotheopenbolt
holesareclosertotheground.Looselyfasten(060)HalfPanelto(041)WallTiewith2(WB9)5/16x2-1/8”
WaferBolts(with5/16”atwasher-t-nutspreviouslyinstalled).(g.7.1,7.2and7.3).
060
WB9
060
030
Back
Door Wall
Swing Wall
5/16”Flat
Washer
1 x Half Panel FSC 1-1/4 x 26-7/16 x 36”
Wood Parts
060
Fig. 7.1
WB9
