Cedar Summit F25630 - Page 47

1 x Transom Panel Back FSC 1-1/4 x 13-1/2 x 35-7/8”
Wood Parts
Hardware
070
070
Fig. 7.5
2 x 5/16 x 2-1/8” Wafer Bolt (5/16” at washer)
Fig. 7.4

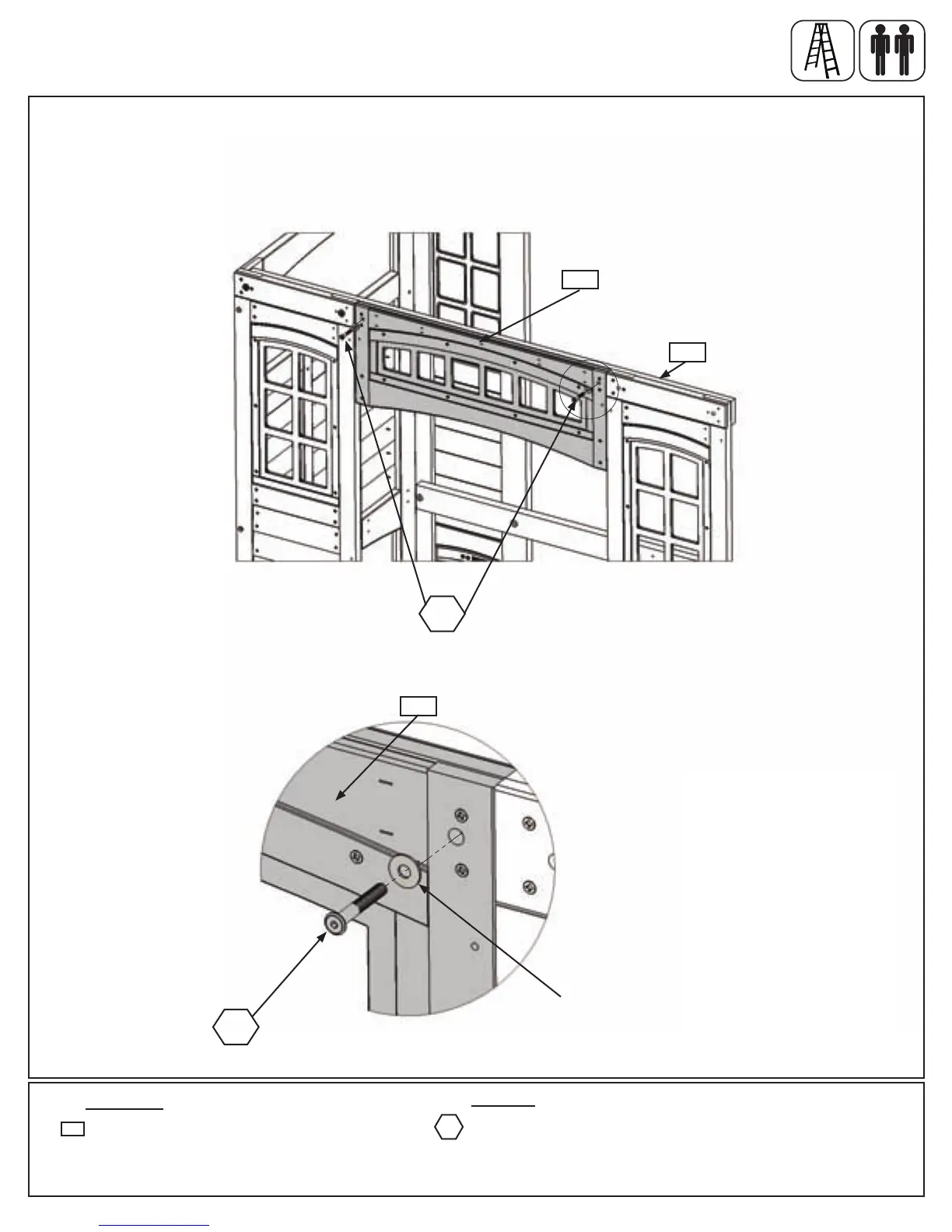

Step 7: Back Wall Assembly
Part 2
B:Atthetopoftheassembly,abovethe(060)HalfPanel,place(070)TransomPanelBackbetweenSwingand
DoorWallAssembliessotheboltholesareatthetopofthepanel.Looselyattachto(042)LongWallTiewith2
(WB9)5/16x2-1/8”WaferBolts(with5/16”atwasher-t-nutspreviouslyinstalled).(g.7.4and7.5).
WB9
5/16”Flat
Washer
WB9
070
042
WB9
 47  support@cedarsummitplay.com
