Hardware
1 x Slidenest Assembly Right FSC 2-3/16 x 5-1/4 x 7-17/32”
1 x Slidenest Assembly Left FSC 2-3/16 x 5-1/4 x 7-17/32”
Wood Parts
082
083

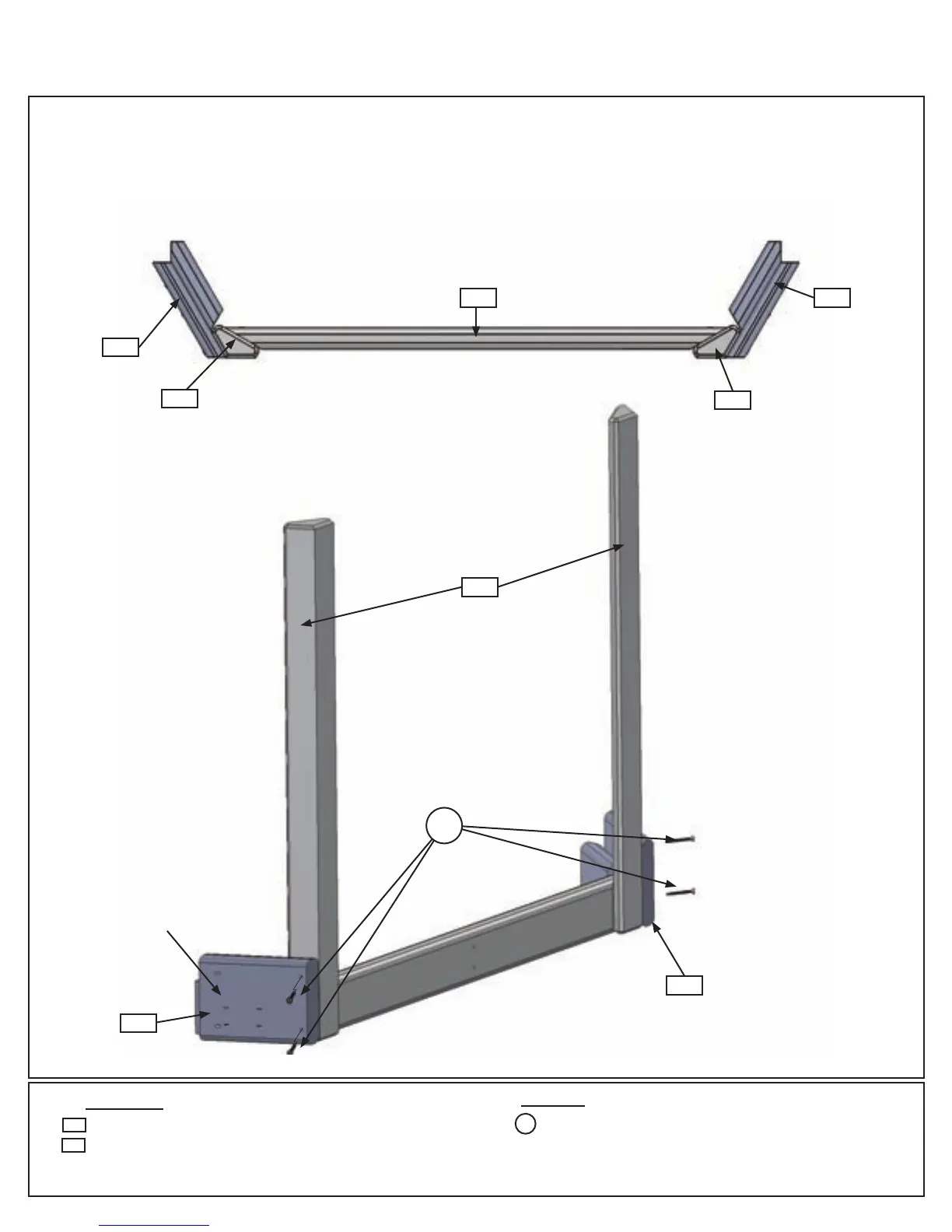

Fig. 8.4
083
Step 8: Slidenest Assembly
Part 2
B:Attach(082)SlidenestAssemblyRightand(083)SlidenestAssemblyLefttoeach(081)CrowsnestPost
using2(S15)#8x1-3/4”WoodScrewsperside.Makesurethestaplesaretowardsthebottomoftheassembly
(g.8.3and8.4)
Fig. 8.3
081
080 082
081
081
S15
Outside
View
Noticestaples
towardsbottom.
Top View
083
082
4 x #8 x 1-3/4” Wood Screw
S15
52 support@cedarsummitplay.com
