Cedar Summit F25630 - Page 63

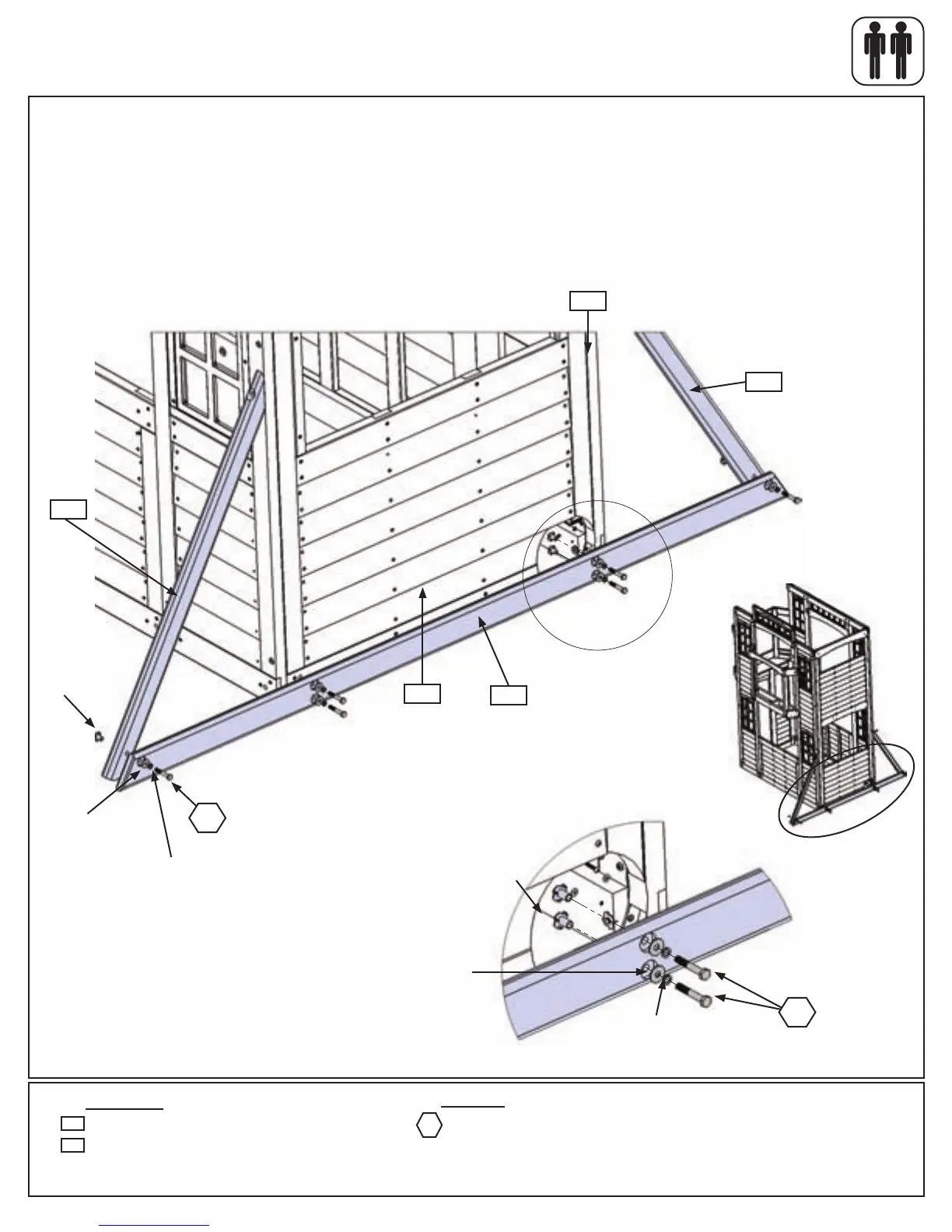

Step 11: Swing Wall Assembly
Part 1
Wood Parts
Hardware
Keep all bolts loose in this step.
A:Looselyattach(110)GroundSWtothebottomof(040)SWSidePanelusing4(G8)5/16x2”HexBolts(with
lockwasher,atwasherandt-nut).(g.11.1,11.2and11.3)
B: Ateachendof(110)GroundSWlooselyattach1(111)Diagonalwith1(G8)5/16x2”HexBolt(withlock
washer,atwasherandt-nut).(g.11.2)
040
Fig. 11.2
030
110
111
111
2 x Diagonal FSC 2 x 3 x 42-1/4”
1 x Ground SW FSC 5/4 x 4 x 83-11/16”
111
110
6 x 5/16 x 2” Hex Bolt (5/16” lock washer, 5/16” at washer, 5/16” t-nut)
G8
G8
x6
5/16”Flat
Washer
5/16”Lock
Washer
5/16”T-nut
5/16”Flat
Washer
5/16”Lock
Washer
5/16”T-nut
Fig. 11.3
Fig. 11.1
G8
