Cedar Summit F25630 - Page 64

Step 11: Swing Wall Assembly
Part 2
C:Pre-drillpilotholeswitha3/16”drillbitthenattach(111)Diagonalto(030)NarrowWindowPanelswith1
(WL5)1/4x2-1/2”WaferLag(withatwasher)perdiagonal.(g.11.4)
D: Tightenall6(G8)5/16x2”HexBoltsfromStep11AandB.
Hardware

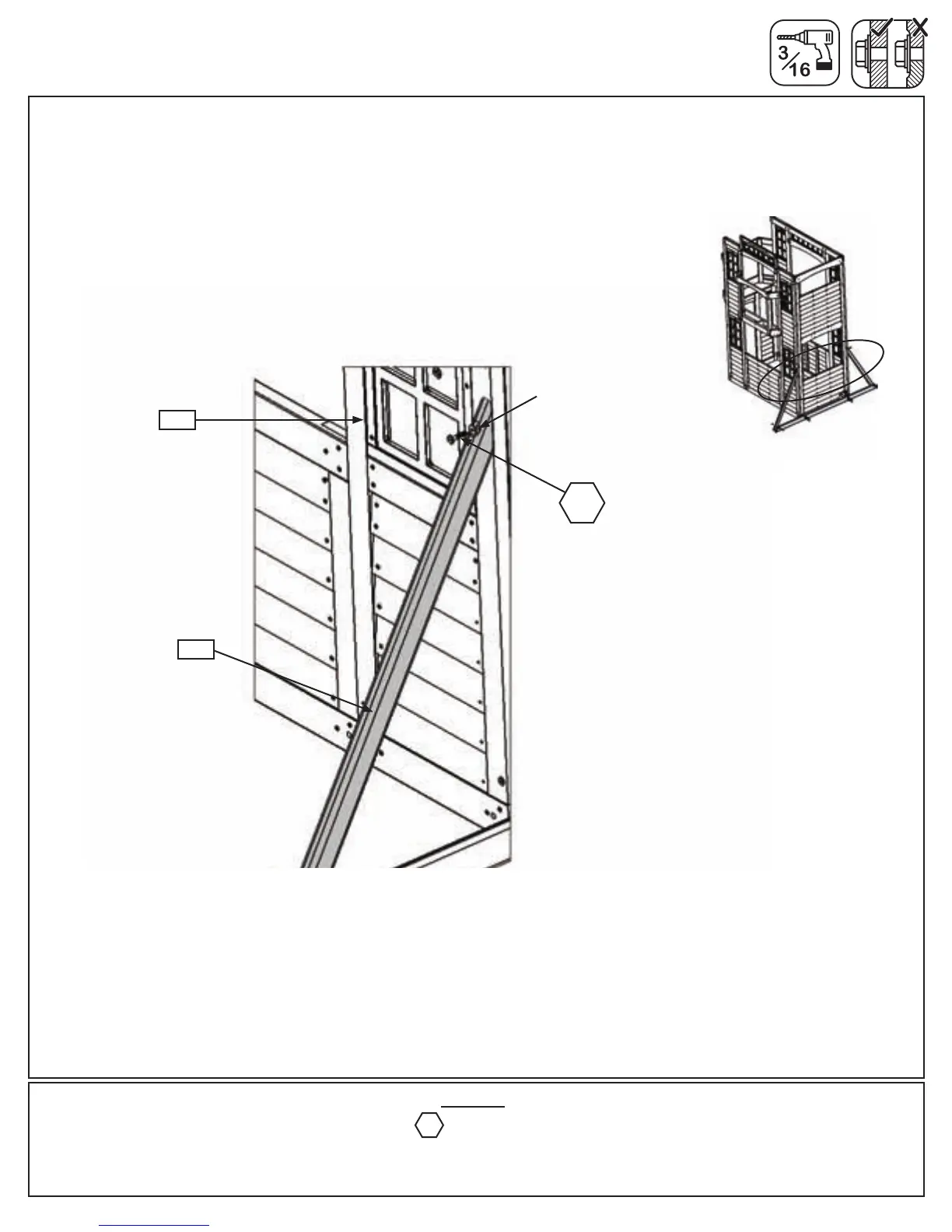

Fig. 11.4
030
2 x 1/4 x 2-1/2” Wafer Lag (1/4” at washer)
WL5
1/4”Flat
Washer
111
WL5
