Cedar Summit F25630 - Page 68

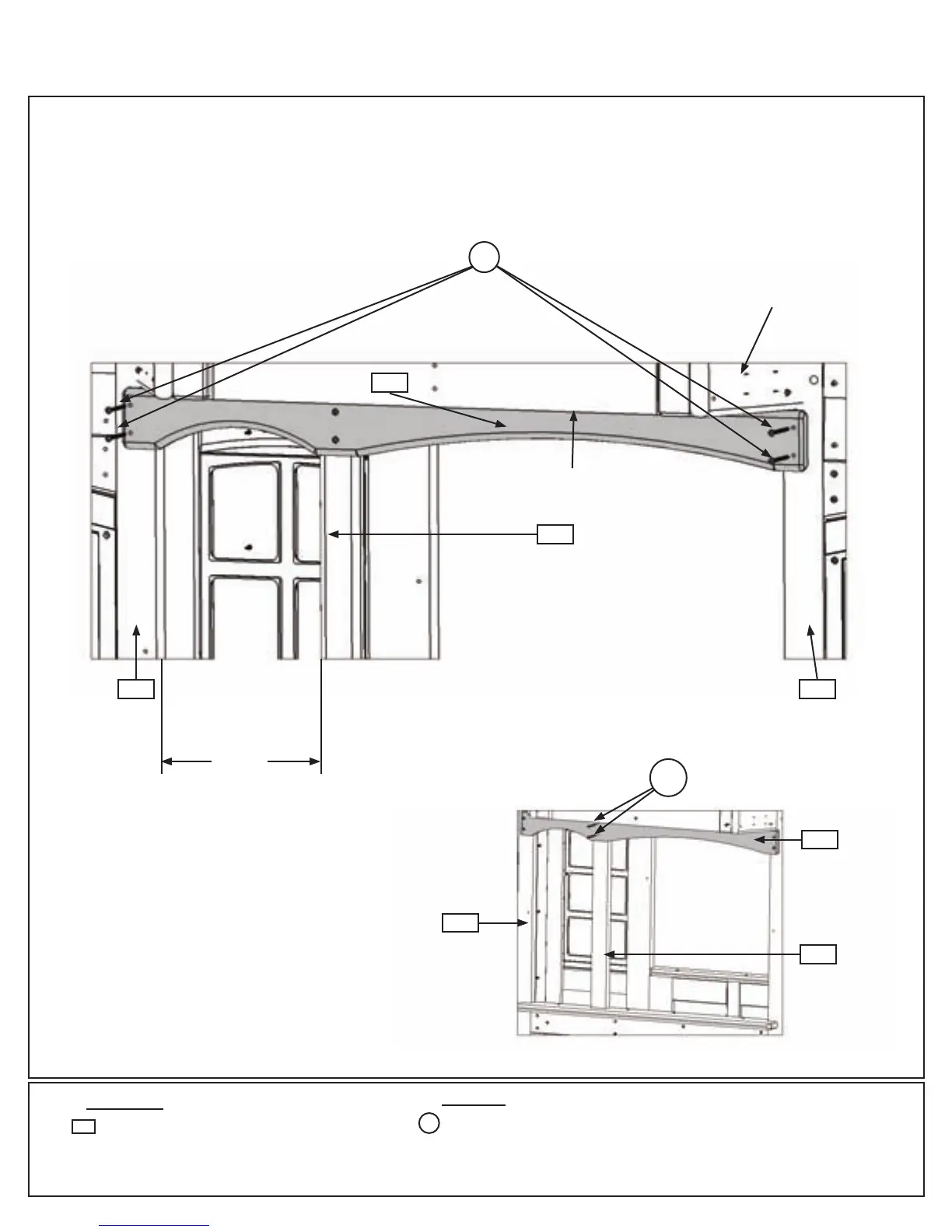

Fig. 13.5
030
Door Wall Side
132
S15
131
1 x Arch Lintel FSC 5/4 x 4 x 39”
Wood Parts
132
Hardware
Fig. 13.4
131
Step 13: Chalk Wall Assembly
Part 2
C:Onthefrontoftheassembly,tighttothebottomoftheSidenestAssembly,attach(132)ArchLinteltoboth
(030)NarrowWindowPanelswith4(S15)#8x1-3/4”WoodScrews.(g.13.4)
D:Makesurethereisa9-1/4”distancebetweentheDoorWallSide(030)NarrowWindowPaneland(131)
ChalkwallUpright(g.13.4),thenattach(132)ArchLintelto(131)ChalkwallUprightwith2(S15)#8x1-3/4”
WoodScrews.(g.13.5)
132
030 030
S15
6 x #8 x 1-3/4” Wood Screw
S15
9-1/4”
SlidenestAssembly
Tight
