Cedar Summit F25630 - Page 87

Noticeboltsidefacingout.
Wood Parts Hardware
2 x Sunburst FSC 5/4 x 6 x 10”
223
4 x #8 x 1-3/4” Wood Screw
S15
Step 22: Roof Support Assembly
Part 2

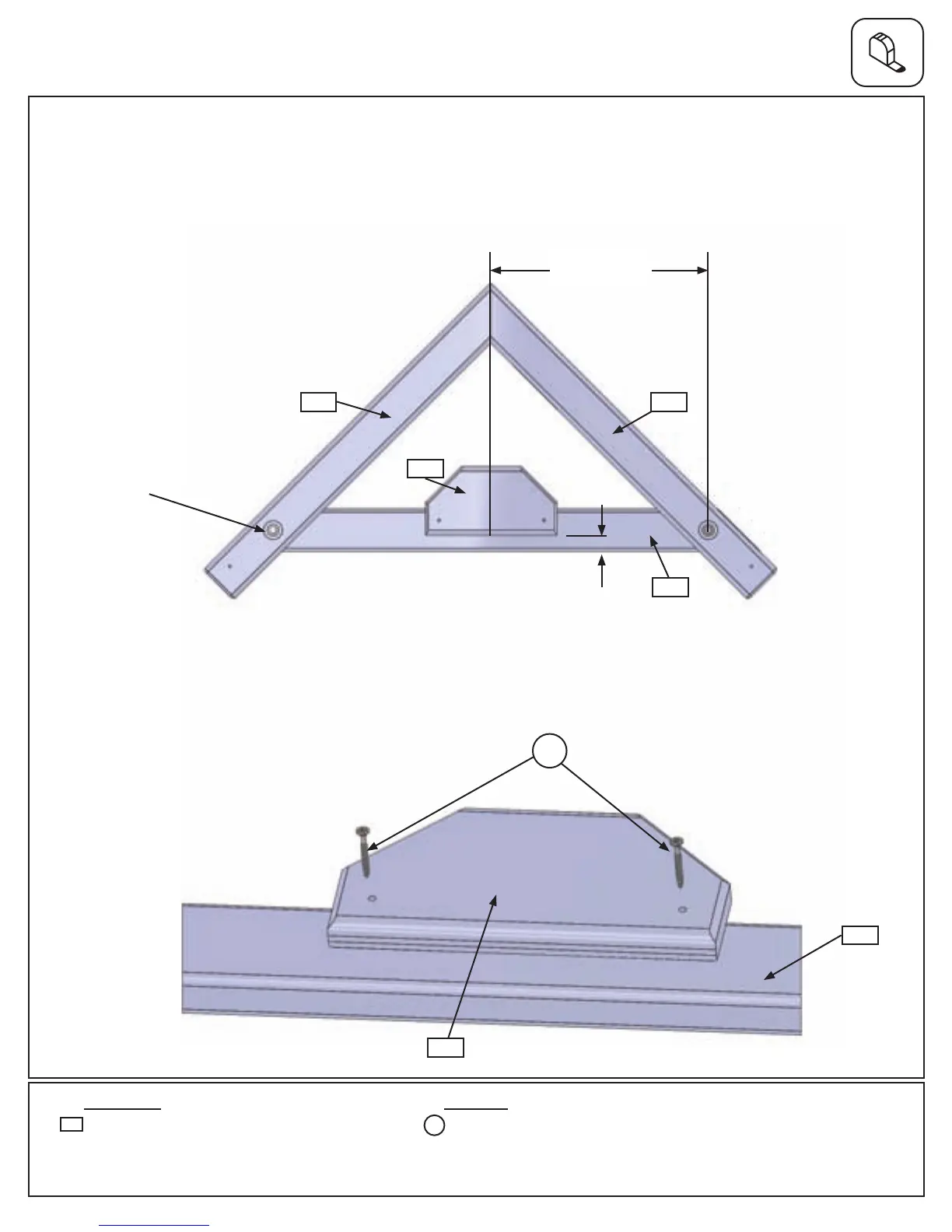

D:Place(223)Sunburston(222)GableBottomsoit’scentremeasures16-1/2”fromthecentreofeitherbolt
holeanditmeasures1-1/4”fromthebottomof(222)GableBottom.(g.22.4)
E:Attach(223)Sunburstto(222)GableBottomwith2(S15)#8x1-3/4”WoodScrews.(g.22.5)
Repeat for both assemblies.
220
Fig. 22.4
Fig. 22.5
222
223
223
222
S15
221
1-1/4”
16-1/2”
