Cedar Summit F25630 - Page 93

Hardware

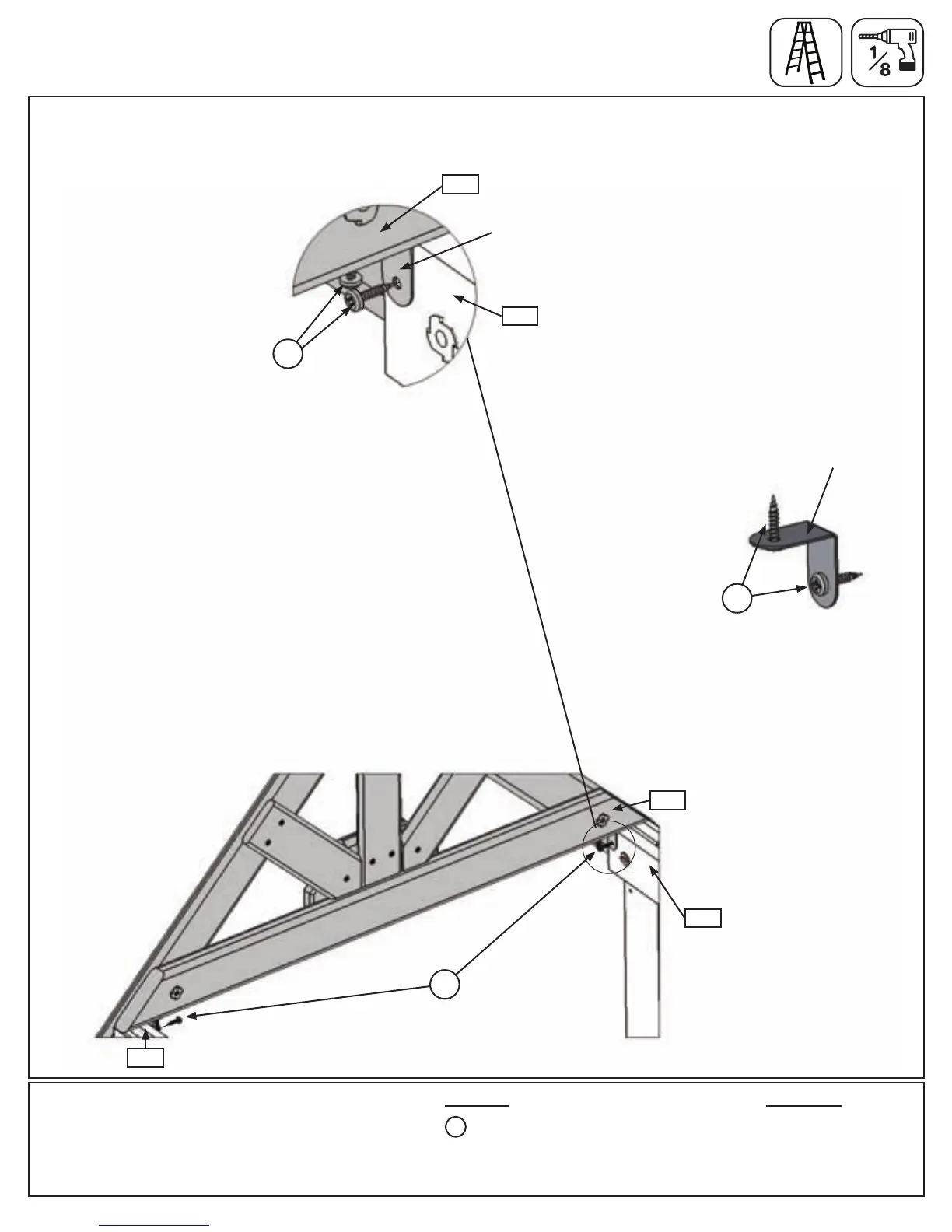

B:Frominsidetheassembly,pre-drillwitha1/8”drillbitthenattach(222)GableBottomto(042)LongWallTies
using2NarrowAngleBracketswith2(S8)#12x3/4”PanScrewsperbracket.(g.24.4and24.5)
Step 24: Attach Roof Support Assembly
Part 2
Fig. 24.5
Fig. 24.4
042
222
Inside Fort View
S8
4 x #12 x 3/4” Pan Screw
NarrowAngleBracket
S8
ExampleofNarrowAngle
Bracketwithscrews
Other Parts
2 x Narrow Angle Bracket
S8
NarrowAngleBracket
S8
222
042
042
