SCALE:1:50 WEIGHT:
Base 1 -Panel Connect
SHEET 7 OF 9
REV.
A
DWG. NO.
SIZE
Important! Build on flat surface
1 x End Panel Assembly 1-1/4 x 42 x 87”
Wood Parts
2622
Hardware
8 x 1/4 x 2-1/2” Wafer Lag
WL5
Back
Side Wall
2618
Swing Side
Front
Step 2: Frame Assembly
Part 2

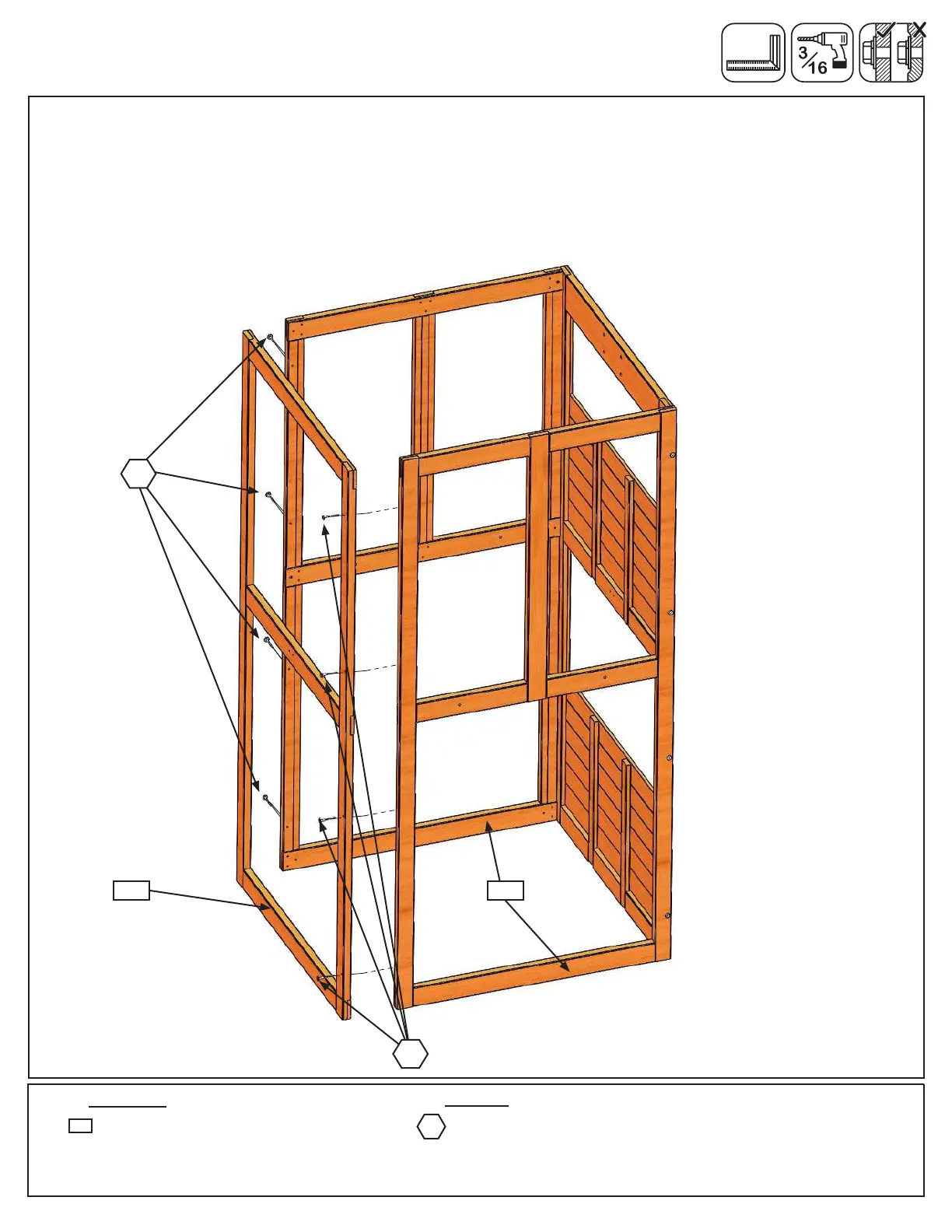

B: Place (2622) End Panel Assembly between both (2618) Front Back Panels noticing the panel orientations.
The tops and bottoms of the panels should be ush. Make sure the panels are square then using the pilot
holes as a guide pre-drill with a 3/16” drill bit and fasten the back (2618) Front Back Panel to (2622) End Panel
Assembly and (2622) End Panel Assembly to the front (2618) Front Back Panel with 4 (WL5) 1/4 x 2-1/2” Wafer
Lags per side. (g. 2.4)
WL5
WL5
Fig. 2.4
2622
Notice back (2618)
Front Back Panel
overlaps (2622) End
Panel Assembly
Notice (2622) End
Panel Assembly
overlaps front (2618)
Front Back Panel
