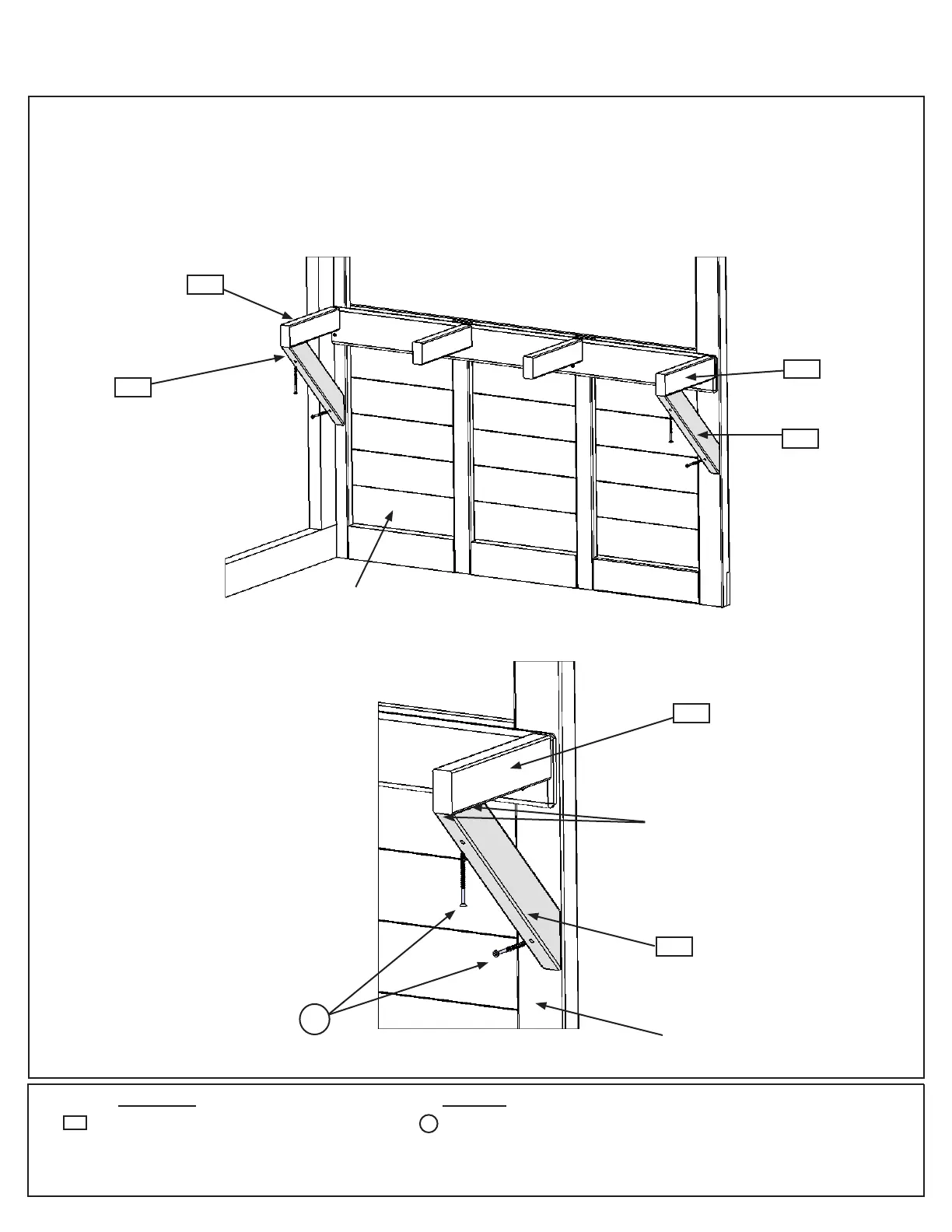

D: Place 1 (6136) Counter Brace ush to the front and outside edge of each outer (5736) Counter Joist and tight
to the panel then attach with 2 (S3) #8 x 2-1/2” Wood Screws per brace. (g. 15.4 and 15.5)
Step 15: Counter Assembly
Part 3
Wood Parts Hardware
4 x #8 x 2-1/2” Wood Screw
S3
2 x Counter Brace 1 x 2 x 12-9/16”
6136
S3
Flush
Fig. 15.4
Fig. 15.5
6136
5736
5736
5736
6136
6136
Panel
Panel
