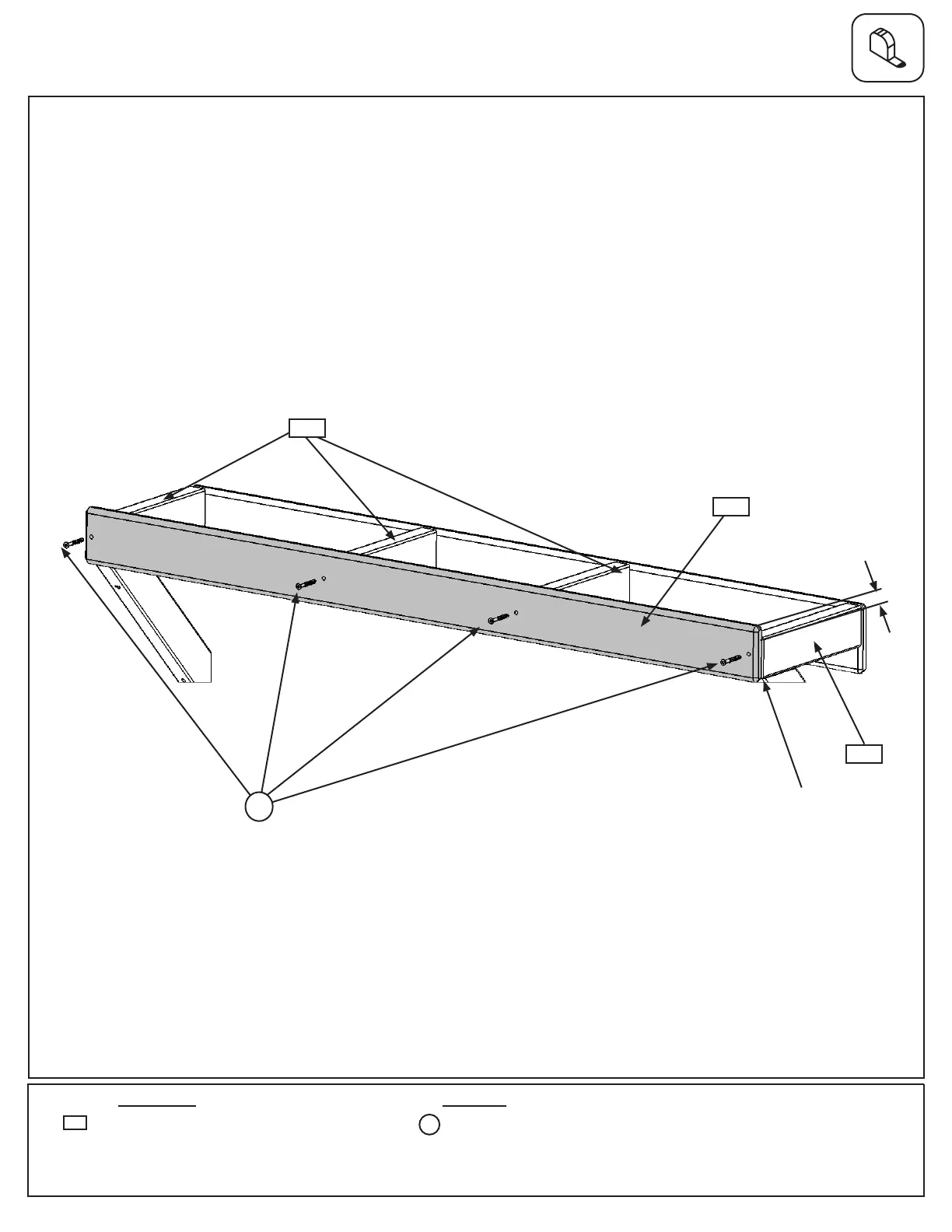

E: Place (2686) Counter Front against (5736) Counter Joists so the ends are ush and the centre (5736) Counter
Joists are centred over the pilot holes. Measure 5/8” down from the top of (2686) Counter Front on both ends and
attach to the (5736) Counter Joists with 4 (S20) #8 X 1-3/8” Wood Screws. (g. 15.6)
WEIGHT:
Counter Prep
SIZE
SHEET 4 OF 4
REV.
DWG. NO.
SCALE:1:50
Use 4 -#8 x 1-1/2" Wood Screws to attach Counter Front -5/8" above joists
Step 15: Counter Assembly
Part 4
Wood Parts
4 x #8 x 1-3/8” Wood Screw
1 x Counter Front 5/8 x 2-3/4 x 40-5/8”
2686
Fig. 15.6
5736
5736
5/8”
2686
Flush
S20
S20
Hardware
