2 x #6 x 1” Wood Screw
2 x #6 x 5/8” Pan Screw
A: On the inside of (2718) Door Window Panel measure 15” up from the bottom and attach Catch Plate ush to
the edge using 2 (S18) #6 x 1” Wood Screws. (g. 17.1)
B: On the inside of (2718) Door Window Panel measure 22” up from the bottom and attach 1 Door Handle using
2 (S13) #6 x 5/8” Pan Screws. (g. 17.1)

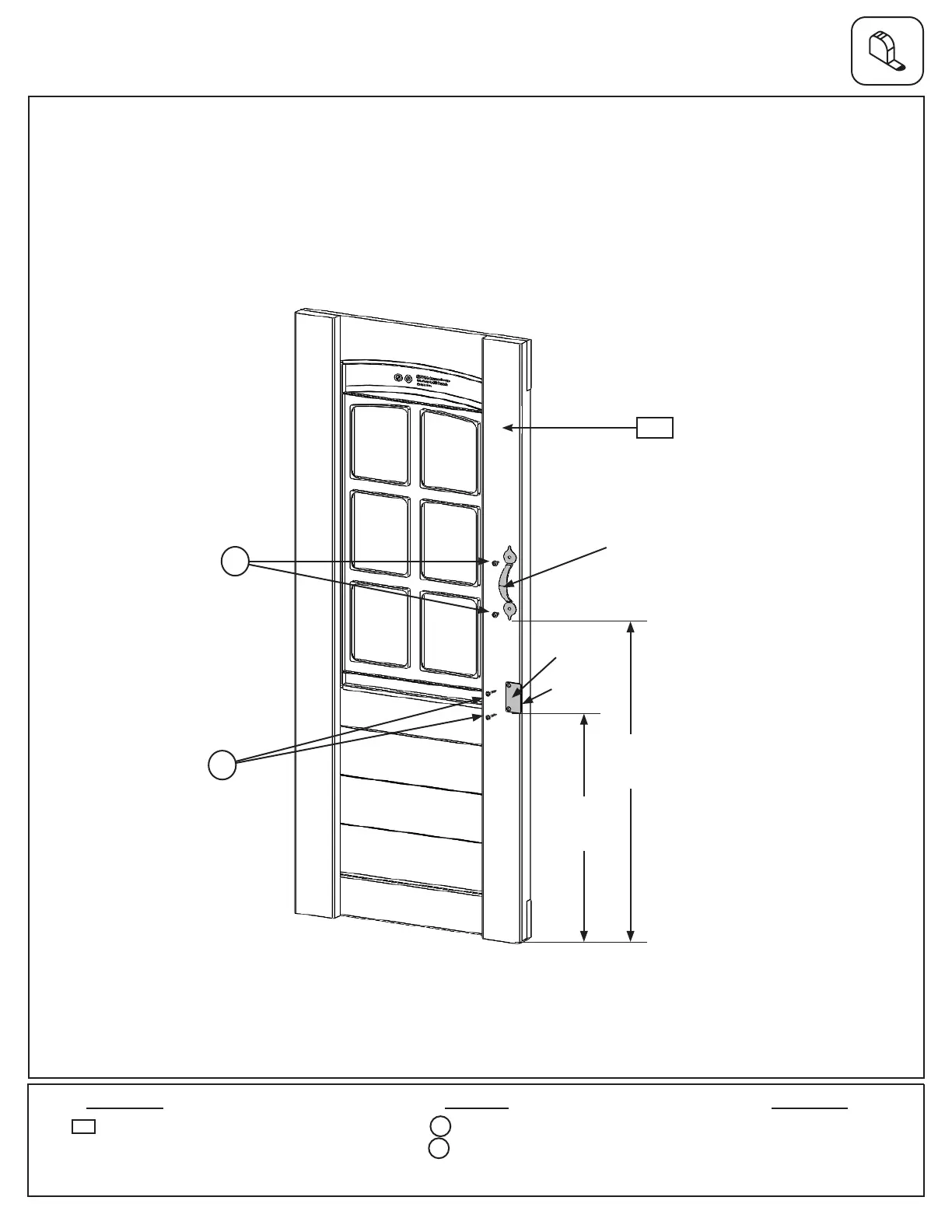

Fig. 17.1
Step 17: Attach Door Components
Part 1
Hardware Other Parts
1 x Door Handle
1 x Catch Plate
Catch
Plate
Door Handle
Inside View
S18
S13
1 x Door Window Panel 1-1/4 x 15-3/4 x 40-3/4”
Wood Parts
2718
15”
S13
2718
Flush
22”
S18
