Step 3: Swing Wall Prep
Part 3
It is important to assemble the frame on a at, smooth surface.

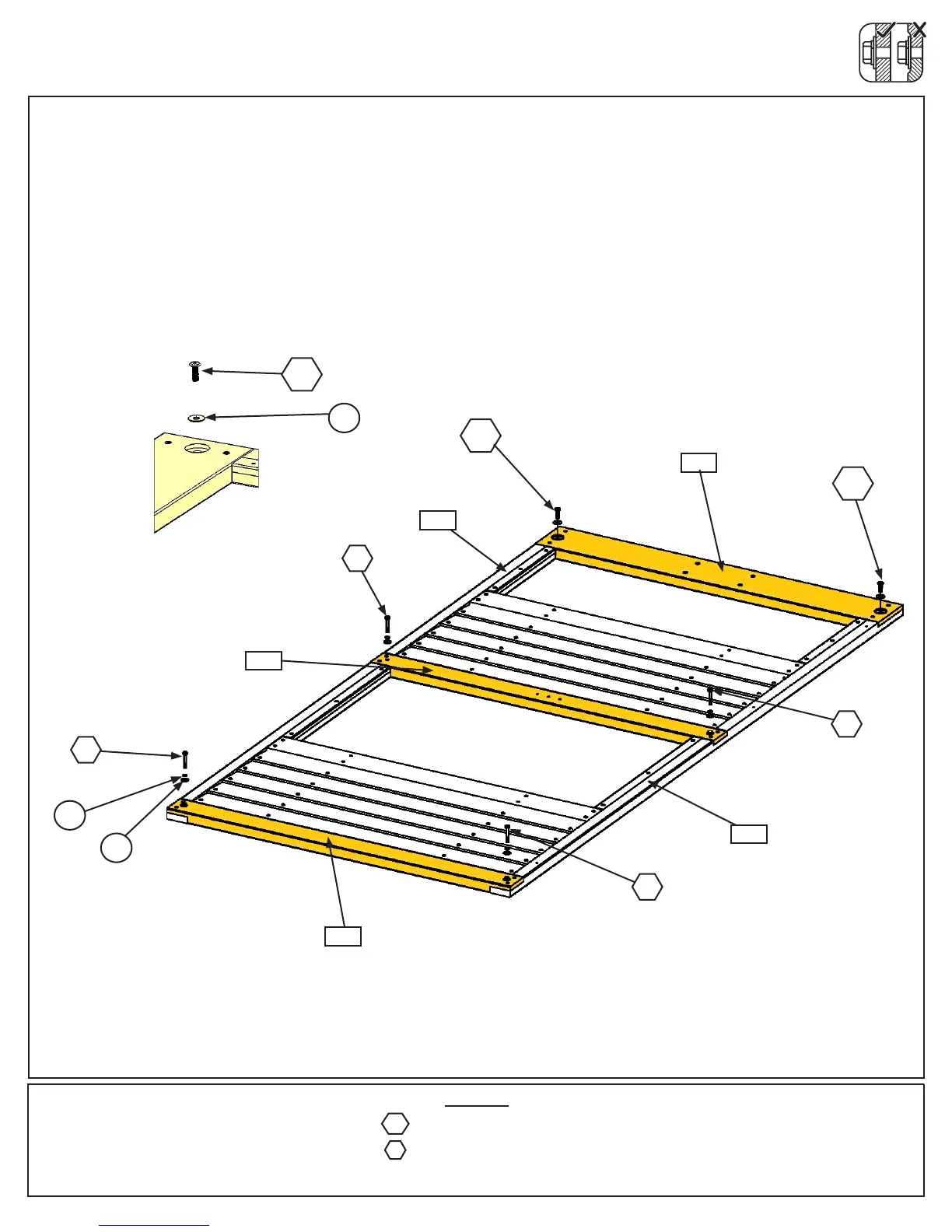

F: On one assembly attach (2630) SW Top to (2757) LT Post Assembly and (2758) RT Post Assembly with 2
(WB1) 5/16 x 1” Wafer Bolts (with at washer) connecting to previously installed t-nut. (g. 3.5 and 3.6)
G: On one assembly attach (2768) Panel Floor and (2769) Panel BT Frame to (2757) LT Post Assembly and
(2758) RT Post Assembly with 2 (H9) 1/4 x 1-1/4” Hex Bolts (with lock washer and at washer) per board,
connecting to previously installed t-nuts. (g. 3.5)
2x 5/16x1”WaferBolt(5/16”atwasher)
4x 1/4x1-1/4”HexBolt(1/4”lockwasher,1/4”atwasher)
H9
Hardware
Fig. 3.6
Fig. 3.5
2630
2768
WB1
WB1
WB1
2769
FW2
H9
WB1
H9
LW1
FW1
2758
H9
2757
H9
