Cedar Summit Paramount F25040 - Part 2

47 support@cedarsummitplay.com
2 x Side Joist MOD 2 x 2 x 40-1/4”

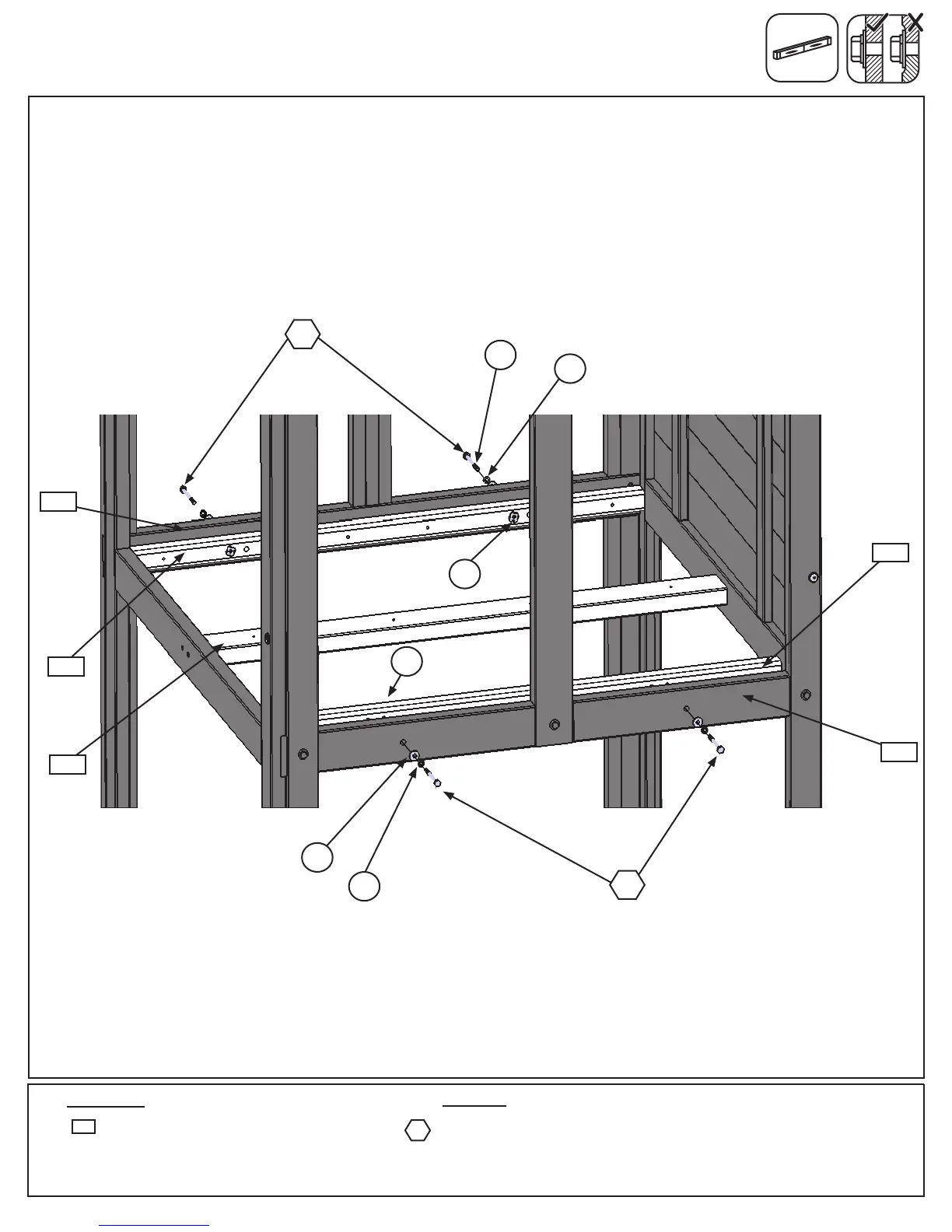

B: On the inside of both the Front/Back Walls place 1 (2777) Side Joist MOD against each (2772) Panel Floor
Support, line up bolt holes then loosely attach with 2 (H11) 1/4 x 2-3/4” Hex Bolts (with lock washer, at washer
and t-nut) per joist. Make sure both (2777) Side Joist MODs are level with (2608) Floor Joist. (g. 7.5)
2777
Wood Parts
Fig. 7.5
4 x 1/4 x 2-3/4” Hex Bolt
(1/4”lockwasher,1/4”atwasher,1/4”t-nut)
Hardware
H11
FW1
LW1
H11
H11
2772
2772
2777
2777
2608
Front/Back Wall
TN1
TN1
FW1
LW1
Step 7: Small Fort Floor Assembly
Part 2
Front/Back Wall
