Cedar Summit Paramount F25040 - Step 7: Small Fort Floor Assembly; Part 1

46 support@cedarsummitplay.com

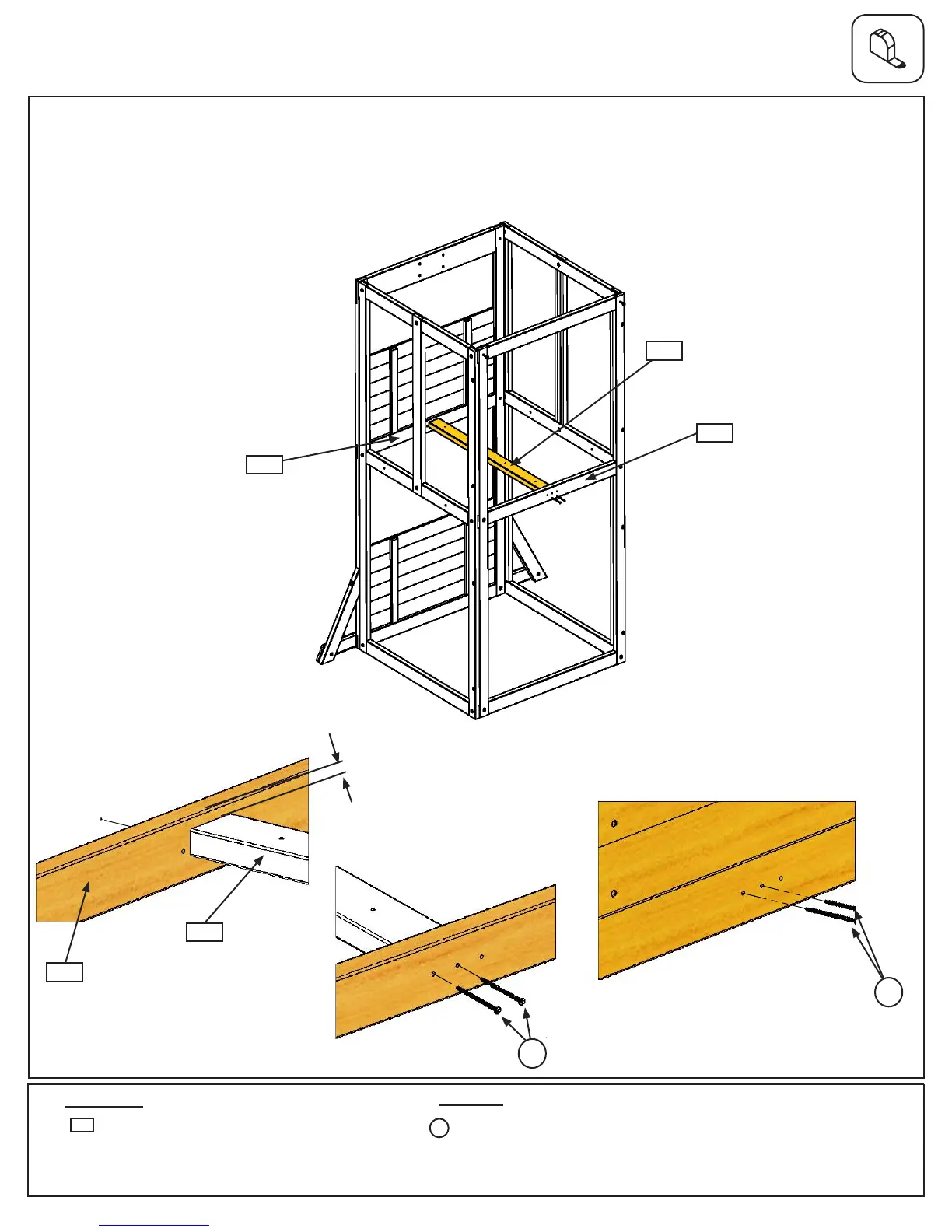

A: From inside of the assembly centre (2608) Floor Joist over the pilot holes in both (2768) Panel Floors in the
Swing and End Walls, measure 5/8” down from the top of boards then attach (2608) Floor Joist to each board
using the left and centre holes with 2 (S4) #8 x 3” Wood Screws per end. (g. 7.1, 7.2, 7.3 and 7.4)
Step 7: Small Fort Floor Assembly
Part 1
1 x Floor Joist 1-1/4 x 3 x 40-3/4”
2608
Fig. 7.2
Wood Parts
Fig. 7.1
2608
Fig. 7.3
Hardware
4 x #8 x 3” Wood Screw
S4
2768
5/8”
2768
Swing Wall
End Wall
2608
2768
End Wall
Swing Wall
S4
S4
Fig. 7.4
Notice holes used
