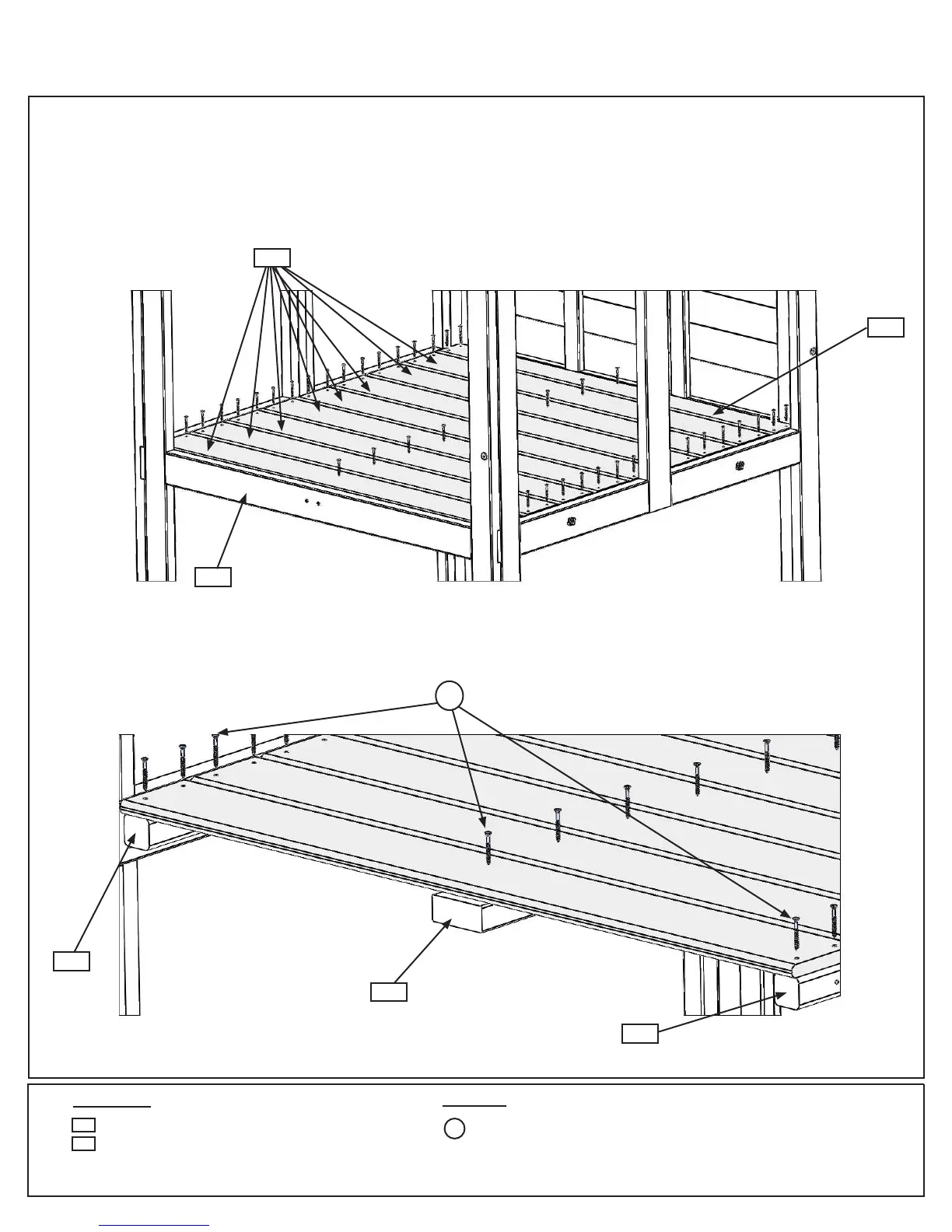

E: Starting at the Swing Wall place 1 (2648) Floor Board followed by 8 (2609) Floor Boards. Make sure all
boards are evenly spaced then attach to (2608) Floor Joist and each (2777) Side Joist MOD with 5 (S20) #8 x
1-3/8” Wood Screws per board. (g. 7.7 and 7.8)
1 x Floor Board 1 x 4 x 40-5/8”
8 x Floor Board 1 x 5 x 40-5/8”
2648
Wood Parts
Fig. 7.7
Fig. 7.8
2768
Hardware
Wall removed for
clarity
2608
2777
2648
2609
45 x #8 x 1-3/8” Wood Screw
x 5 per
board
2777
2609
Swing Wall
S20
S20
Step 7: Small Fort Floor Assembly
Part 4
To Next Page
