Step 16: Attach Swing End to Swing Beam

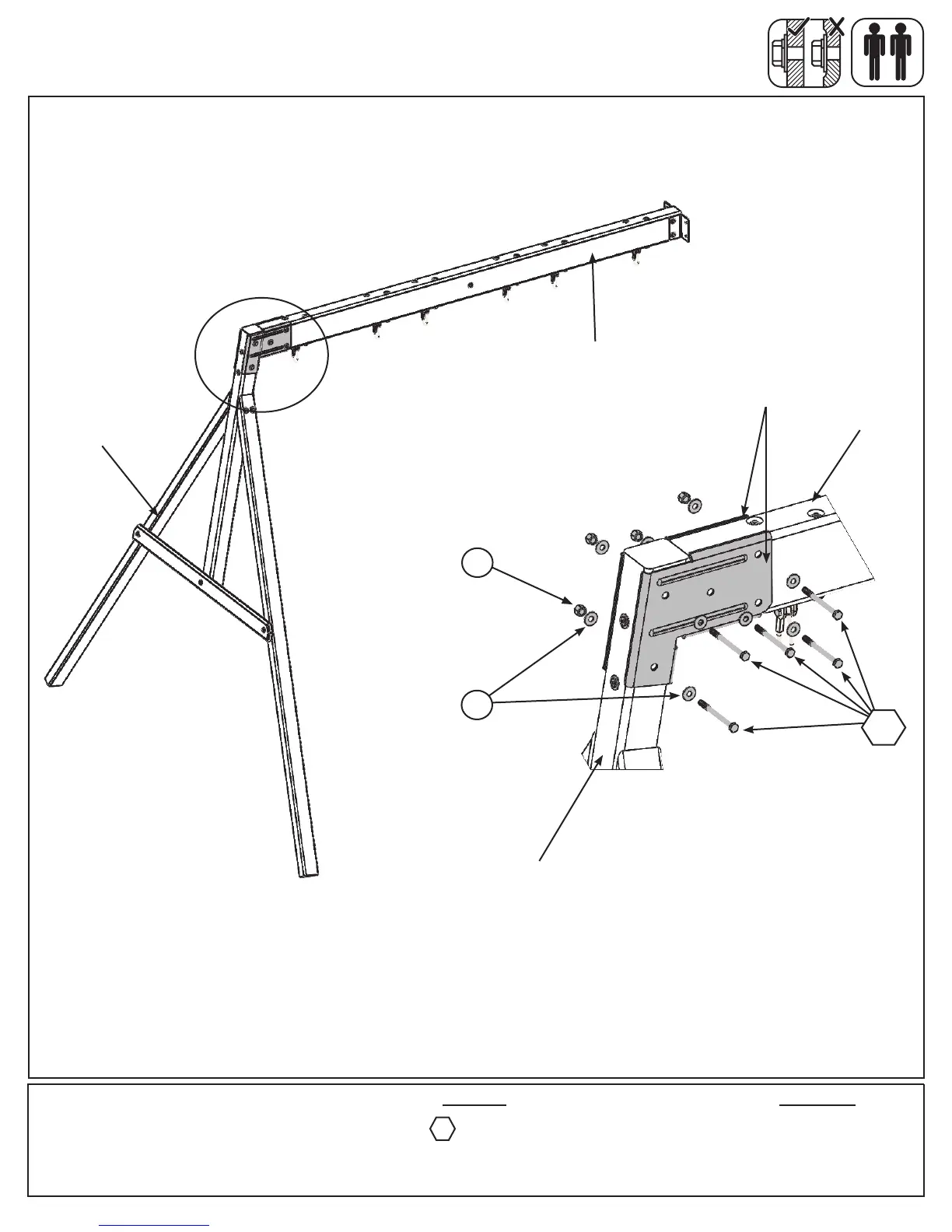

A: Place Swing End Assembly against Swing Beam Assembly then place 1 Beam Bracket on each side of the
assembly (they are specic for left and right side) and attach with 5 (G21) 5/16 x 3-3/4” Hex Bolts (with 2 at
washers and 1 lock nut). (g. 16.1 and 16.2)
Hardware
5 x 5/16 x 3-3/4” Hex Bolt
 (5/16”atwasherx2,5/16”locknut)
Other Parts
2 x Beam Bracket (Left/Right)
G21
Swing End
Assembly
Beam
Bracket
Swing Beam
Assembly
Swing Beam
Assembly
Swing End
Assembly
G21
Fig. 16.1
Fig. 16.2
LN2
FW2
