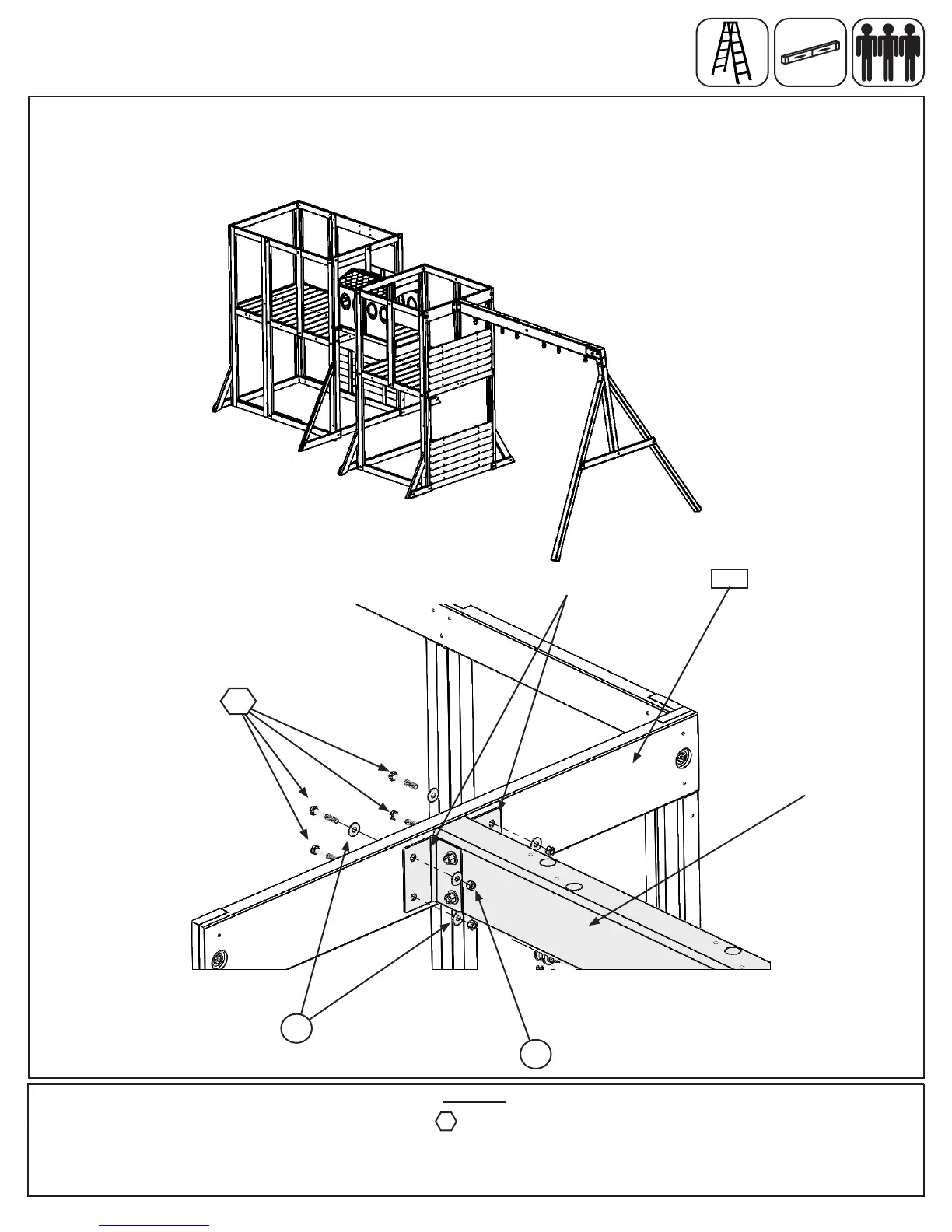

Step 17: Attach Swing Assembly To Fort
A: On the Small Fort place Swing Assembly against top of (2630) SW Top, make sure assembly is level then
attach from inside the fort assembly into each L-Beam Bracket with 4 (G8) 5/16 x 2” Hex Bolts (with 2 at
washers and 1 lock nut). (g. 17.1 and 17.2)
4 x 5/16 x 2” Hex Bolt
 (5/16”atwasherx2,5/16”locknut)
G8
Hardware
L-Beam
Bracket
Swing
Assembly
Fig. 17.2
2630
G8
LN2
FW2
Fig. 17.1
Small Fort
Large Fort
Swing Wall
Front
