Warning! To prevent tipping and avoid potential injury, stakes
must be driven 13” into ground. Digging or driving stakes can be
dangerousifyoudonotcheckrstforunder-groundwiring,cablesor
gas lines.

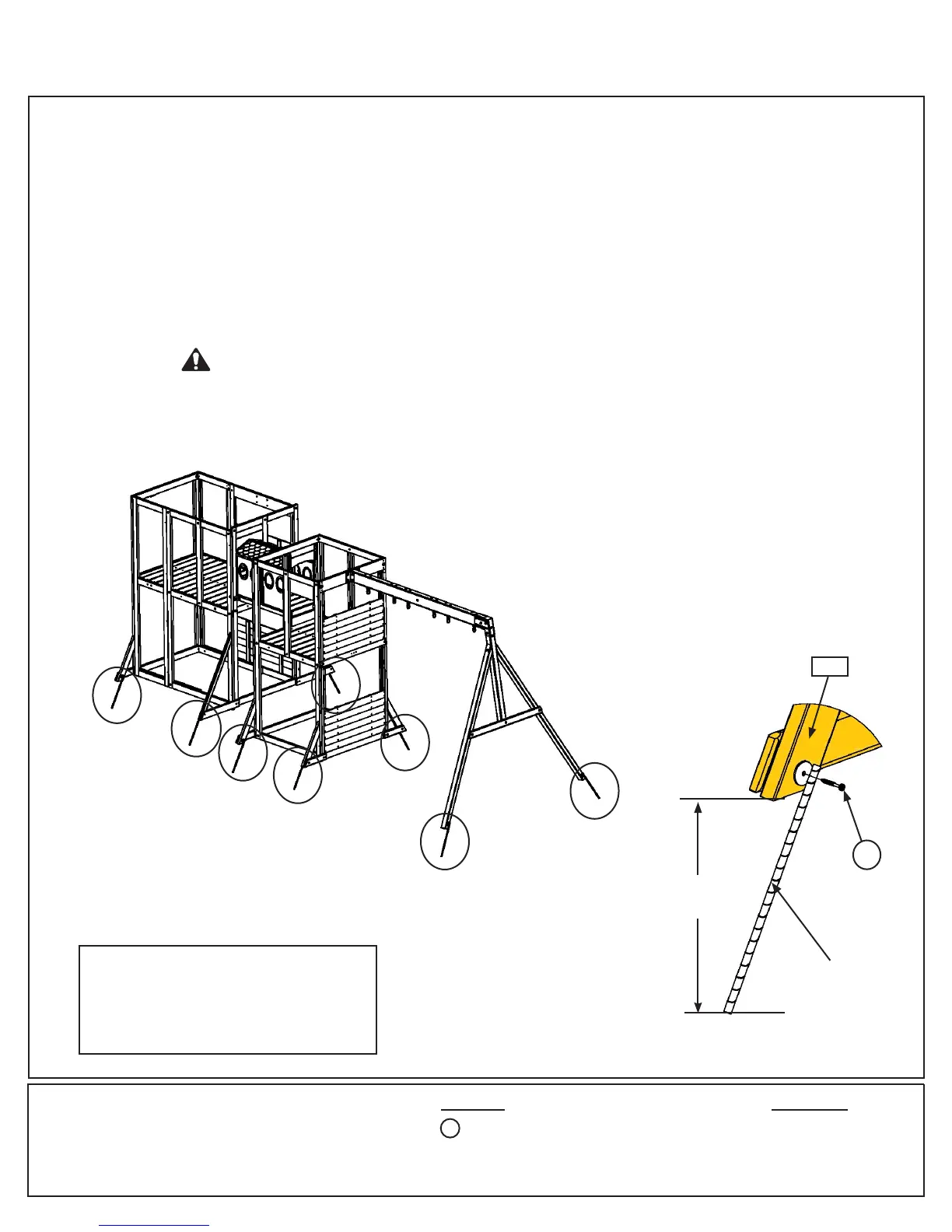

A: In the 8 places shown in g. 18.1 drive the Rebar Ground Stakes 13” into the ground against all 4 (2607)
Diagonals, both (8587) Diagonals and both (2613) Heavy SW Posts. Be careful not to hit the washer while
hammering stakes into the ground as this could cause the washer to break off.
B: Attach ground stakes using 1 (S7) #12 x 2” Pan Screw per ground stake. (g. 18.2)
C: After driving stakes into the ground, check for sharp edges caused by the impact of the hammer. Smooth any
sharp edges from impact area and touch up with outdoor paint.
Step 18: Install Ground Stakes
Hardware
8 x #12 x 2” Pan Screw 8 x Rebar Ground Stake
Other Parts
SEE FRONT COVER
FOR SAFETY CLEARANCE
Rebar
Ground
Stake
Fig. 18.1
Fig. 18.2
S7
2607
Front
13” In Ground
Swing Wall
S7
