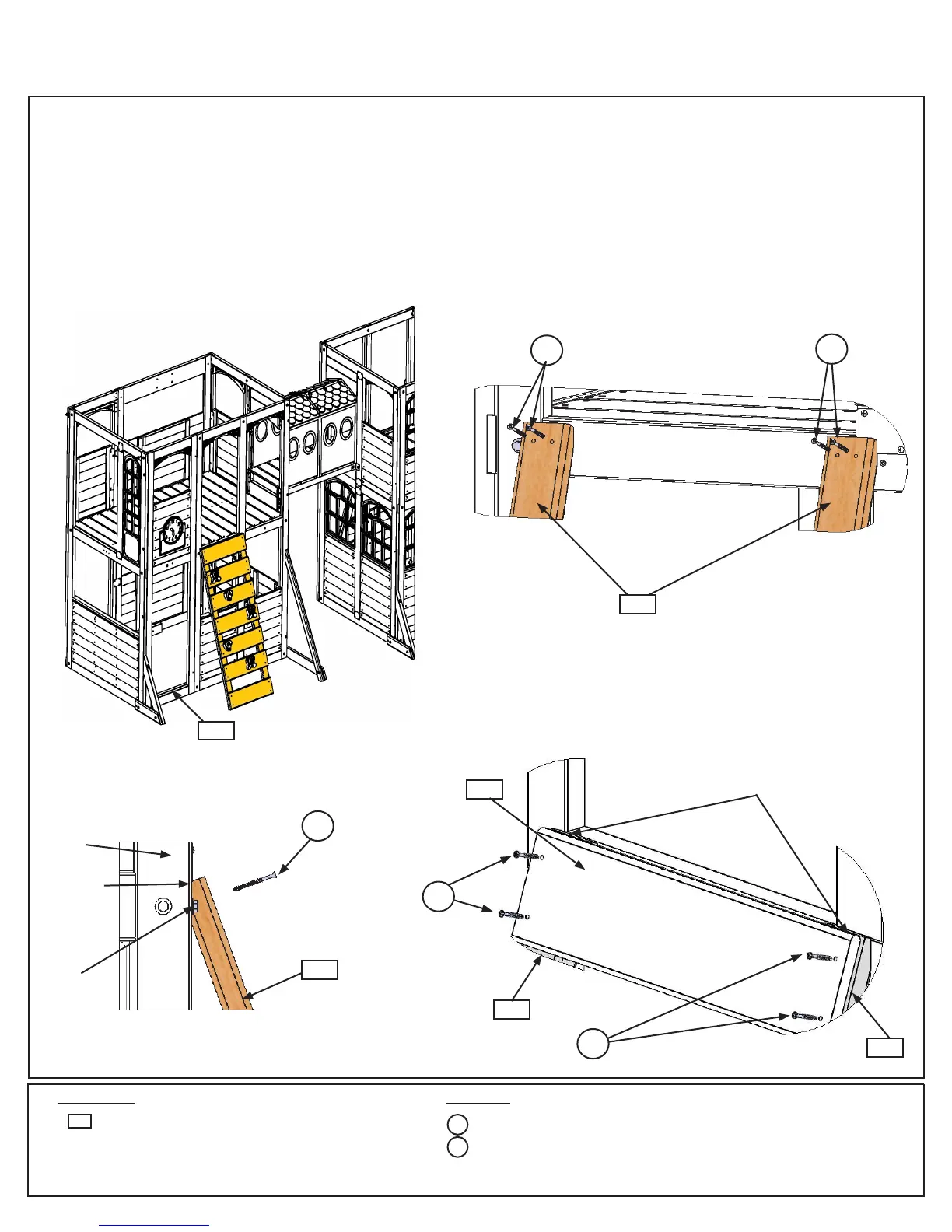

Step 23: Attach Rock Wall Assemblies to Fort
Part 1
A: On the Front Wall of the Large Fort place one Rock Wall Assembly centred in the opening next to (2677)
Narrow Panel ush as shown below. Attach (2776) Rock Rails using 2 (S11) #8 x 2” Wood Screws per rail. (g.
23.1, 23.2 and 23.3)
B: Attach 1 (2779) Access Board to top of each Rock Wall Assembly, ush to top of (2776) Rock Rails using 4
(S20) #8 x 1-3/8” Wood Screws per board. (g. 23.1 and 23.4)
Note: Make sure (2776) Rock Rails do not cover the bolt heads, move assembly over so it is tight to the
bolt head. (g. 23.3)
4 x #8 x 1-3/8” Wood Screw
4 x #8 x 2” Wood Screw
1 x Access Board 1 x 6 x 19”
2779
S11
S20
Fig. 23.2
2776
S11
2779
2776
Fig. 23.1
Fig. 23.3
2776
S11
Flush
Panel
Flush
S11
S20
S20
Fig. 23.4
Front Wall
Large Fort
2776
Bolt
Head
2677
