Step 27: Attach Door Assembly to Fort
Hardware
6 x #6 x 5/8” Pan Screw
S13
2677
S13
Fig. 27.3
Fig. 27.1
Door
Hinge
Outside View
5/8”
5/8”

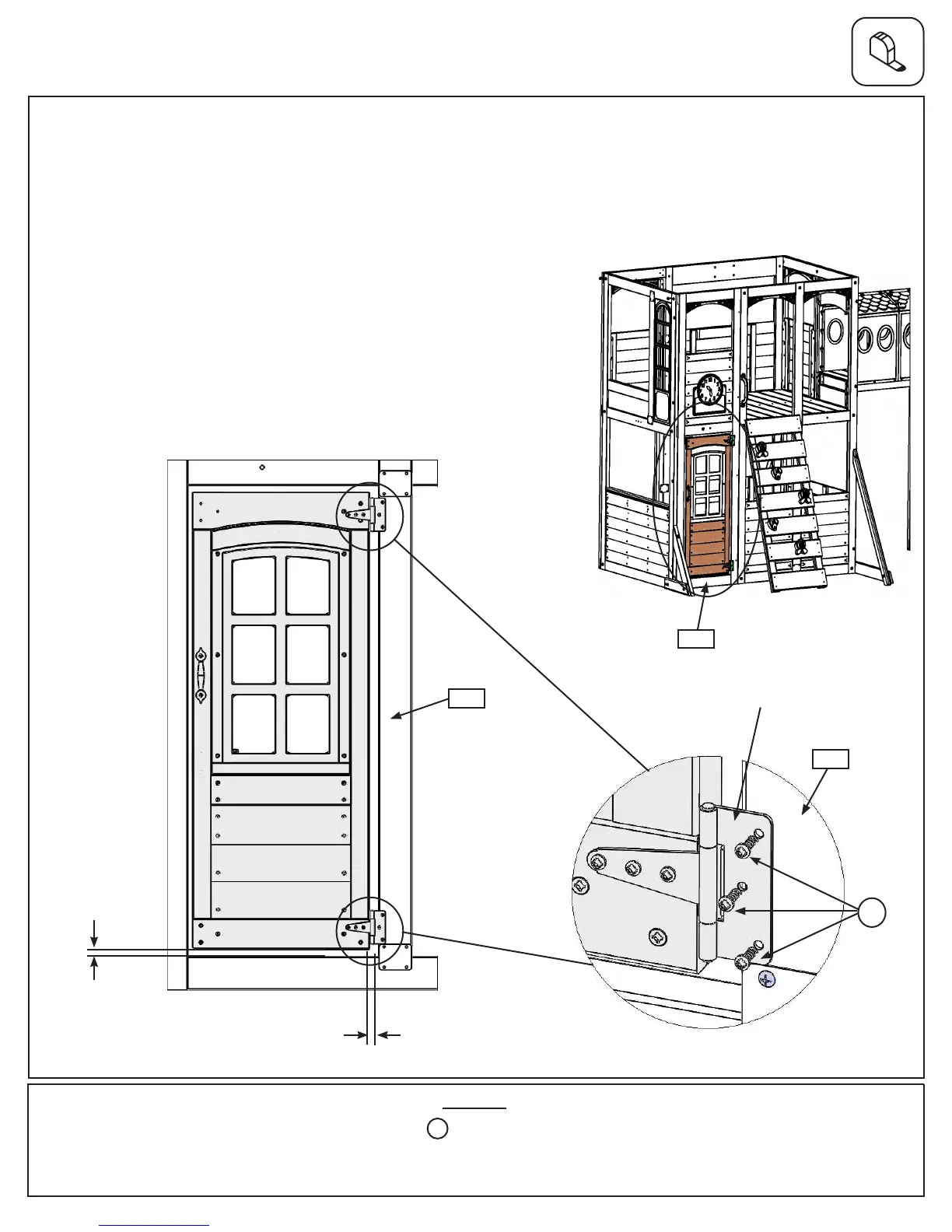

A: On the Front of the Large Fort measure 5/8” up from the top of the bottom opening of (2677) Narrow Panel
and a maximum 5/8” from the inside edge the panel then attach the remaining side of the hinges to (2677)
Narrow Panel using 3 (S13) #6 x 5/8” Pan Screws per hinge. (g. 27.1, 27.2 and 27.3)
Fig. 27.2
Front Wall
Large Fort
2677
2677
