Step 28: Attach Door Stop
Hardware
Wood Parts

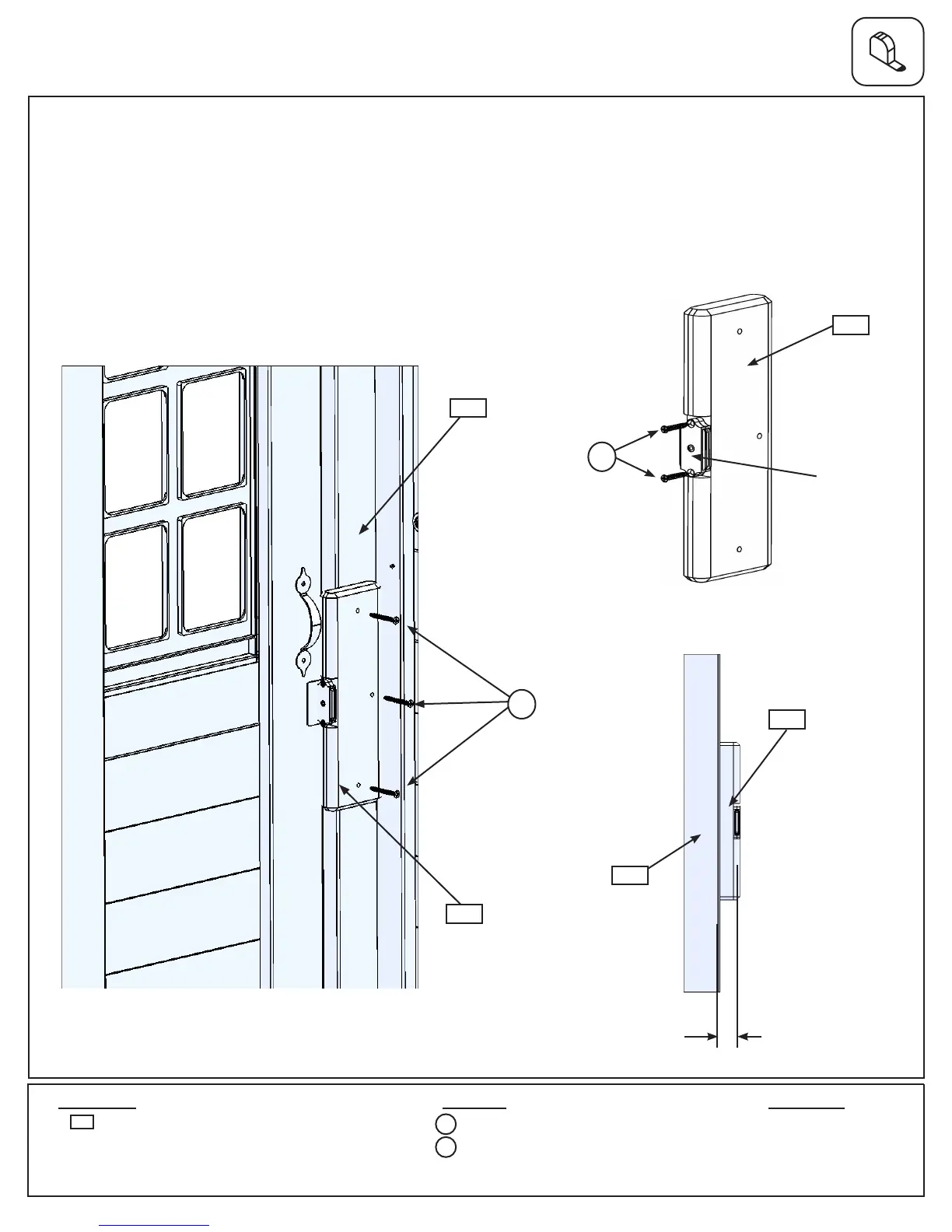

A: In the notched out opening of (2715) Door Stop attach the Magnetic Catch using 2 (S18) #6 x 1” Wood
Screws. (g. 28.1) Important: Use a hand held screw driver and DO NOT over tighten.
B: On the inside of the assembly, attach (2715) Door Stop to (2677) Narrow Panel with 3 (S11) #8 x 2” Wood
Screws, making sure (2715) Door Stop has an overhang of 1-1/4” and is in position to receive the Catch Plate.
(g. 28.2 and 28.3)
2715
S18
S11
Other Parts
1 x Magnetic Catch
2715
2715
Magnetic Catch
S11
Fig. 28.1
Fig. 28.2
S18
2715
Fig. 28.3
Inside View
1-1/4”
2677
2677
1 x Door Stop 5/4 x 3 x 10”
2 x #6 x 1” Wood Screw
3 x #8 x 2” Wood Screw
