4

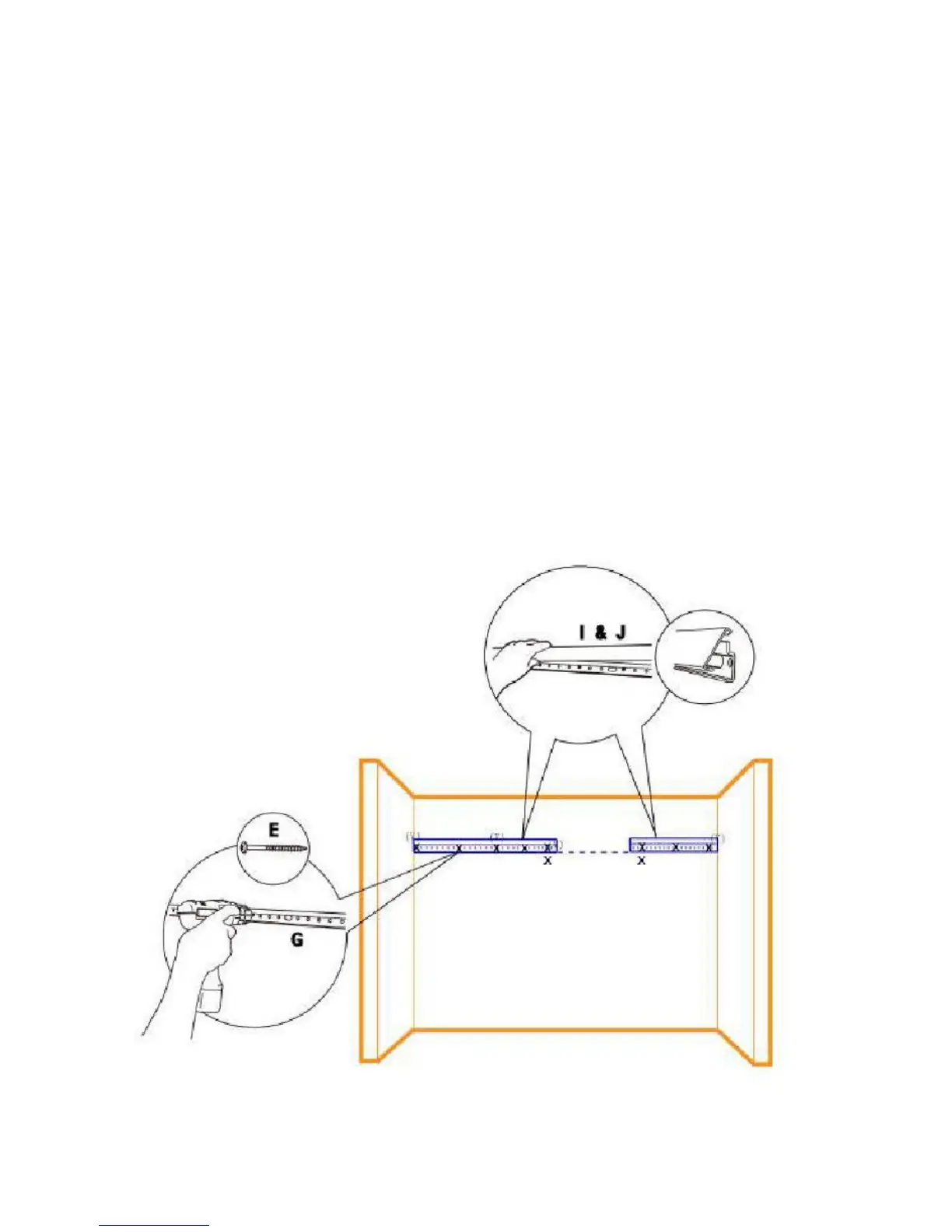

Mount WALL RAIL (G) from left to right on top of the Horizontal Line. To secure the
wall rail onto the wall – Use Panhead Screws (E) on stud reference marks. Mark
the screw locations then drill pilot holes using a 1/8” drill bit.
If any of the Panels are not within 3” of a stud, Dry Wall Anchor (C) are needed.
Mount Wall Rail (H) from right end to left. Using Panhead Phillips Screw (E) and
Dry Wall Anchor (C).
Cover long Wall Rail 44” (G) with Wall Rail Covering Strip (I). Snap fit the cover
from top to bottom. Narrow side fits the top and the bottom will snap in.
Measure and cut Wall Rail Covering Strip (J) to fit remaining area of wall rails and
the gap between two wall rails.
Hint:
- Wall rails must be mounted on studs behind wall. This is very important.
