Cellini CVC633 - Specification; Instruction for Use; Parts; Fitting the Charging Bracket

2
INSTRUCTION FOR USE
Before using your vacuum cleaner for the first time, allow the battery to charge
for approx. 16 hours.
SPECIFICATION:
12V Rechargeable NiMH Battery
Adaptor Input : AC 200V-240V ~ 50/60Hz
Adaptor Output: DC 18V 200mA

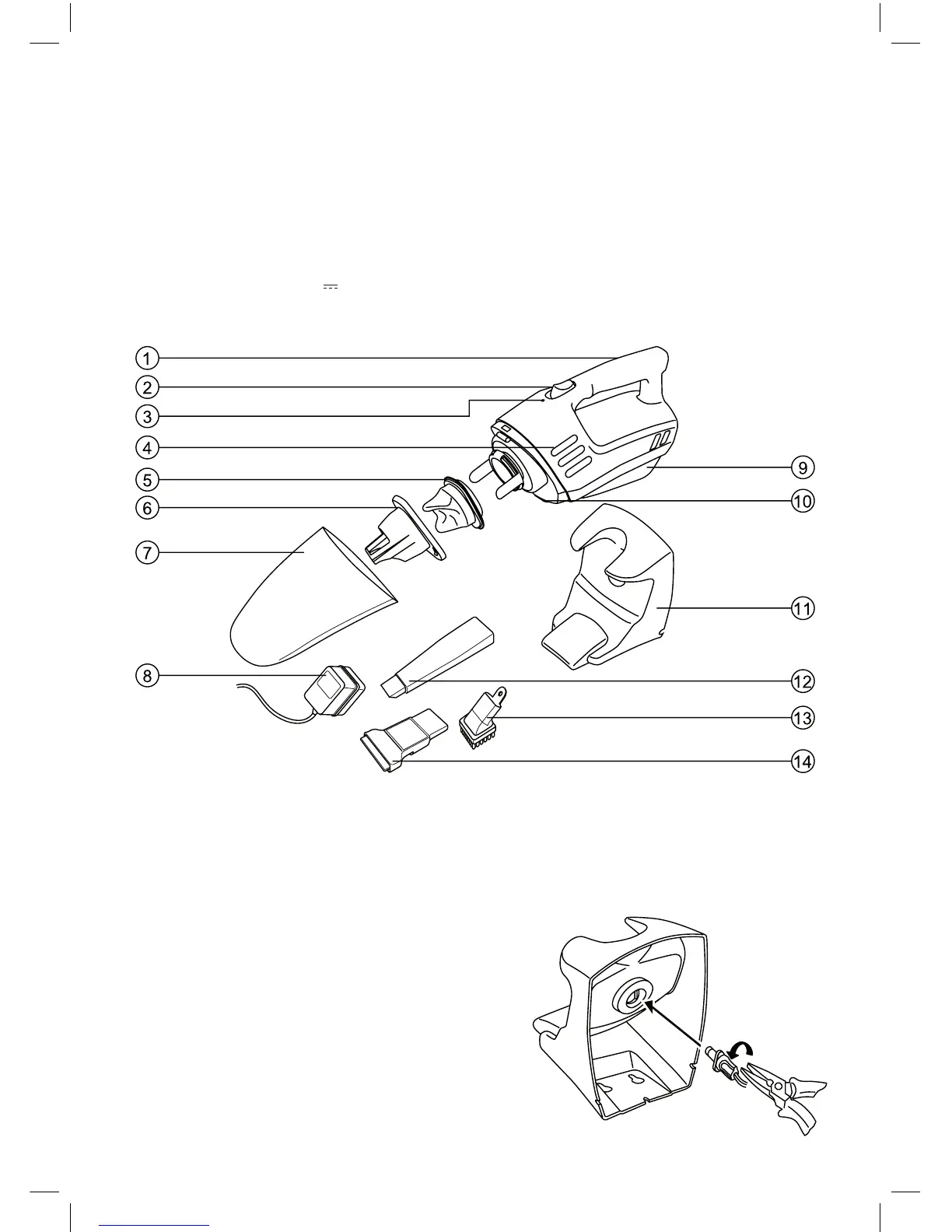

PARTS:
FITTING THE CHARGING BRACKET
Fit the adaptor plug into the charging bracket
and then turn 90˚ to lock it in position. This charging
bracket is ready for storing and recharging now.
1. HANDLE
2. ON/OFF SWITCH
3. CHARGING INDICATOR
4. MAIN UNIT
5. FILTER
6. LIQUID SEPARATOR
7. NOZZLE
8. ADAPTOR
9. BATTERY COVER
10. NOZZLE RELEASE BUTTON (BOTTOM OF THE UNIT)
11. CHARGING BRACKET
12. CREVICE TOOL
13. CARPET BRUSH
14. SQUEEGEE
