CEN-TECH 60725 - Parts List and Diagram; Component Identification; Assembly Diagram

Page 7For technical questions, please call 1-800-444-3353.Item 60725
Part Description
1 Front Cover
2 Rear Cover
3 Battery Cover
4 Trigger
5 °F/°C Button
6 LCD
7 Back Light
8 Layered Block
9 PCB
10 Switch
Part Description
11 Front Mass
12 Lens
13 RMASS
14 TPI RMASS
15 Thermopile
16 Laser Holder -B
17 Laser Module
18 Negative Plate
19 Positive Plate
20 P-N Plate
Part Description
21 Tapping Screw
(M 1.7*5L)
22 Machine Screw
(M 2* 4L)
23 Tapping Screw
(M 1.7*4L)
24 Tapping Screw
(M 2.3*8L)
25 Battery (not included)
26 Pad

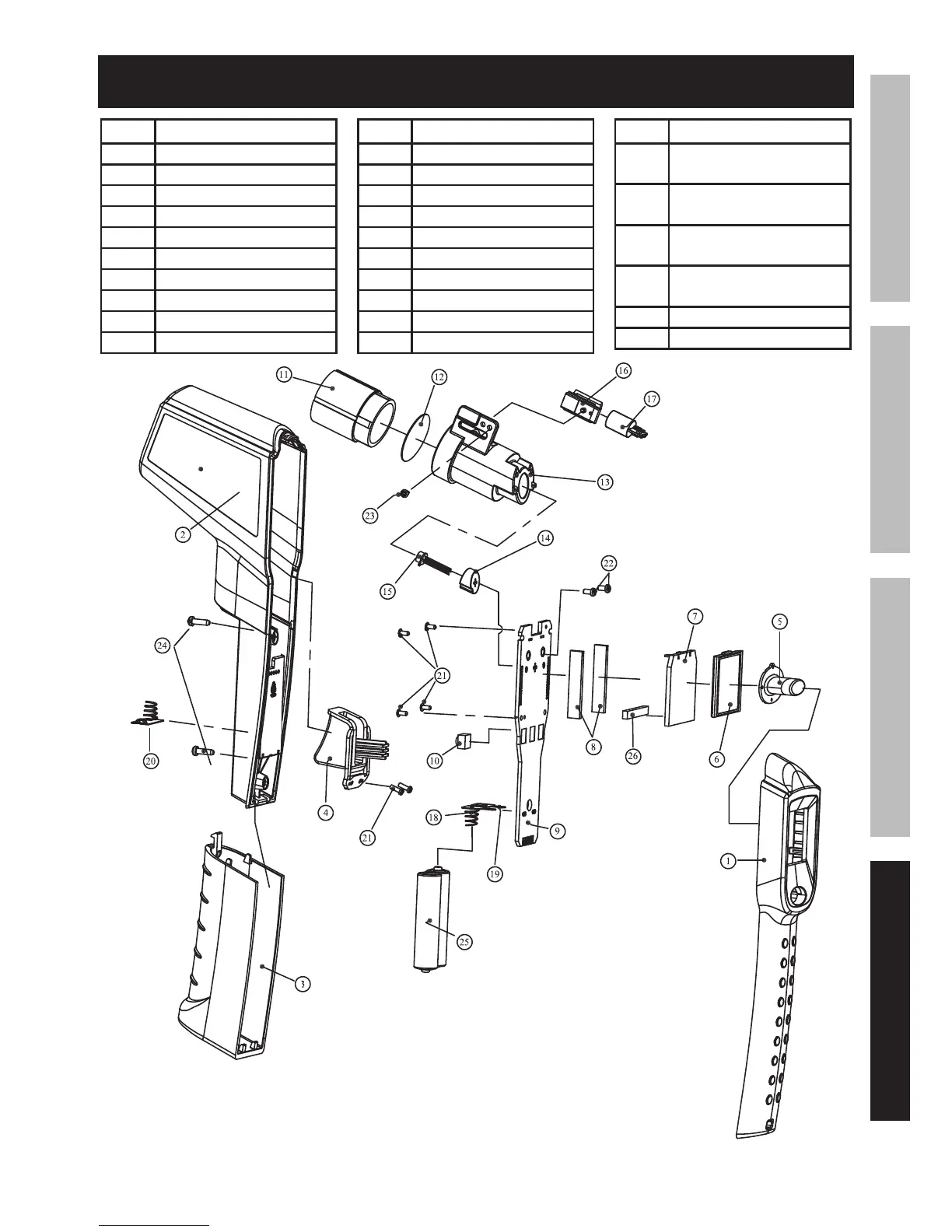

Parts List and Diagram
