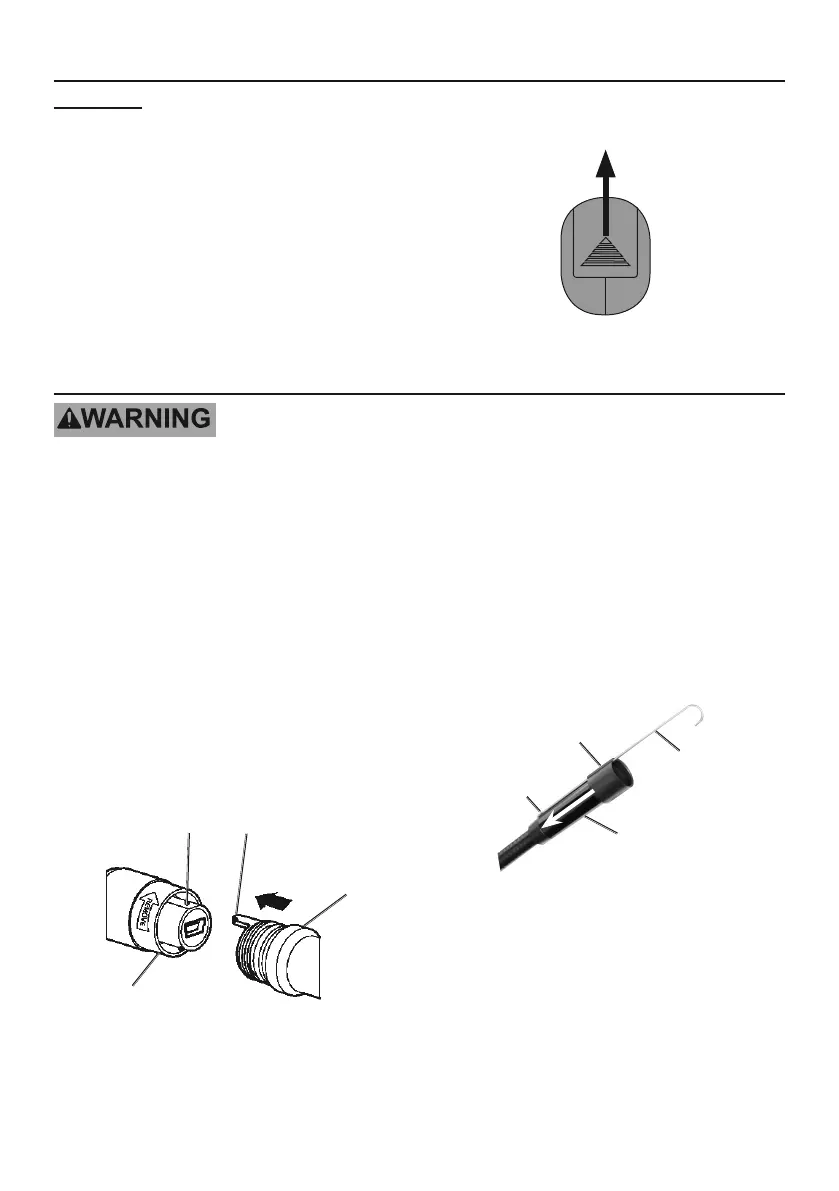

Page 7For technical questions, please call 1-888-866-5797.Item 61839
Installing Batteries
CAUTION: Position batteries in
proper polarity and do not install
batteries of different types, charge
levels, or capacities together.
The battery compartment is located
on the bottom of the handle.
1. Slide the Battery Cover off, remove
the battery case, insert four AA
batteries (not included).
2. Slide the battery case back in and
replace the Battery Cover.
Figure B: Battery Cover
Tool Set Up
TO PREVENT SERIOUS INJURY FROM ELECTRICAL SHOCK:
Make sure that the Camera is OFF before performing any procedure in this section.
1. Connecting Cable:
a. Carefully push Cable’s key
into Cable Connector’s slot.
b. Turn Cable Connector
counterclockwise until the
Cable and Cable Connector
are securely attached.
2. Disconnecting Cable:
a. Turn Cable Connector clockwise
until the Cable and Cable
Connector are detached.
b. Remove Cable.
Cable
Key
Slot
Cable
Connector
Figure C
3. Attaching Accessories:
a. Hold the accessory against
the Imager Head, placing
the Hook in the hole.
b. Match the slot on the Sleeve
to the accessory, then slide the
Sleeve down the Imager Head
until it covers the Hook.
Imager
Head
Accessory
Sleeve
Hook
Figure D
4. Connecting to External
Monitor with RCA Cable:
Plug one end into the RCA Video Out
Port on Camera, then plug other end
into RCA Video In Port on monitor.
To Next Page
