Page 7For technical questions, please call 1-888-866-5797.Item 62359

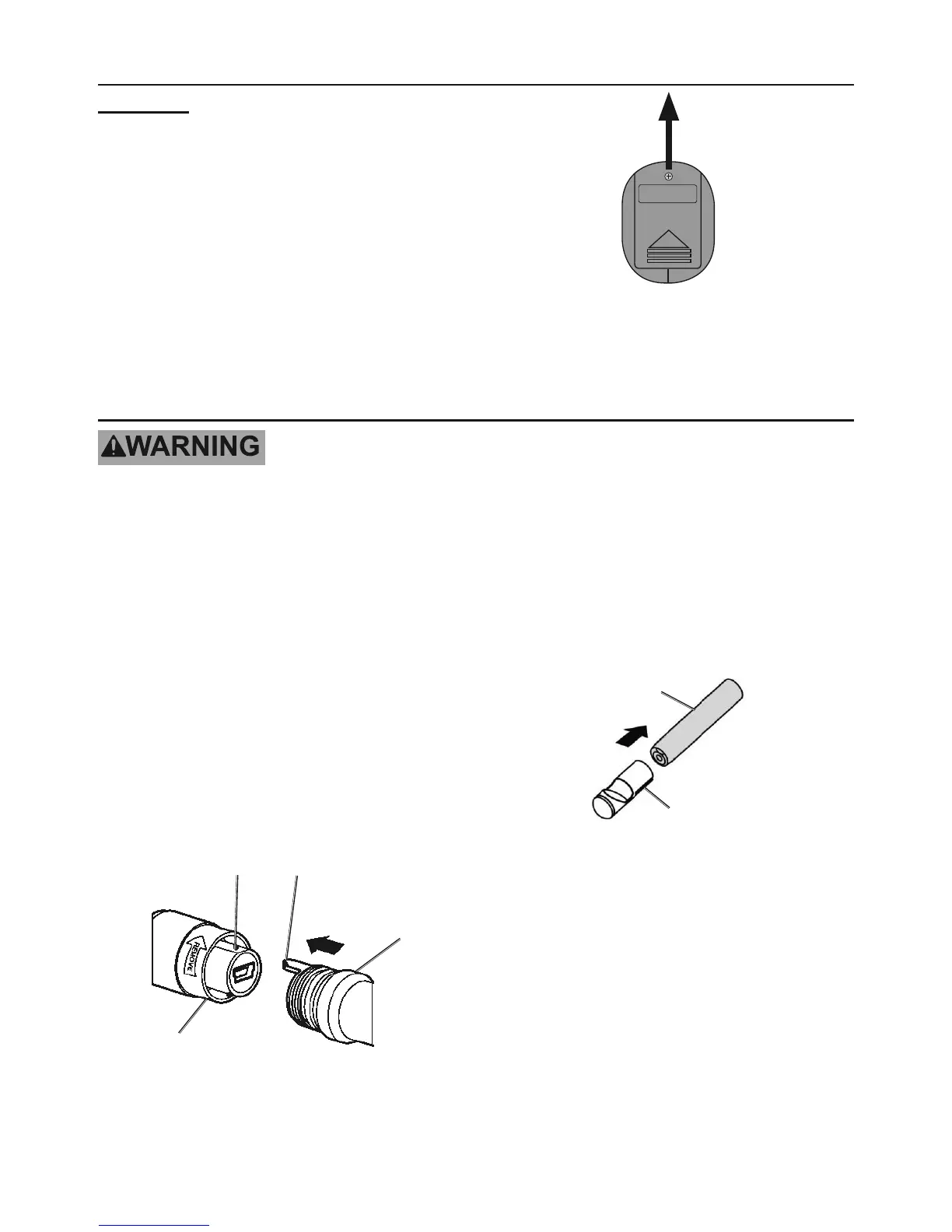

Installing Batteries
CAUTION: Position batteries in
proper polarity and do not install
batteries of different types, charge
levels, or capacities together.
The battery compartment is located
on the bottom of the handle.
1. Remove the screw and slide the Battery
Cover off, remove the battery case,
insert four AA batteries (not included).
2. Slide the battery case back in, replace
the Battery Cover and the screw.
Figure B: Battery Cover
Tool Set Up
TO PREVENT SERIOUS INJURY FROM ELECTRICAL SHOCK:
Make sure that the Camera is OFF before performing any procedure in this section.
1. Connecting Cable:
a. Carefully push Cable’s key
into Cable Connector’s slot.
b. Turn Cable Connector
counterclockwise until the
Cable and Cable Connector
are securely attached.
2. Disconnecting Cable:
a. Turn Cable Connector clockwise
until the Cable and Cable
Connector are detached.
b. Remove Cable.
Cable
Key
Slot
Cable
Connector
Figure C
3. Attaching Accessories:
a. Carefully slide the accessory
onto the Imager Head.
b. To remove accessory, carefully slide
the accessory off the Imager Head.
Imager
Head
Accessory
Figure D
4. Connecting to External
Monitor with RCA Cable:
Plug one end into the RCA Video Out
Port on Camera, then plug other end
into RCA Video In Port on monitor.
To Next Page
