SKU 69096 For replacement parts, please call 1-800-444-3353. Page 5
4. Be careful not
to apply voltage
to the Test Leads
when they are
connected
to the COM
(Bottom) and
VΩmA (Center)
Jacks and the
Multimeter is in
an Ohms testing
setting. Damage
can occur to the multimeter
or the fuse may blow.
5. Do not switch between
testing modes with the
multimeter connected to a
circuit.
AC Voltage Measurements
Measure AC conductors carrying up to 750 VAC, 45-450 Hz.
1. Turn the Range Selector Switch to 750 ACV setting.
Always start with the highest range if the voltage is unknown.
2. Plug the red lead into the VΩmA (Center) Jack. Plug the black lead into
the COM (Bottom) Jack. Switch the Multimeter ON.
3. Carefully touch the exposed conductors with the tips of the probes to measure
the voltage (not amperes).
4. Read measurement.
If the voltage is less than 200 volts, set the Range Selector Switch to the
lower range.
5. When testing is complete, remove Test Leads and store with multimeter.
DC Voltage Measurements
Measure DC conductors carrying up to 1000 VDC.
1. Turn the Range Selector Switch to 1000 DCV setting.
2. Follow the directions above under “AC Voltage Measurements”, only use
the DC settings instead.

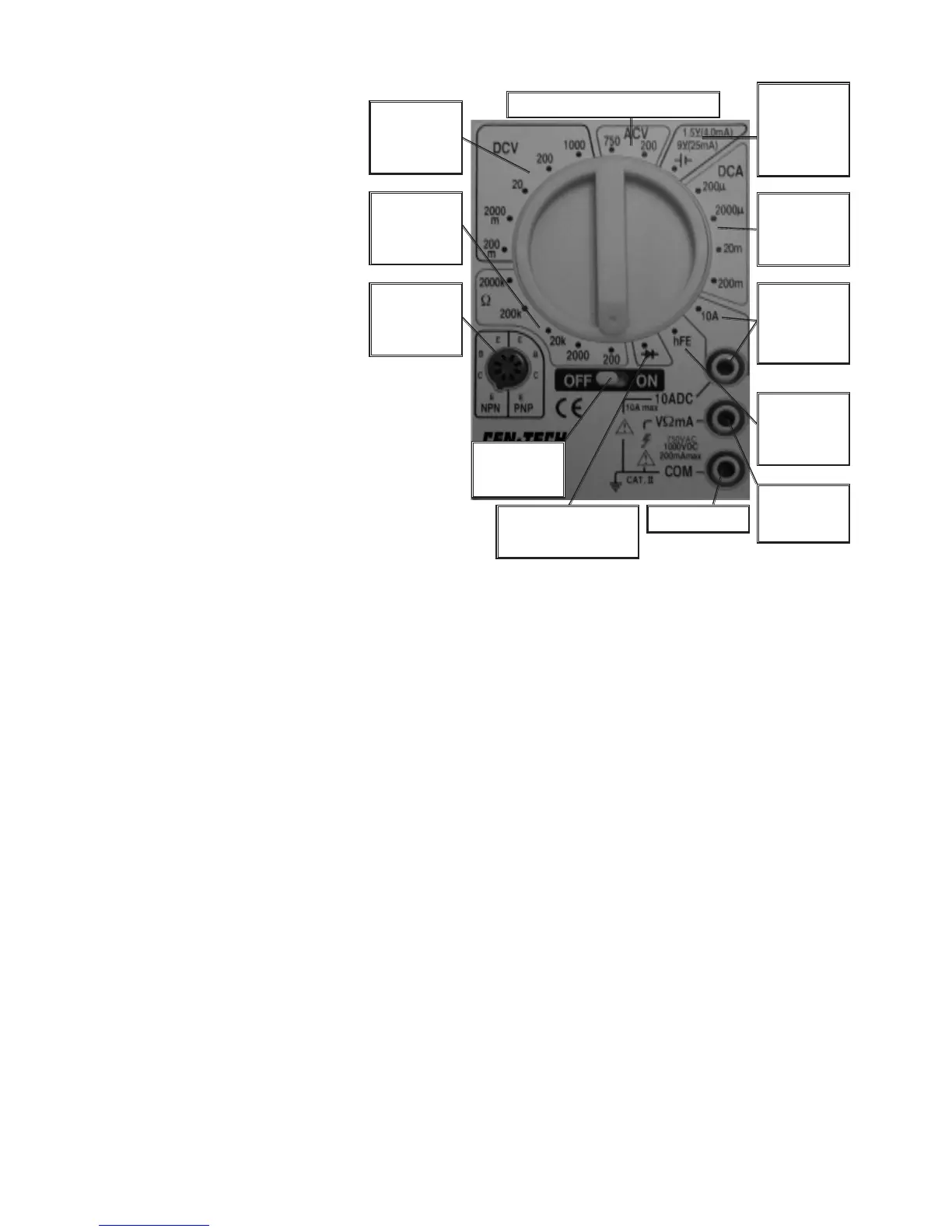

COM Jack
Volt/Ohm/
mA Jack
DC AMP
Selection
Area
DC Volt
Selection
Area
Ohm
Selection
Area
Transistor
Selection
Area
ON/OFF
Switch
Control Layout
10A
Selection
Area/Jack
AC Volt Selection Area
Transistor
/hFE Jack
Diode
Selection Area
Battery
Test
Selection
Area
To Next Page
