CENTR 1 - Step 5 Assembly

Pg. 15V07122023-C5

NONOTE TE LOLOCACATIONTION
OFOF T THESE HOLESHESE HOLES..
NOTE LOCATION
OF THESE HOLES.
LEAVE THESE BOLTS
LOOSE UNTIL STEP 10.
8
25
26
51
48

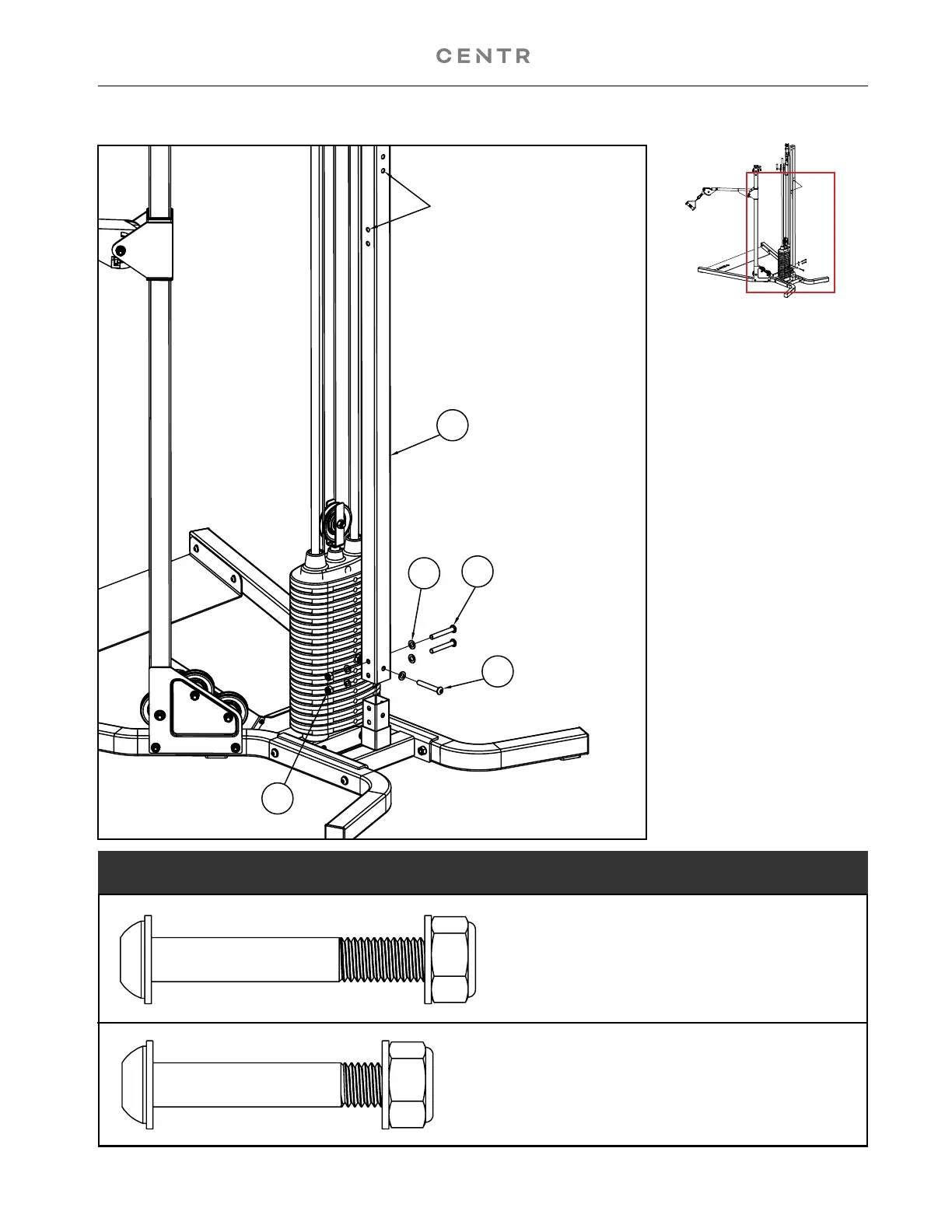

(51) BOLT, M10 X 1.5 X 65, SH, BZ, .
(25) WASHER, FLAT, 11 X 20 X 2, BZ, .
(26) NUT, M10 X 1.5, LOCK, BZ, .
(48) BOLT, M10 X 1.5 X 75, SH, BZ, .
(25) WASHER, FLAT, 11 X 20 X 2, BZ, .
(26) NUT, M10 X 1.5, LOCK, BZ,.
HARDWARE REQUIRED:
