Operation (continued)

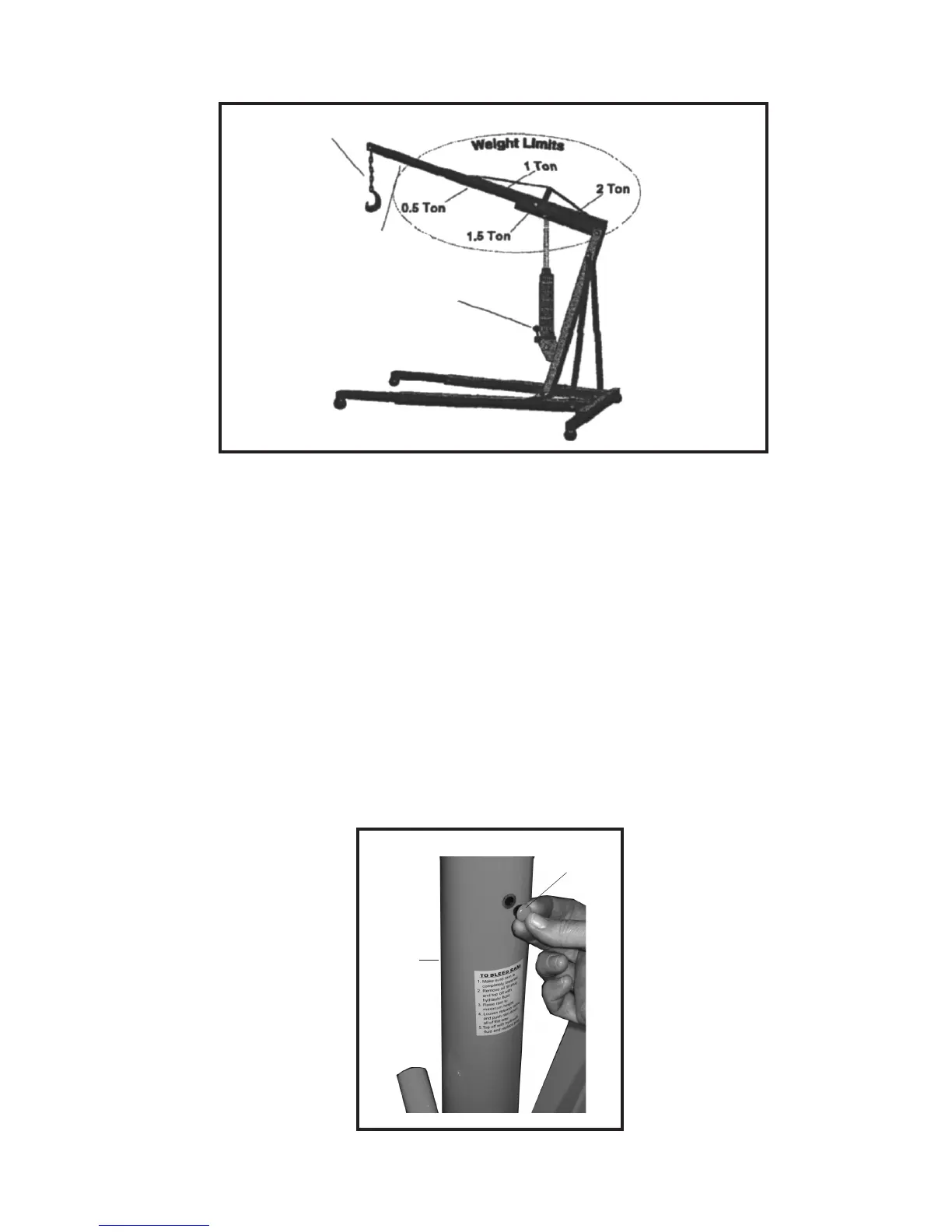

Hook & Chain (12)
Boom Extension (11)
Insert Handle Here
FIGURE 6
Maintenance
1. Check all of the mounting hardware before each use and make sure it is secure before
using the Shop Crane. Especially check to make sure all 4 Extensions are extended
and secured at the maximum safe length before use.
2. Make sure the Hook & Chain are clean of dirt, grease, or debris.
3. If the Jack (10) is not performing to satisfaction, there may be air in the hydraulic system.
To purge the system of air, follow these instructions. See FIGURE 7 below.
a. Make sure the Ram (22a) is completely lowered.
b. Remove the Oil Fill Plug and top off with Hydraulic Fluid.
c. Raise the Ram (22a) to maximum height.
d. Loosen the Release Valve (4a) and push the Ram (22) all the way down.
e. Top off with Hydraulic Fluid and replace the plug. Repeat if necessary.
FIGURE 7
Jack
Oil Tank
(20a)
Oil Fill Plug
