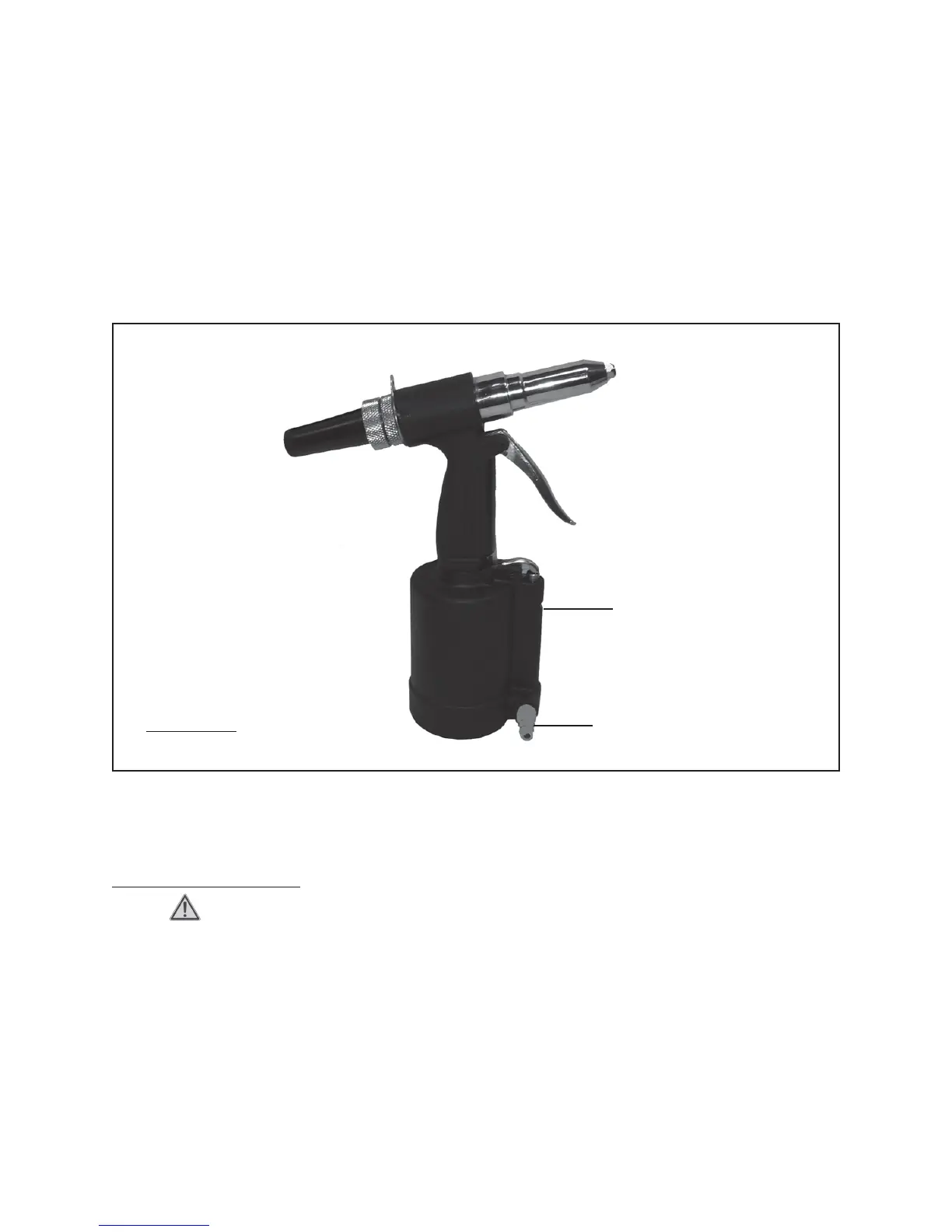

QUICK CONNECTOR
(53)
AIR CYLINDER
(29)
FIGURE B
2. Prior to use, the Riveter requires the attachment of the Quick Connector (53) to its
Air Cylinder (29). To do so, make sure the screen
Air Filter
is properly seated in the
Air Cylinder. Wrap approximately 3” of pipe thread seal tape (not included) around
the male threads of the Quick Connector. Then, firmly tighten the Quick Connector
into the Air Cylinder. (See Figure B.)
To Prime The Riveter:
1. WARNING! Make sure the Riveter is disconnected from its air supply hose
prior to performing any maintenance, service, or changing accessories.
2. To prime the Riveter, use the Spanner (36) to unscrew and remove the Cylinder
Cap (33) from the bottom of the Riveter. (See Figure C, next page.)
3. Use a pair of pliers (not included) to remove the Piston Assembly (30 thru 33) from
the Air Cylinder (29). (See Figure C.)
4. Hold the Air Cylinder (29) upside down, and pour in hydraulic oil (not included).
The fill level should only reach the top of the Frame (15). (See Figure C.)
